Description

Price

1

SEMI-DBL SEAT ASSEMBLY

(537-24770-00-00)

Unavailable

2

COVER, SM-DBL SEAT

(537-24771-00-00)

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

FLAP

(483-21621-00-00)

Unavailable

7

WASHER, SPECIAL 1

(1G8-21615-00-00)

Unavailable

8

SCREW, PAN

98507-06014-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

BRACKET, SEAT

2Y0-24748-00-00

Unavailable

11

BRACKET, SEAT

(509-24738-02-00)

Unavailable

12

BOLT (661)

97013-06012-00

$5.60

13

WASHER, SPRING

92995-06100-00

Unavailable

14

DAMPER, SEAT

509-24724-00-00

$10.99

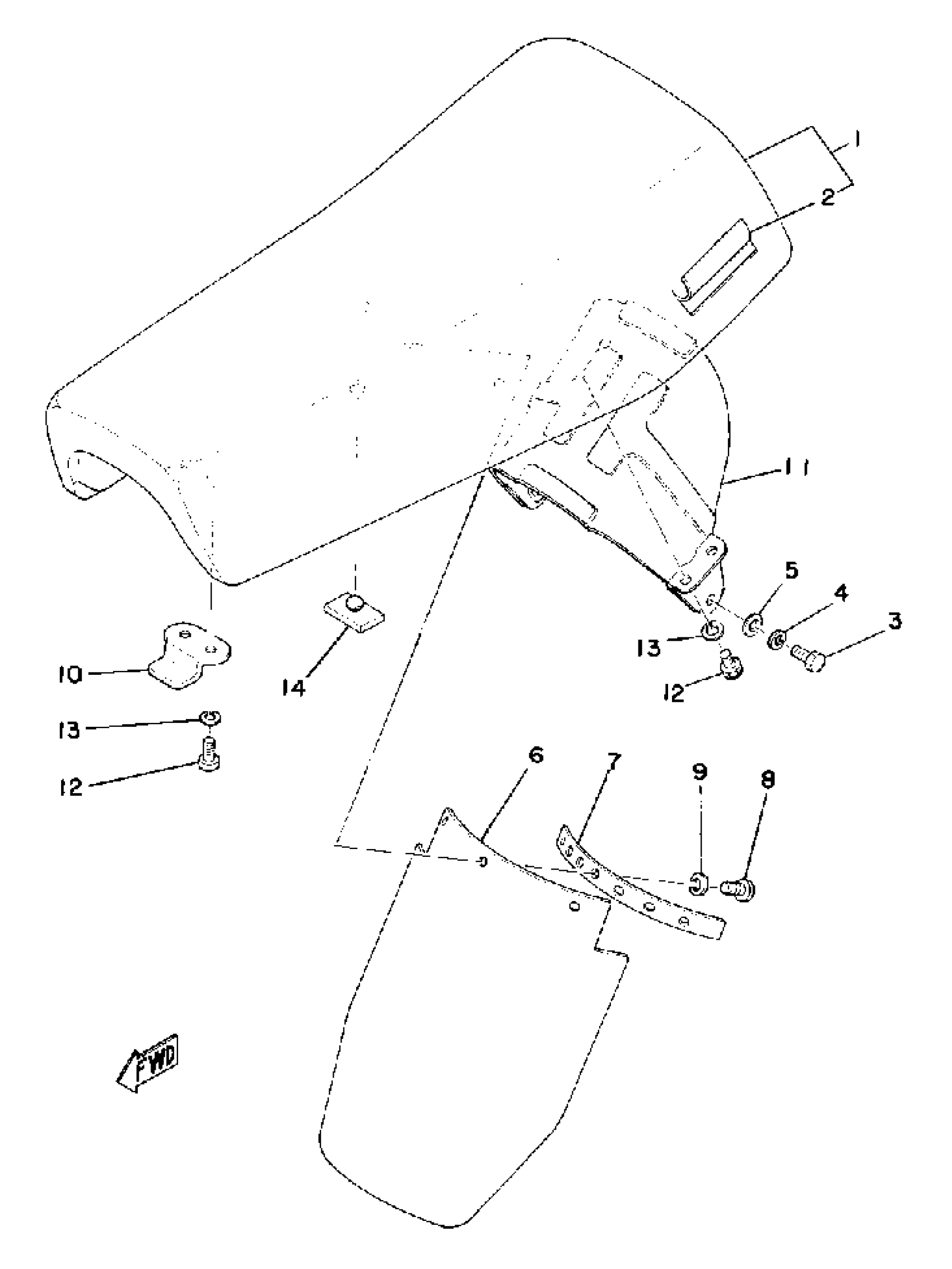

Yamaha YZ175C (YZ175C) 1976 SEAT Diagram

SEMI-DBL SEAT ASSEMBLY

COVER, SM-DBL SEAT

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLAIN (646)

FLAP

WASHER, SPECIAL 1

SCREW, PAN

WASHER, SPRING

BRACKET, SEAT

BRACKET, SEAT

BOLT (661)

WASHER, SPRING

DAMPER, SEAT
