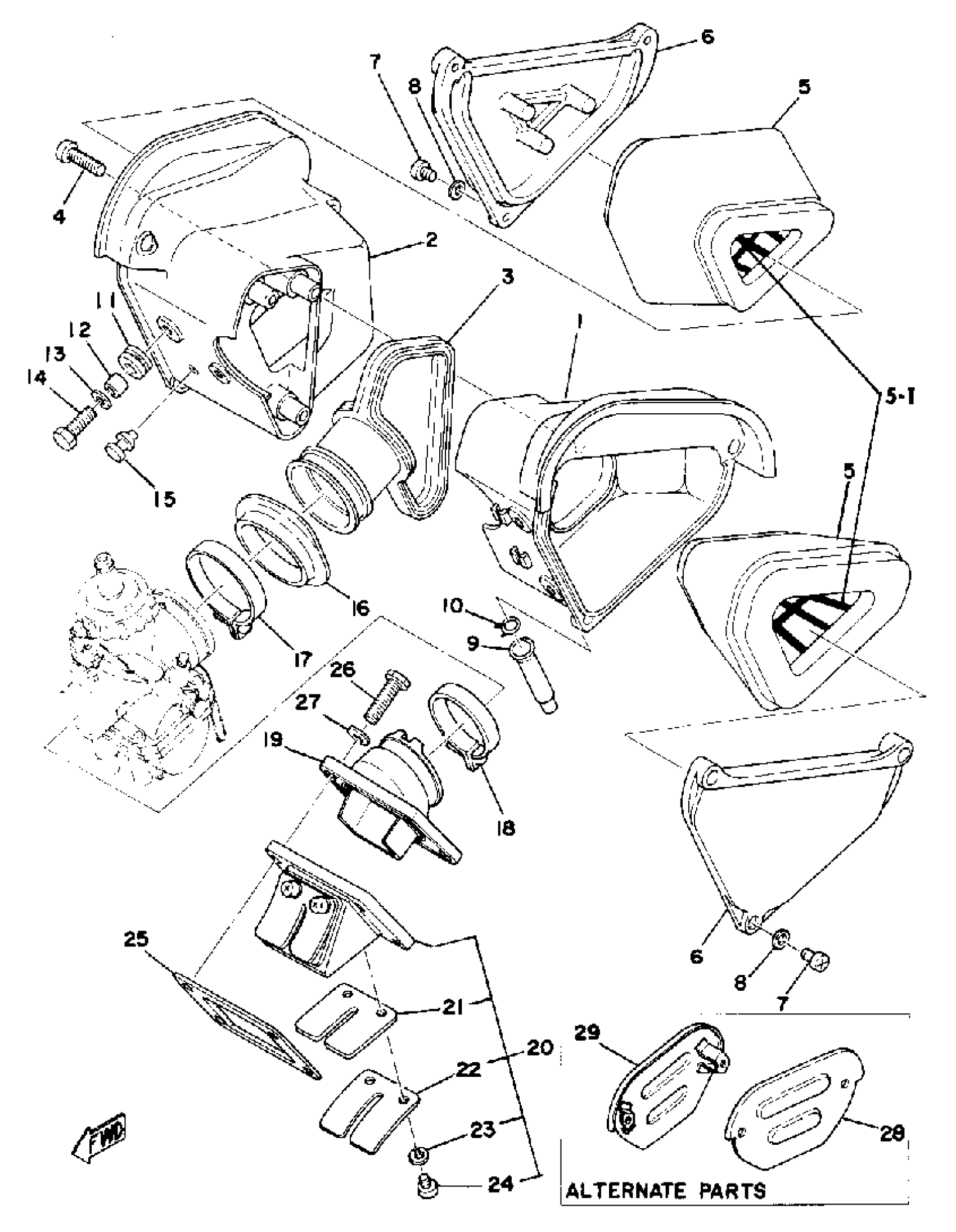

Yamaha YZ175C (YZ175C) 1976 INTAKE Diagram
#
Description
Price
1
CASE, AIR CLEANER 1
(2K5-14411-00-00)
Unavailable
2
CASE, AIR CLEANER 2
(2K5-14421-00-00)
Unavailable
3
JOINT, AIR CLEANER 1
1G8-14453-00-00
Unavailable
4
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
5
ELEMENT, AIR CLNR (537-14450-00)
537-14451-00-00
Unavailable
6
CAP, CLEANER CASE 1
537-14412-00-00
Unavailable
9
SEAL (509-14457-01)
509-14457-00-00
Unavailable
12
COLLAR 437216330000
90387-07391-00
Unavailable
13
WASHER, SPRING
92995-06100-00
Unavailable
15
GROMMET
(90480-05169-00)
Unavailable
16
COVER 1
537-14417-00-00
Unavailable
17
HOSE CLAMP ASSY
90450-64004-00
Unavailable
18
CLAMP HOSE 278144550000
90460-49058-00
Unavailable
19
JOINT, CARBURETOR
(1G8-13565-01-00)
Unavailable
20
REED VALVE ASSY
10V-13610-01-00
Unavailable
21
REED VALVE 1
10V-13613-01-00
Unavailable
22
. STOPPER, REED VALVE (10V-12616-01-00)
1UA-13616-00-00
Unavailable
23
WASHER, SPRING
92990-03100-00
Unavailable
24
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
25
GASKET, VALVE SEAT
3TT-13621-00-00
Unavailable
28
CAP, CLEANER CASE 1
(1J4-14412-10-00)
Unavailable
29
CAP, CLEANER CASE 2
(1J4-14422-10-00)
Unavailable
