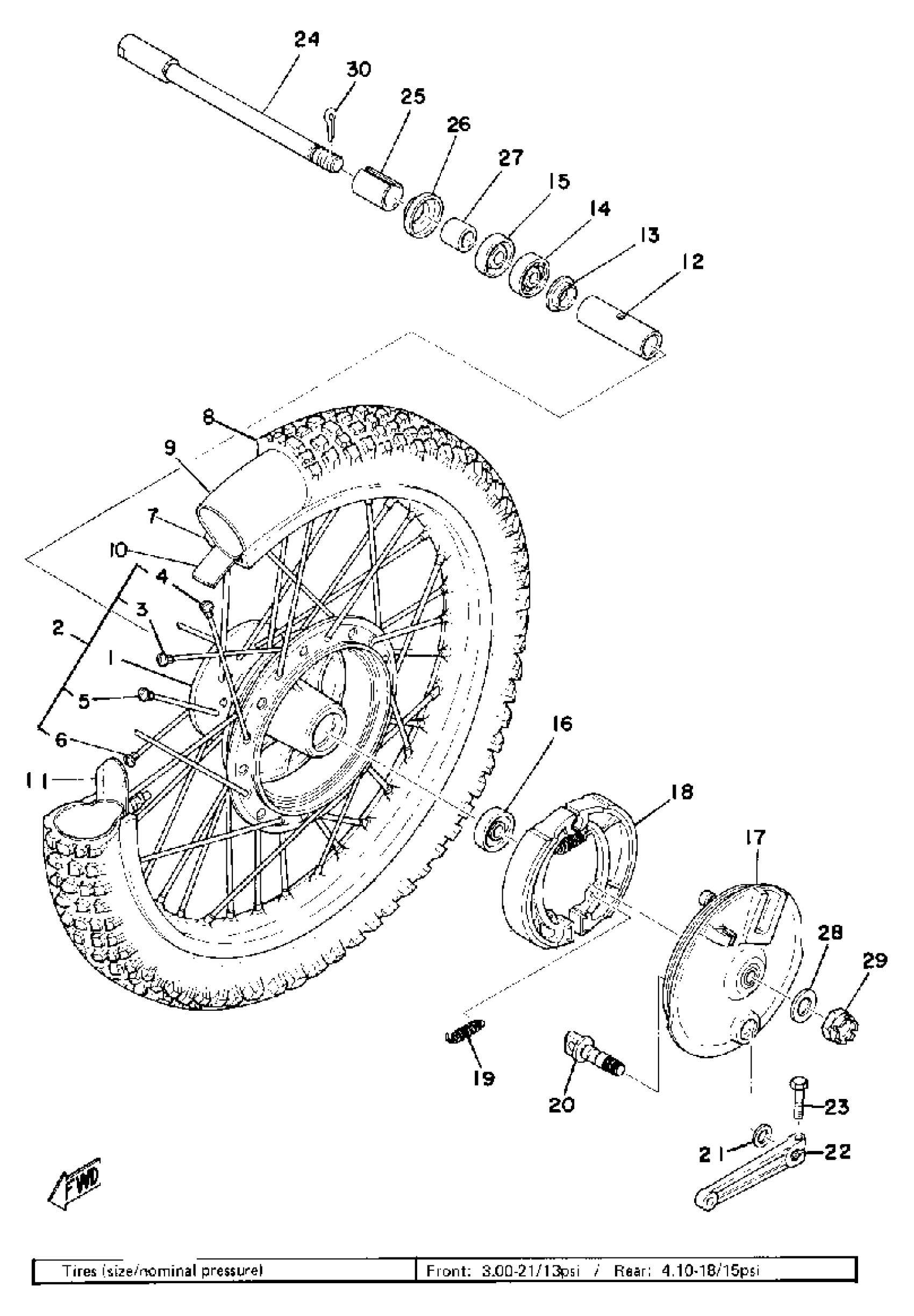

Yamaha YZ175C (YZ175C) 1976 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

(322-25111-00-98)

Unavailable

2

SPOKE SET, FRONT

(322-25104-01-00)

Unavailable

3

SPOKE SET, INNER 2

(322-25179-90-00)

Unavailable

4

SPOKE SET, INNER 2

(322-25179-90-00)

Unavailable

5

SPOKE SET, INNER 2

(322-25179-90-00)

Unavailable

6

COLLAR (322-25183-00)

90387-15418-00

Unavailable

7

RIM 1.60X21

94416-21326-00

Unavailable

8

TIRE FRONT

(94116-21198-00)

Unavailable

9

TUBE, FRONT (2A6)

94227-21123-00

$47.99

10

BAND, RIM

(94327-21024-00)

Unavailable

11

SPACER, BEAD

1T1-25194-00-00

Unavailable

12

SPACER

90560-15116-00

Unavailable

13

FLANGE, SPACER

146-25116-00-00

$8.99

14

BRG, R-B (7H4)

93306-20211-00

$25.99

15

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

16

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

Unavailable

17

PLATE, BRAKE SHOE

(483-25121-00-98)

Unavailable

18

BRAKE SHOE KIT

322-W253A-10-00

Unavailable

19

SPRING (5T9)

90506-17328-00

Unavailable

20

CAMSHAFT

23X-25151-00-00

Unavailable

21

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

22

LEVER, CAMSHAFT 1

322-25155-00-00

Unavailable

23

BOLT, HEXAGON

97017-06025-00

Unavailable

24

AXLE, WHEEL

275-25181-00-00

Unavailable

25

COLLAR (322-25186-00)

90387-15116-00

Unavailable

26

COVER, HUB DUST

322-25118-00-00

Unavailable

27

COLLAR (322-25183-00)

90387-15418-00

Unavailable

28

WASHER, PLAIN

92990-14200-00

Unavailable

29

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

30

PIN, COTTER

91490-30030-00

Unavailable
