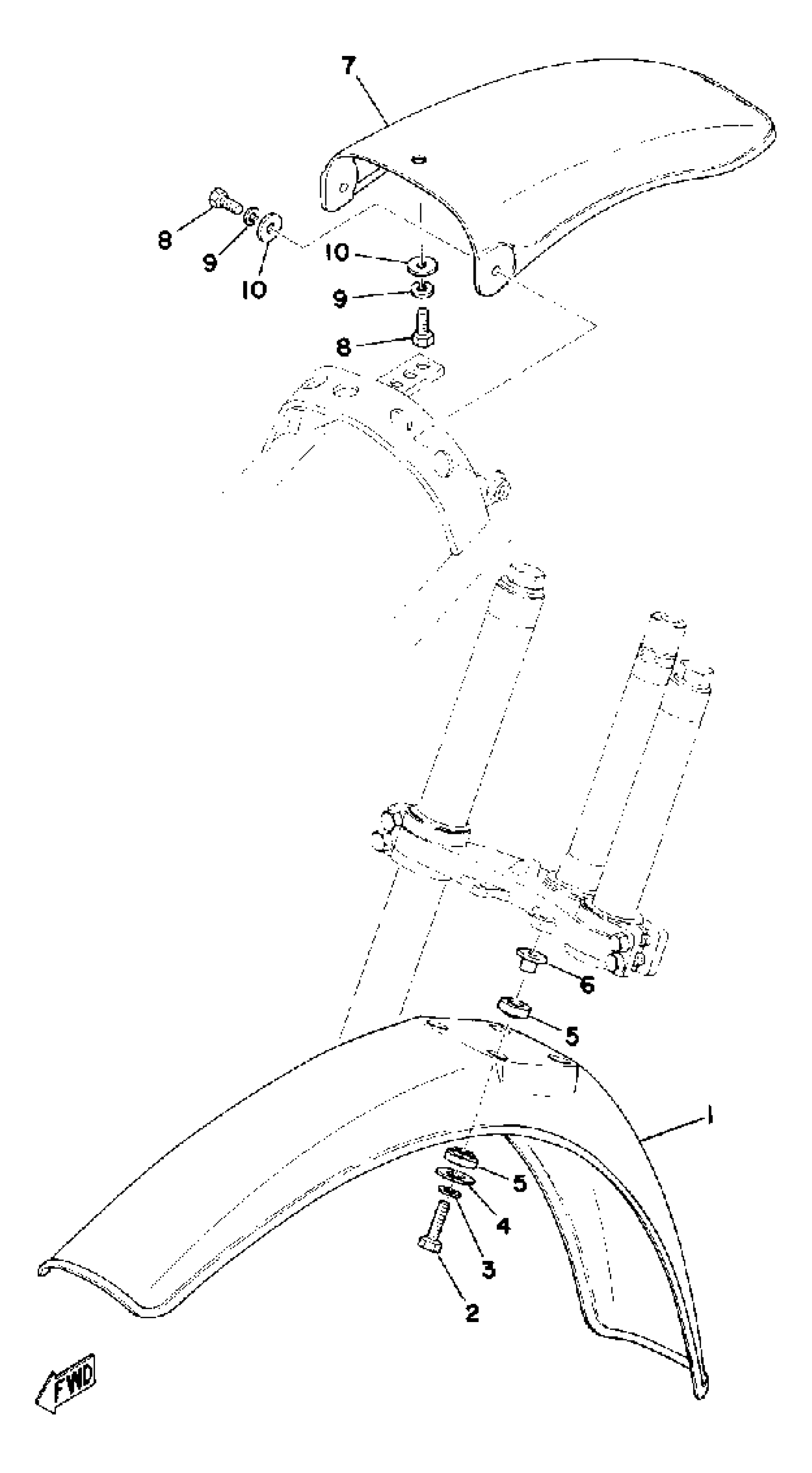

Yamaha YZ175C (YZ175C) 1976 FRONT FENDER - REAR FENDER Diagram

#

Description

Price

1

FENDER, FRONT

453-21511-01-00

Unavailable

2

BOLT, HEXAGON

97017-06030-00

$2.80

3

WASHER, SPRING

92995-06100-00

$2.95

4

WASHER, PLATE

90201-06380-00

$0.54

5

GROMMET

90480-14198-00

$7.10

6

COLLAR

90387-06158-00

$5.75

7

FENDER, REAR

(537-21611-00-00)

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

9

WASHER, SPRING

92995-06100-00

$2.95

10

WASHER, PLATE

90201-06380-00

$0.54
