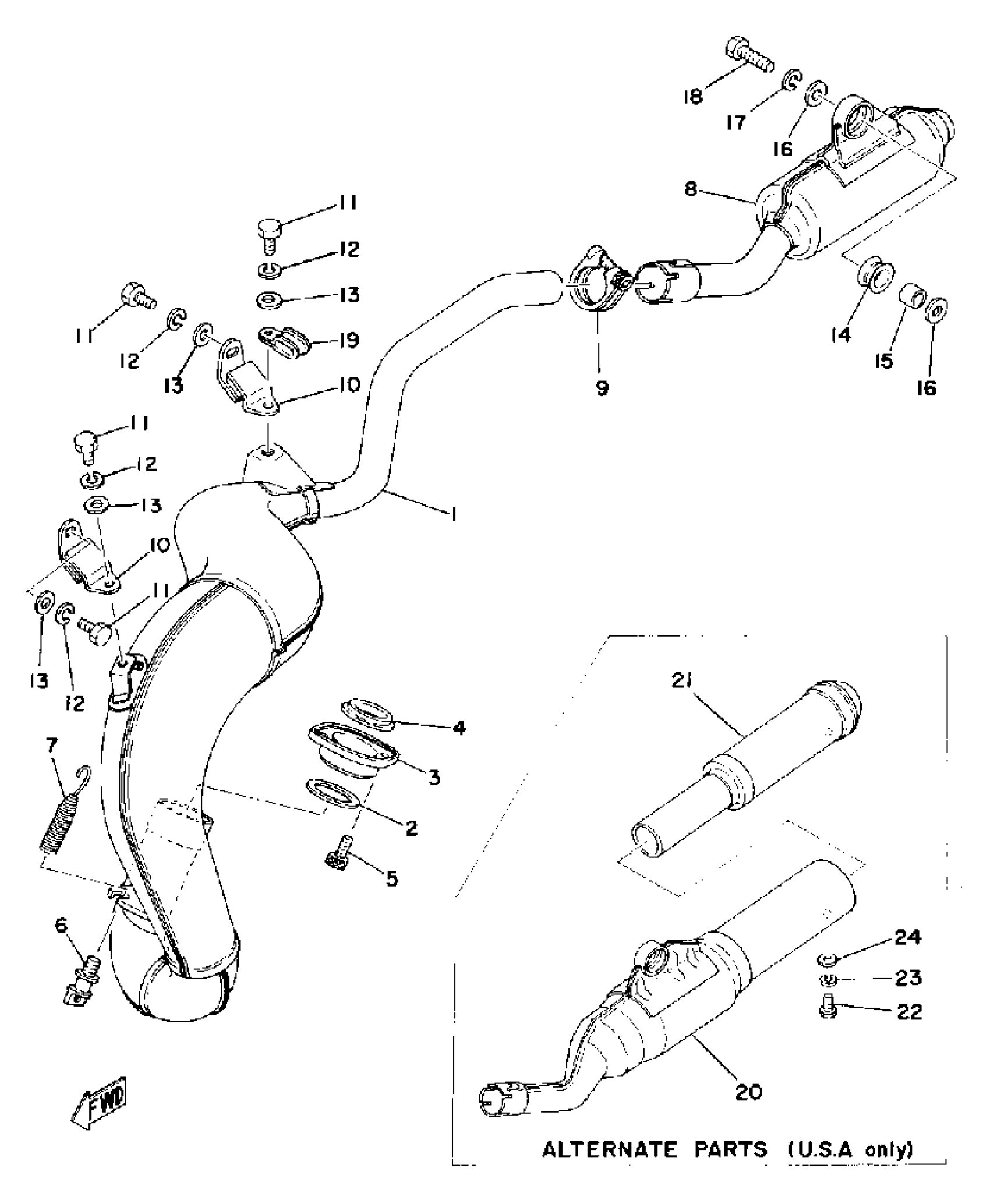

Yamaha YZ175C (YZ175C) 1976 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(1L8-14610-00-00)

Unavailable

2

GASKET

248-14623-10-00

$7.99

3

NUT, RING

1L8-14612-00-00

Unavailable

4

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

5

BOLT,SOCKET

91317-06016-00

$1.25

6

BOLT, HOOK

409-14684-00-00

Unavailable

7

SPRING,TENSION

90507-20012-00

Unavailable

8

SILENCER, EXHAUST (1G8-14753-00)

1G8-14753-01-00

Unavailable

9

BAND, SILENCER

537-14788-00-00

Unavailable

10

STAY, MUFFLER 1

537-14771-01-00

Unavailable

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLATE 8087752500

90201-07081-00

$10.49

14

DAMPER

565-14747-00-00

Unavailable

15

COLLAR (437)

90387-08258-00

$10.49

16

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

BOLT, HEXAGON

97013-08030-00

Unavailable

19

CLAMP (6A4)

90461-06M01-00

Unavailable

20

SILENCER, EXHAUST

(1G8-14753-10-00)

Unavailable

21

PIPE, OUTLET

(1G8-14752-10-00)

Unavailable

22

BOLT (661)

97013-06012-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable
