Description

Price

1

IGNITION COIL ASSEMBLY

1L8-82310-10-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

PLUG CAP ASSEMBLY

294-82370-00-00

Unavailable

5

CDI MAGNETO ASSEMBLY

3V3-85500-10-00

Unavailable

6

INACTIVE PART NUMBER (509-85540-1)

3V3-85540-10-00

Unavailable

7

ROTOR ASSEMBLY

(401-85550-10-00)

Unavailable

8

BOLT, HEXAGON

97017-06020-00

$4.06

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

WASHER (8J0)

90202-06113-00

$4.72

12

CLAMP 363154850100

90462-05005-00

Unavailable

13

GROMMET

90480-20170-00

Unavailable

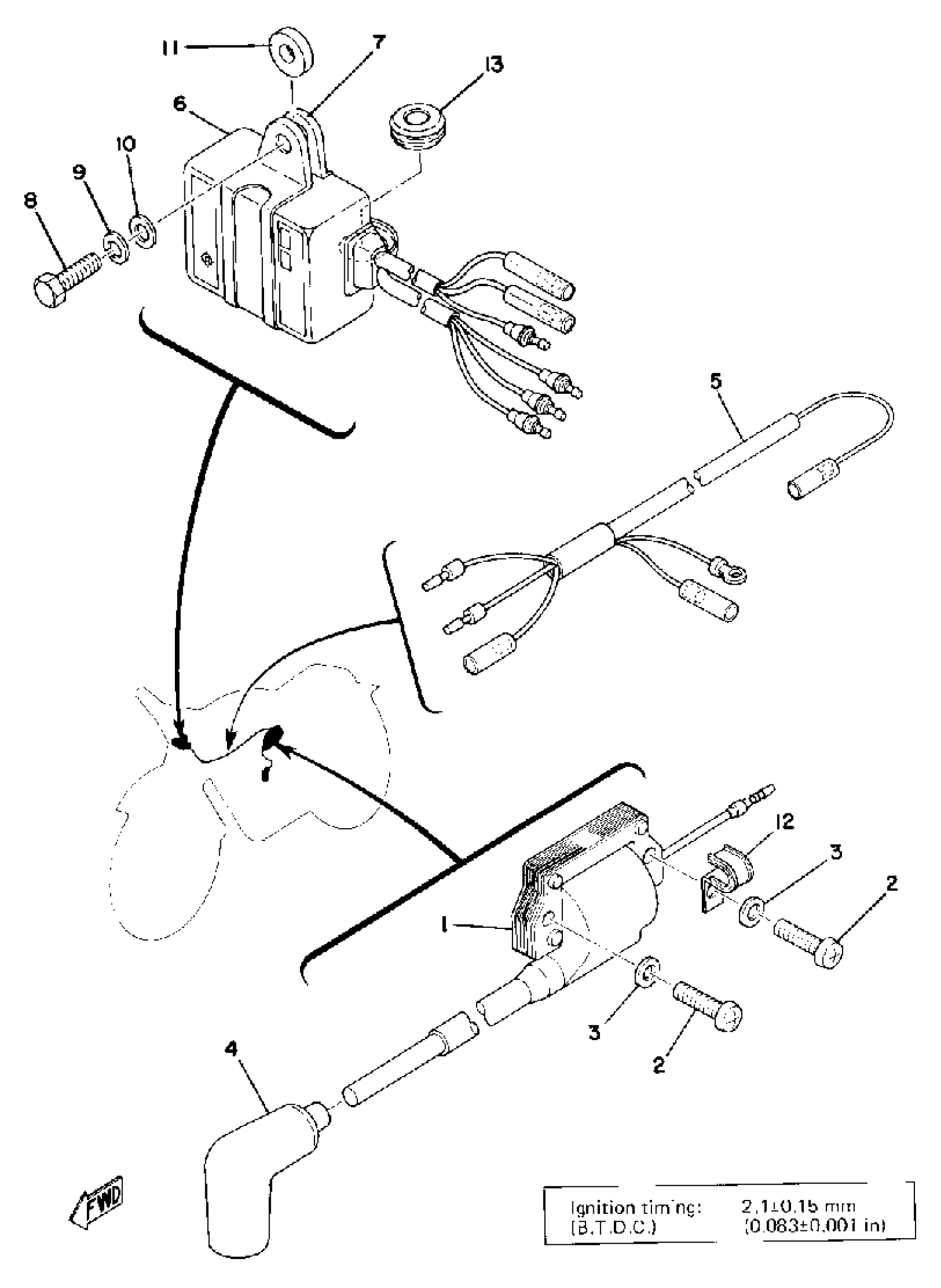

Yamaha YZ175C (YZ175C) 1976 ELECTRICAL Diagram

IGNITION COIL ASSEMBLY

SCREW, PAN HEAD (76T)

WASHER, PLAIN (646)

PLUG CAP ASSEMBLY

CDI MAGNETO ASSEMBLY

INACTIVE PART NUMBER (509-85540-1)

ROTOR ASSEMBLY

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLAIN (646)

WASHER (8J0)

CLAMP 363154850100

GROMMET
