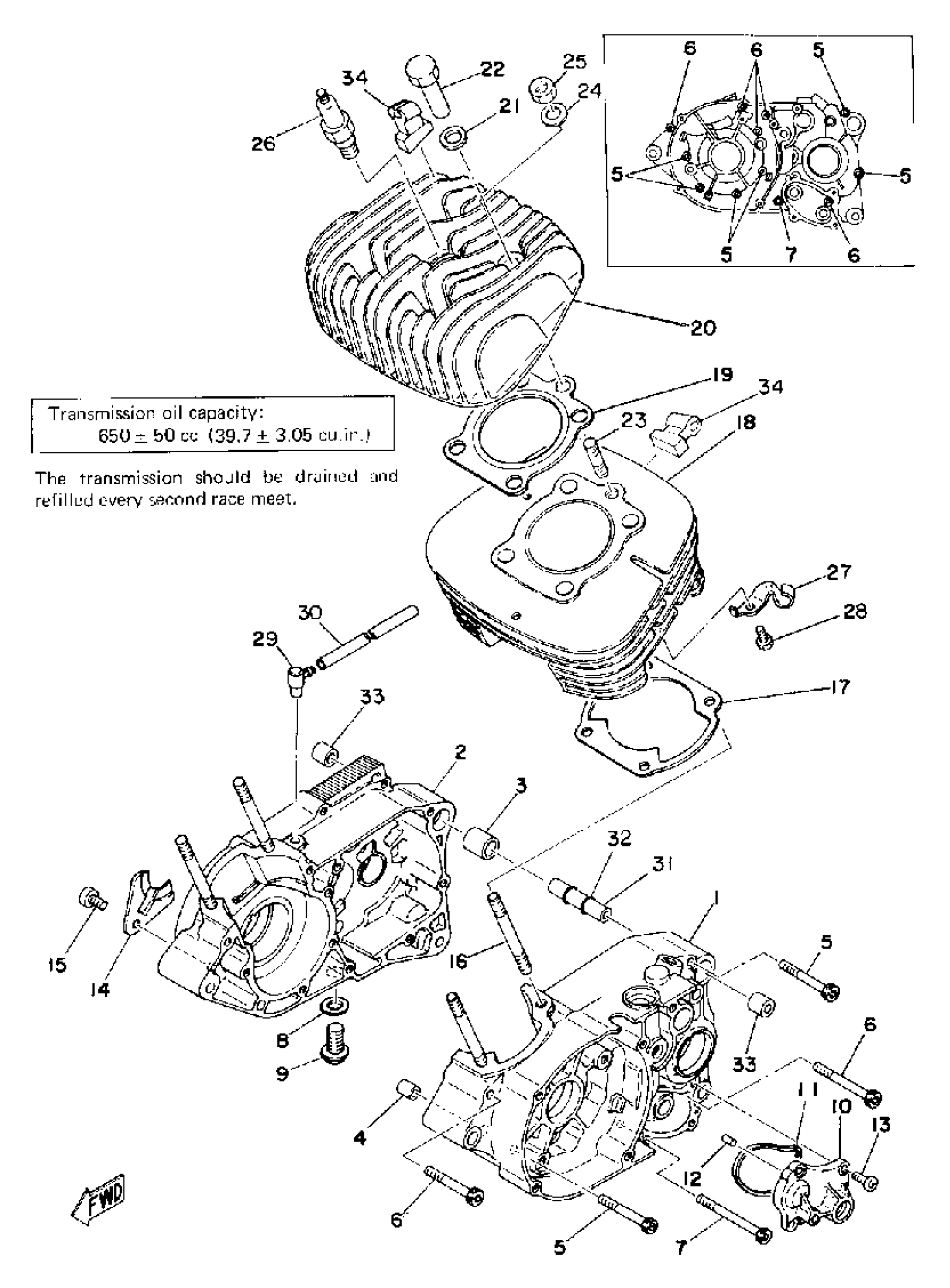

Yamaha YZ175C (YZ175C) 1976 CRANKCASE - CYLINDER Diagram

#

Description
Price

1

CRANKCASE 1

(1L8-15111-00-00)

Unavailable

2

CRANKCASE 2

(1L8-15121-00-00)

Unavailable

3

PIN, DOWEL

99530-20020-00

Unavailable

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

BOLT,SOCKET

91317-06050-00

$3.88

6

BOLT,SOCKET

91317-06060-00

$3.76

7

BOLT, SOCKET

91317-06070-00

$4.99

8

GASKET (3JD1)

90430-12207-00

$7.99

9

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

10

COVER, SHIFTER 1

401-15419-01-00

Unavailable

11

RING, RUBBER

401-15449-00-00

$29.99

12

PIN,DOWEL (603)

93603-12007-00

$2.55

13

SCREW, PAN

98507-06014-00

$8.49

14

HOLDER (R.H)

304-15128-00-00

$6.99

15

SCREW, PAN

98507-08010-00

$8.49

16

BOLT (248-11361-00)

90116-08064-00

Unavailable

17

GASKET,CYLINDER

1L8-11351-01-00

Unavailable

18

CYLINDER 1

(1L8-11311-00-00)

Unavailable

19

GASKET, CYLINDER HEAD 1

1L8-11181-01-00

Unavailable

20

HEAD, CYLINDER 1

(1L8-11111-00-00)

Unavailable

21

WASHER PLATE 278111750000

90201-12362-00

Unavailable

22

NUT (3V6)

90179-08303-00

Unavailable

23

BOLT STUD 363111790000

90116-08104-00

Unavailable

24

WASHER, PLATE (397)

90201-08100-00

Unavailable

25

NUT(6L2)

95333-08600-00

Unavailable

26

BR10EIX NGK SPLUG 4PK

BR1-0EIX0-00-00

Unavailable

27

HOLDER, CLUTCH CABLE

525-15441-01-00

Unavailable

28

BOLT (661)

97013-06012-00

Unavailable

29

BREATHER

583-15371-00-00

Unavailable

30

HOSE (L570)

90445-07MF1-00

Unavailable

31

SPACER, ENGINE MOUNT

401-15317-00-00

Unavailable

32

O-RING (P95)

93210-11073-00

Unavailable

33

DAMPER

90388-08003-00

Unavailable

34

ABSORBER 1

(537-11161-00-00)

Unavailable
