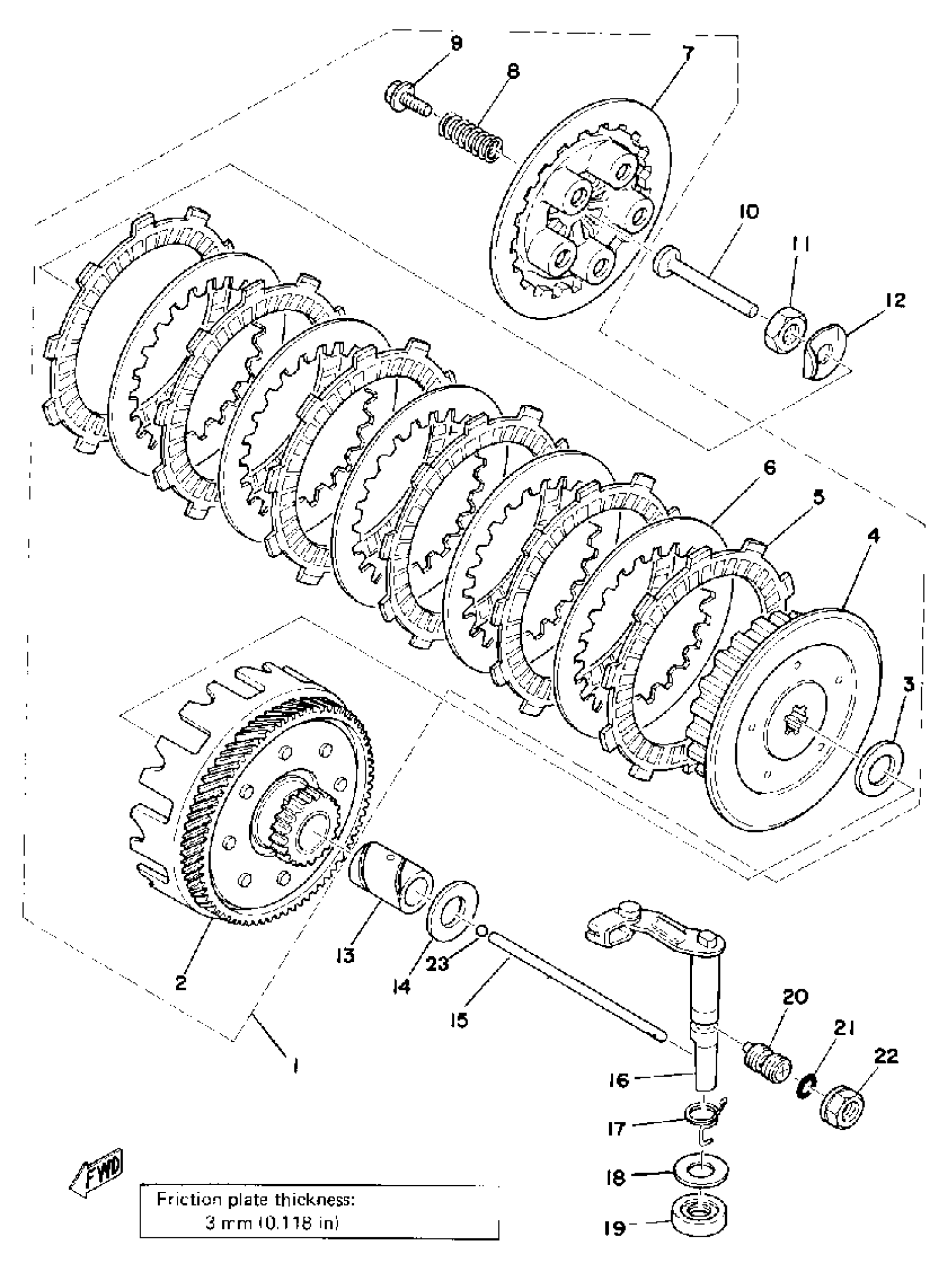

Yamaha YZ175C (YZ175C) 1976 CLUTCH Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(1G8-16301-00-00)

Unavailable

2

PRI DRIVEN GEAR

(1G8-16150-00-00)

Unavailable

3

PLATE, THRUST

122-16164-00-00

$7.99

4

. BOSS, CLUTCH

1G8-16371-00-00

Unavailable

5

PLATE, FRICTION

537-16321-00-00

$17.49

6

PLATE, CLUTCH 2

137-16325-80-00

$16.49

7

. PLATE, PRESSURE 1 000

(537-16351-00-00)

Unavailable

8

SPRING, COMPRESSION (400)

90501-20361-00

$13.49

9

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

10

ROD,PUSH (1)

137-16356-00-00

$31.99

11

NUT, HEXAGON

90170-14171-00

$9.49

12

WASHER, LOCK (2K6)

90215-14204-00

$9.49

13

SPACER (525)

90560-17147-00

Unavailable

14

WASHER, PLATE(2YY)

90201-180P2-00

$9.49

15

ROD, PUSH 2

1W1-16357-00-00

Unavailable

15

PUSH ROD ASSEMBLY

99999-00910-00

Unavailable

16

PUSH LEVER ASSEMBLY

525-16380-00-00

Unavailable

17

SPRING, TORSION

90508-14132-00

Unavailable

18

WASHER PLATE 150251530000

90201-14217-00

Unavailable

19

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

20

SCREW

90149-12097-00

Unavailable

21

O-RING (611)

93210-10096-00

Unavailable

22

NUT

90179-12197-00

Unavailable

23

BALL

93503-16003-00

Unavailable
