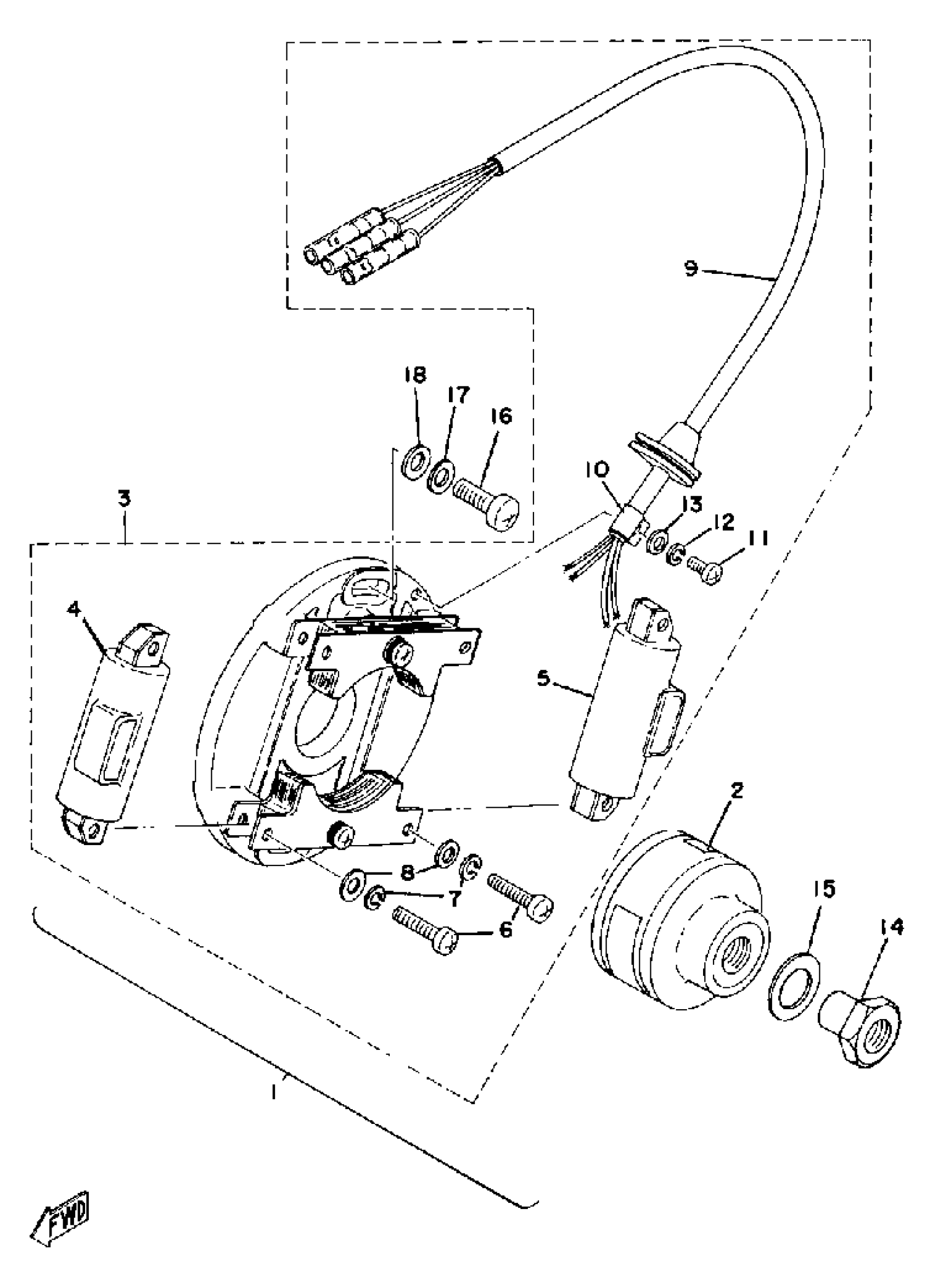

Yamaha YZ175C (YZ175C) 1976 C - D - I - MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

3V3-85500-10-00

Unavailable

2

ROTOR ASSEMBLY

(1G8-85550-10-00)

Unavailable

3

STATOR ASSEMBLY

(565-85510-10-00)

Unavailable

4

.. COIL, CHARGE 1

565-85566-10-00

Unavailable

5

.. COIL, CHARGE 2

565-85567-10-00

Unavailable

6

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

. WASHER, PLAIN

92990-05200-00

Unavailable

9

.. LEAD WIRE ASSEMBLY

565-85515-10-00

Unavailable

10

. CLAMP

109-81328-11-00

Unavailable

11

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

14

. NUT, ROTOR

322-85553-10-00

Unavailable

15

. WASHER, ROTOR

322-85554-10-00

Unavailable

16

SCREW PAN HEAD

98580-06020-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

WASHER, PLATE

90201-06045-00

Unavailable
