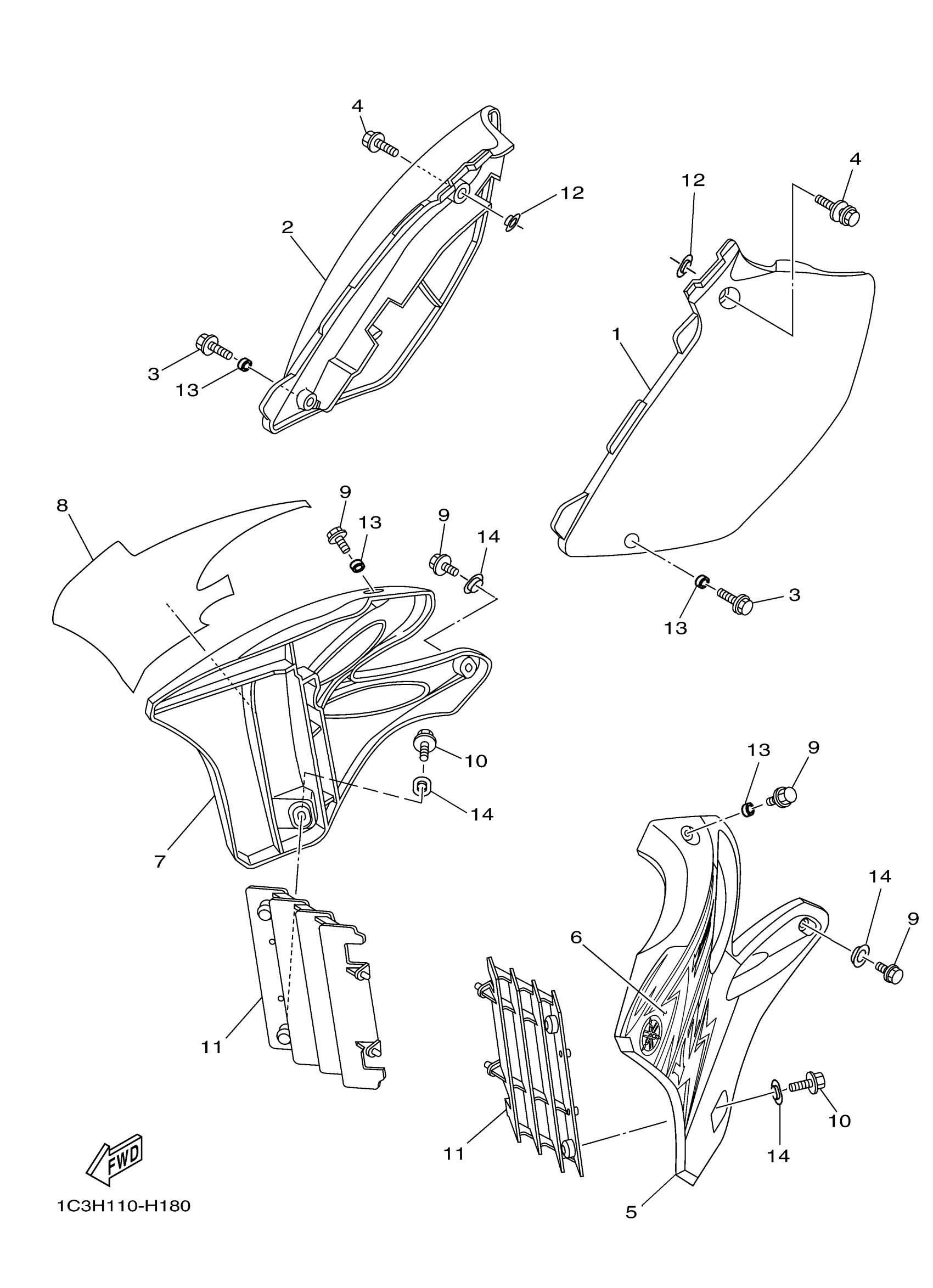

Yamaha YZ125Y (YZ125) 1C3H 2009 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5NY-21711-00-00

$31.99

2

COVER, SIDE 2

5NY-21721-00-00

$31.99

3

BOLT, FLANGE

90105-06103-00

$4.88

4

BOLT, WITH WASHER

90119-08095-00

$8.49

5

SIDE COVER ASSY 3

5XE-21730-00-00

$34.99

6

GRAPHIC 1

1C3-2173E-30-00

Unavailable

7

SIDE COVER ASSY 4

5XE-21740-00-00

$32.99

8

GRAPHIC 2

1C3-2173F-30-00

Unavailable

9

BOLT, FLANGE

90105-06064-00

$3.81

10

SCREW, WITH WASHER

90159-06021-00

$3.28

11

PANEL 1

5NL-2172A-20-00

$21.99

12

COLLAR

5BE-21749-00-00

$6.99

13

COLLAR

90387-06009-00

$10.49

14

COLLAR

5TA-21749-00-00

$11.99
