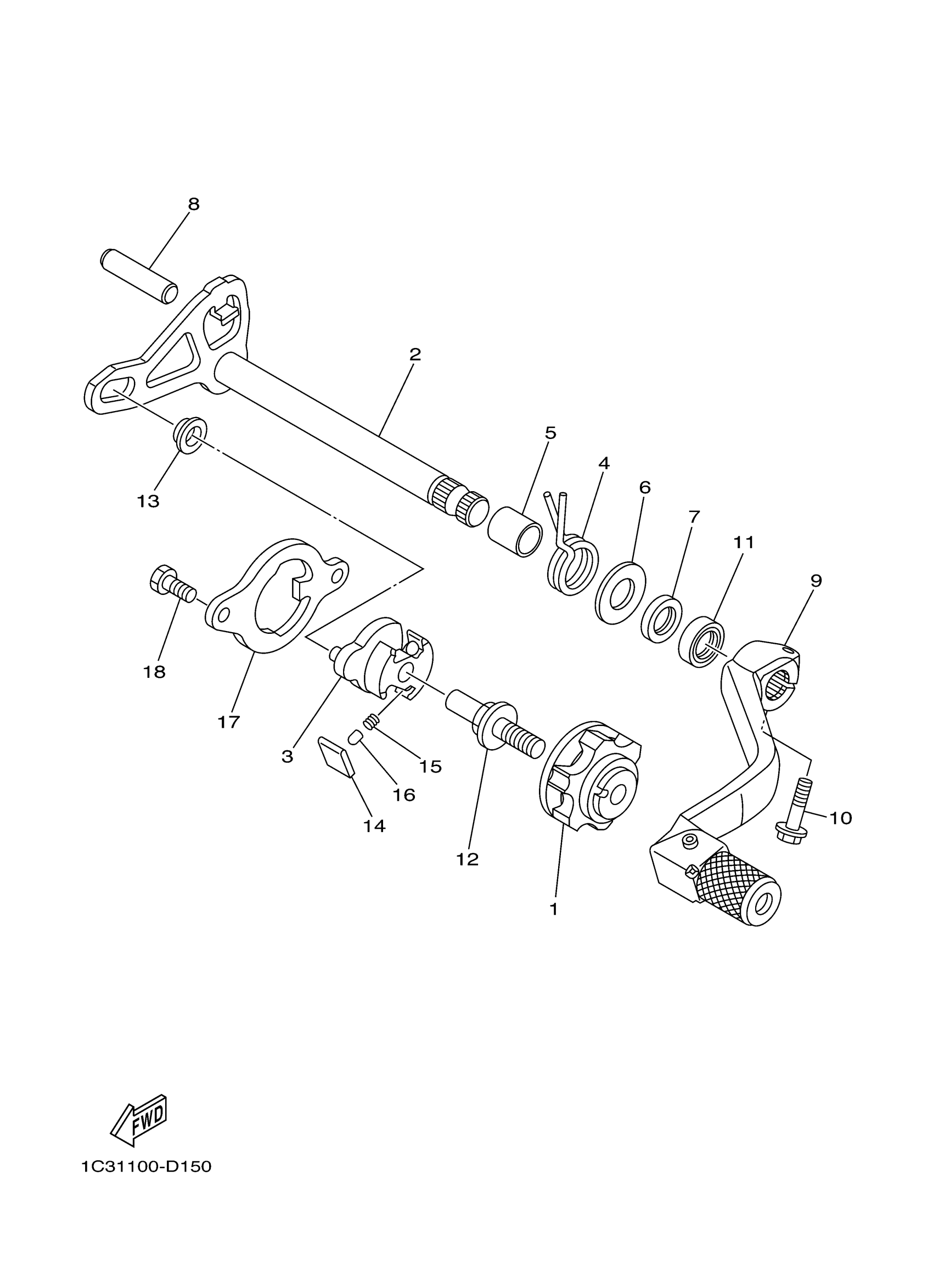

Yamaha YZ125Y (YZ125) 1C3H 2009 SHIFT SHAFT Diagram

#

Description
Price

1

SEGMENT

1C3-18185-00-00

$66.99

2

SHIFT SHAFT ASSY

1C3-18101-00-00

$50.99

3

LEVER, SHIFT 2

5LP-18122-01-00

$85.99

4

SPRING, TORSION

90508-29020-00

$9.49

5

SPACER(1LX)

90560-12280-00

$12.49

6

WASHER, PLATE

90201-12020-00

$7.49

7

OIL SEAL

93104-12003-00

$8.49

8

PIN, DOWEL

93608-33002-00

$15.99

9

SHIFT PEDAL ASSY

1C3-18110-00-00

$53.99

10

BOLT, FLANGE

95022-06020-00

$3.62

11

OIL SEAL (4G0)

93102-12224-00

$10.49

12

PIN, SHIFT

3XJ-18173-10-00

$19.99

13

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$13.49

14

PAWL, SHIFTER

3XJ-18182-00-00

$15.49

15

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

16

PIN, PAWL

3XJ-18184-00-00

Unavailable

17

GUIDE, SHIFT

1C3-18172-00-00

Unavailable

18

BOLT

90101-06042-00

Unavailable
