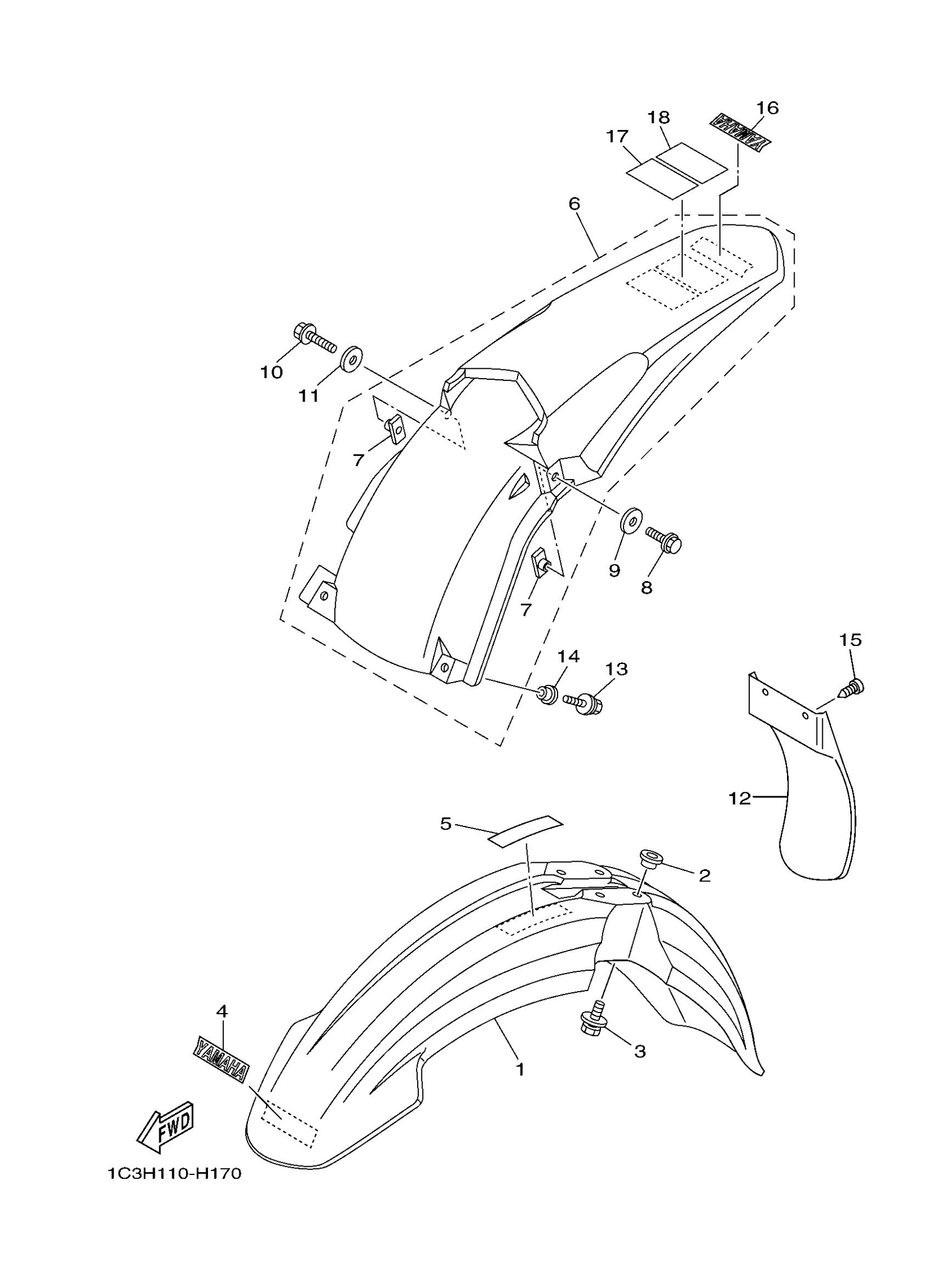

Yamaha YZ125Y (YZ125) 1C3H 2009 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1C3-21511-51-00

$32.99

2

COLLAR

90387-06090-00

$8.49

3

BOLT, WITH WASHER

90119-06147-00

$1.13

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

LABEL, CAUTION

3XJ-2415E-A1-00

$4.84

6

REAR FENDER COMP.

5XE-21610-10-00

$59.99

7

NUT, REAR FENDER

5XE-21635-10-00

$13.49

8

BOLT, FLANGE

90105-06100-00

$7.49

9

WASHER, PLATE

90201-06032-00

$8.49

10

BOLT, FLANGE

90105-06102-00

$3.50

11

WASHER, PLATE

90201-06033-00

$2.97

12

GUARD, FLAP

5TA-21642-00-00

$39.99

13

BOLT, WITH WASHER

90119-06149-00

$8.49

14

COLLAR

90387-06009-00

$10.49

15

SCREW, TAPPING

97702-60016-00

$2.19

16

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

17

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

18

LABEL 5

3XJ-2151H-A1-00

Unavailable
