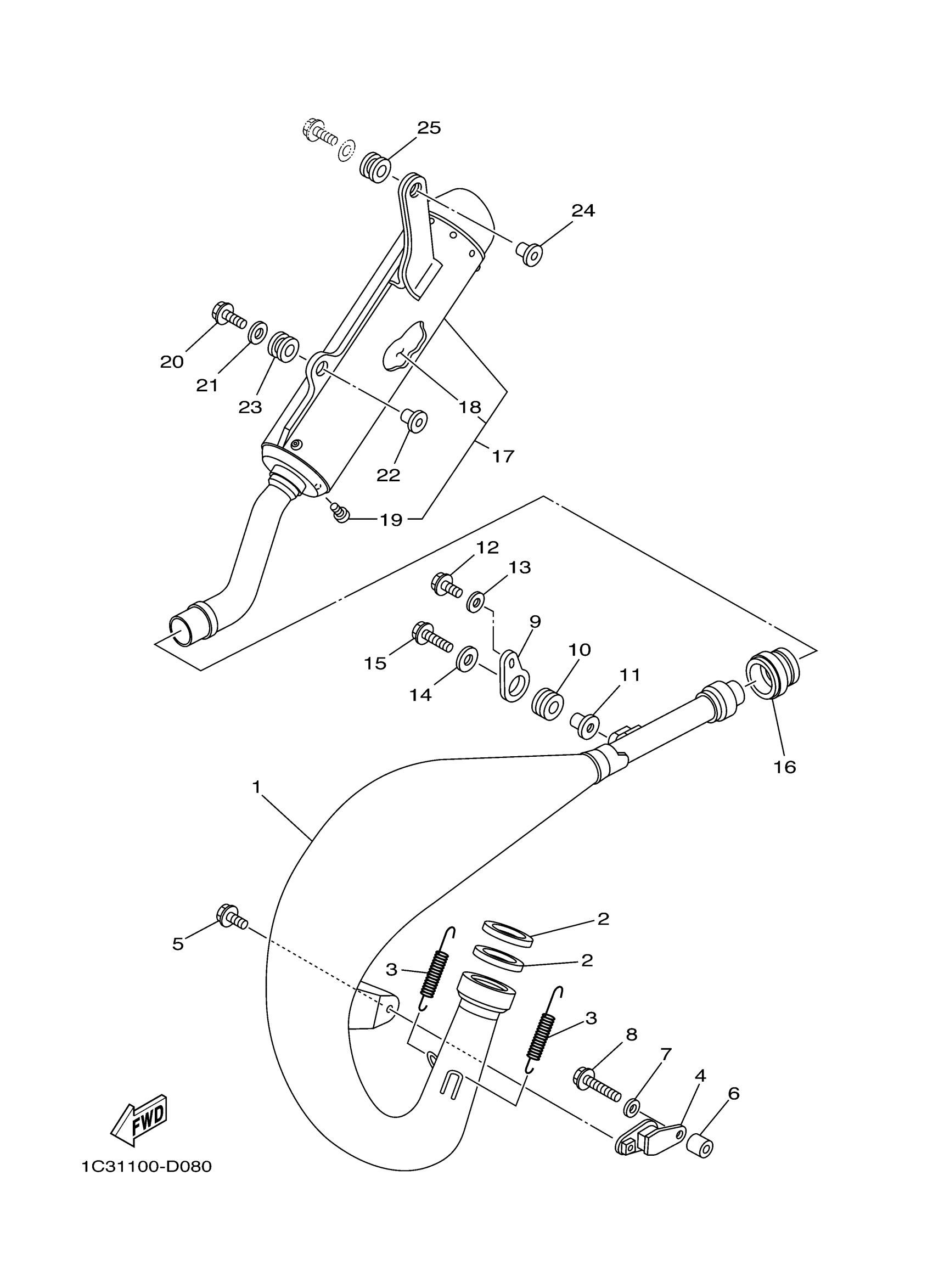

Yamaha YZ125Y (YZ125) 1C3H 2009 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

1C3-14610-00-00

$292.99

2

SEAL, EXHAUST

5MV-14642-00-00

$20.99

3

SPRING, TENSION

90506-20018-00

$9.49

4

STAY, MUFFLER 1

565-14771-01-00

$18.49

5

BOLT, FLANGE

95022-06012-00

$3.29

6

SPACER

1C3-14763-00-00

$6.99

7

WASHER, PLATE

90201-06077-00

$5.60

8

BOLT, FLANGE

95022-06025-00

$3.62

9

STAY, MUFFLER 1

5CU-14771-01-00

$33.99

10

GROMMET(4EW)

90480-16561-00

$16.99

11

COLLAR(52E)

90387-063G3-00

$8.49

12

BOLT, FLANGE

95022-06014-00

$3.14

13

WASHER, PLATE

90201-06078-00

$5.60

14

WASHER, PLATE

90201-06033-00

$2.97

15

BOLT, FLANGE

95022-06025-00

$3.62

16

JOINT, EXHAUST 1

4JY-14615-00-00

Unavailable

17

SILENCER, EXHAUST

5XE-14753-10-00

Unavailable

18

FIBER

5NY-1469A-00-00

Unavailable

19

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

20

BOLT, FLANGE

95022-06030-00

Unavailable

21

WASHER, PLATE

90201-06033-00

$2.97

22

COLLAR(52E)

90387-063G3-00

$8.49

23

GROMMET(4EW)

90480-16561-00

$16.99

24

COLLAR

90387-06039-00

Unavailable

25

GROMMET(36Y)

90480-16404-00

Unavailable
