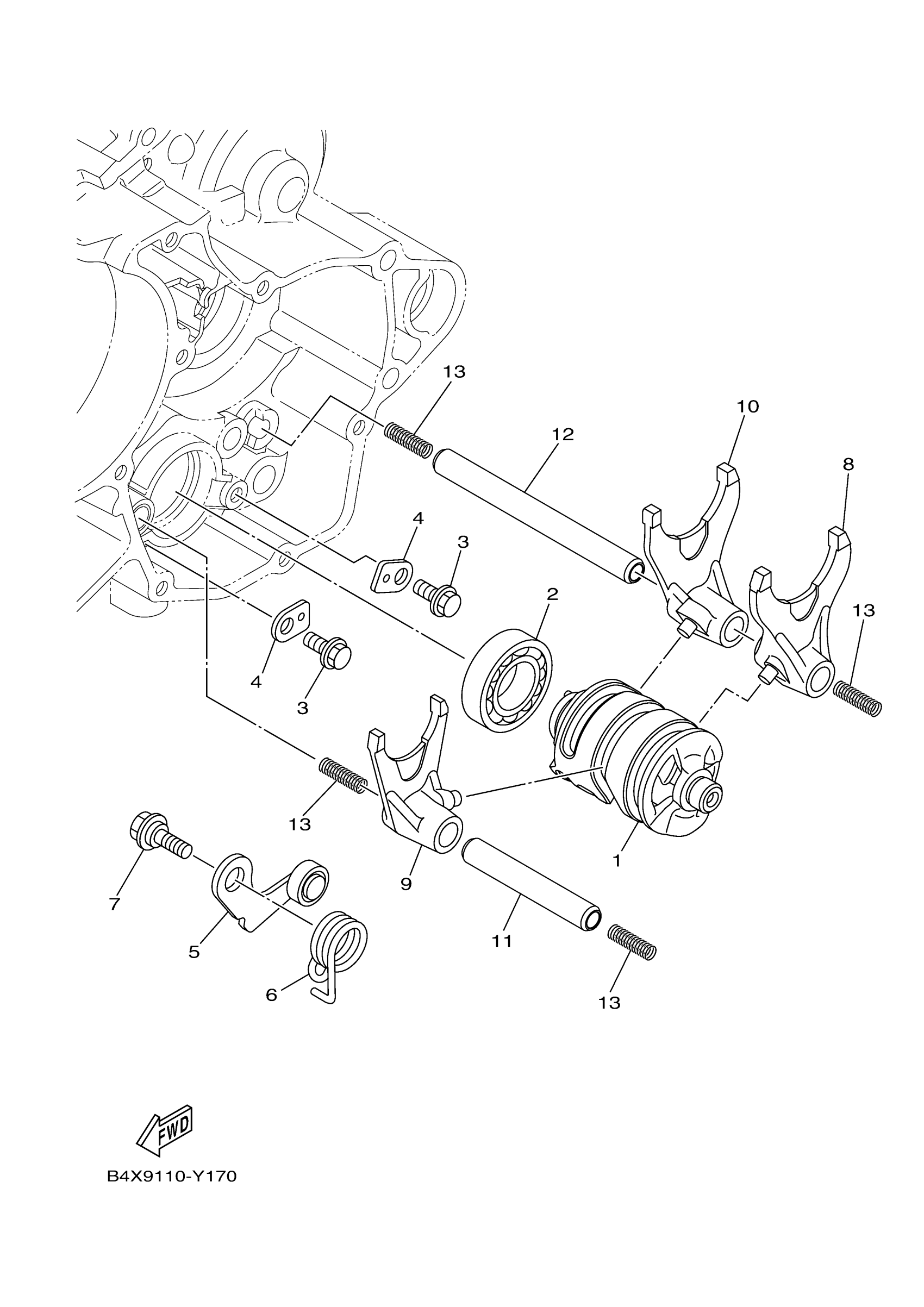

Yamaha YZ125XT (YZ125X) DF36 2026 SHIFT CAM & FORK Diagram

#

Description
Price

1

CAM, SHIFT

B4X-18541-00-00

Unavailable

2

BEARING

93306-90408-00

$42.99

3

BOLT, FLANGE DEEP RECESS

95E32-06012-00

$0.70

4

PLATE, STOPPER 2

1C3-18562-00-00

$7.99

5

STOPPER LEVER ASSY

1C3-18140-10-00

$32.99

6

SPRING, TORSION

90508-26135-00

$4.99

7

BOLT

90109-06195-00

$7.49

8

FORK, SHIFT 1

1C3-18511-00-00

$64.99

9

FORK, SHIFT 2

1C3-18512-00-00

$66.99

10

FORK, SHIFT 3

1C3-18513-00-00

$64.99

11

BAR, SHIFT FORK GU

B4X-18531-00-00

Unavailable

12

BAR, SHIFT FORK GU

B4X-18535-00-00

Unavailable

13

SPRING, COMPRESSION

90501-064L1-00

$2.19
