Description

Price

1

BEARING(4EW)

93332-00078-00

$64.99

2

COVER, BALL RACE 2

4EW-23416-00-00

$34.99

3

NUT

90179-28015-00

$37.99

4

WASHER, PLATE(1YW)

90201-286K9-00

$7.49

5

CROWN, HANDLE

1SS-23435-10-00

$222.99

6

NUT

90179-24004-00

$26.99

7

HOLDER, HANDLE UPPER

B2W-23441-00-00

$31.99

8

HOLDER, HANDLE LOW

1SS-23442-00-00

$56.99

9

WASHER, PLATE

90201-12028-00

$2.82

10

NUT, SELF-LOCKING

95602-12200-00

$4.46

11

BOLT, FLANGE DEEP RECESS

95E34-08040-00

$1.49

12

BOLT, FLANGE (3JPE)

95024-08030-00

Unavailable

13

PLATE, NUMBER

B1B-23485-00-00

$27.99

14

DAMPER 1

BF1-2317J-00-00

$9.49

15

DAMPER 2

BF1-2317K-00-00

$9.49

16

PLATE, DAMPER 1

BF1-23421-00-00

Unavailable

17

BOLT, FLANGE

90105-06203-00

Unavailable

18

STEERING BEARING K

D68-W000B-00-00

Unavailable

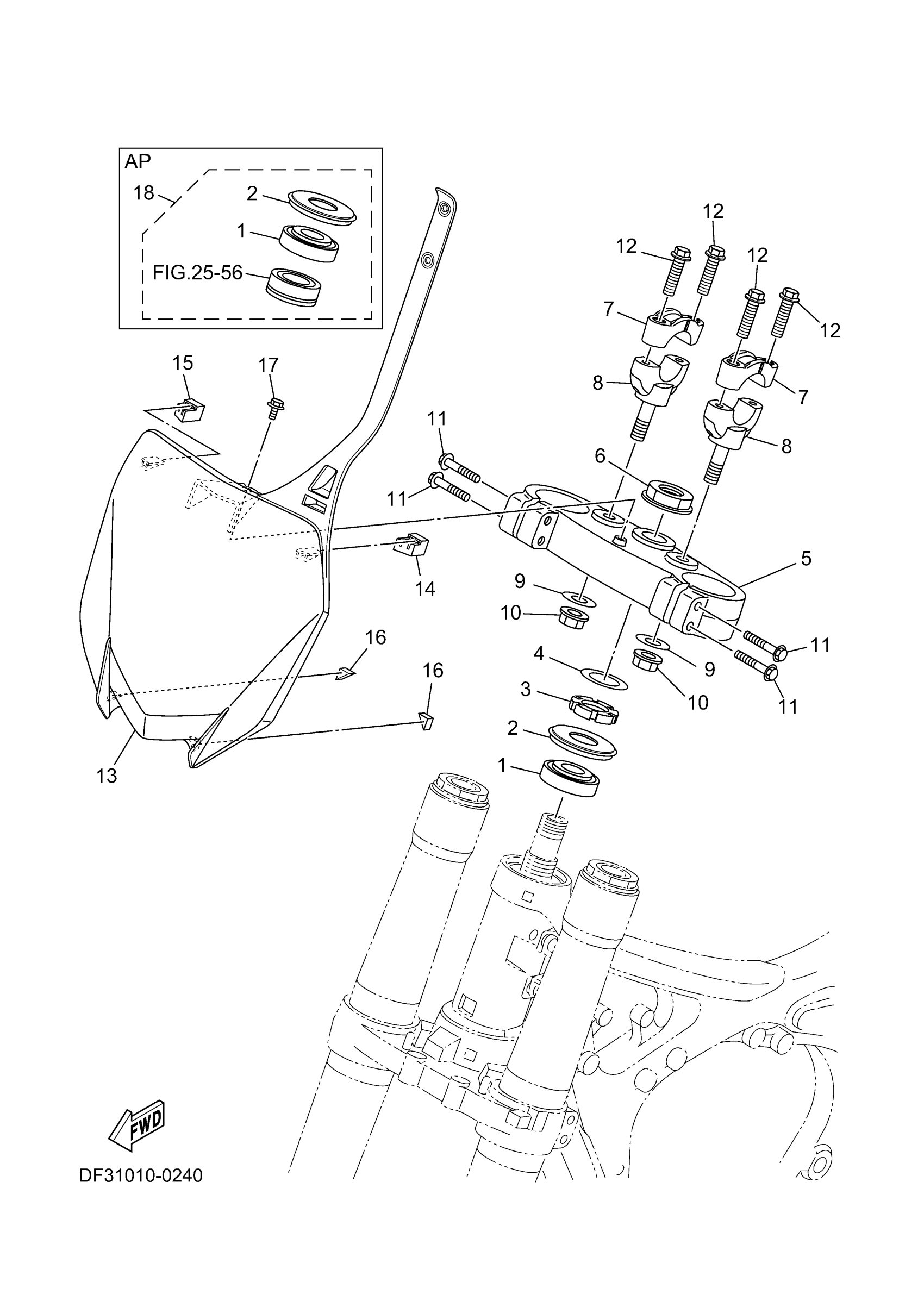

Yamaha YZ125XS (YZ125X) DF32 2025 STEERING Diagram

BEARING(4EW)

COVER, BALL RACE 2

NUT

WASHER, PLATE(1YW)

CROWN, HANDLE

NUT

HOLDER, HANDLE UPPER

HOLDER, HANDLE LOW

WASHER, PLATE

NUT, SELF-LOCKING

BOLT, FLANGE DEEP RECESS

BOLT, FLANGE (3JPE)

PLATE, NUMBER

DAMPER 1

DAMPER 2

PLATE, DAMPER 1

BOLT, FLANGE

STEERING BEARING K
