Description

Price

1

WHEEL RIM ASSY

BRY-25102-00-00

$636.99

2

HUB, FRONT

5NY-25111-00-00

Unavailable

3

BEARING(JN2)

93306-90404-00

$48.99

4

SPACER, BEARING

5NY-25117-00-00

$31.99

5

OIL SEAL

93102-26468-00

$21.99

6

DISK BRAKE ASSY

B2W-2581T-00-00

$198.99

7

RIM (1.60-21)

94416-21079-00

Unavailable

8

SPOKE SET, FRONT

5NY-25104-00-00

$217.99

9

SPACER, BEAD

5SF-25394-00-00

$27.99

10

SCREW, COUNTERSUNK

90151-06079-00

$3.23

11

TIRE (80/100-21 51M MX33F)

94108-21055-00

Unavailable

12

TUBE, FRONT (2A6)

94227-21123-00

$47.99

13

BAND, RIM (2A6)

94330-21084-00

$16.99

14

AXLE, WHEEL

5XC-25181-G0-00

$92.99

15

COLLAR, WHEEL

5XC-25183-G0-00

$37.99

16

COLLAR, WHEEL

5XC-25186-G0-00

Unavailable

17

NUT

90179-16011-00

Unavailable

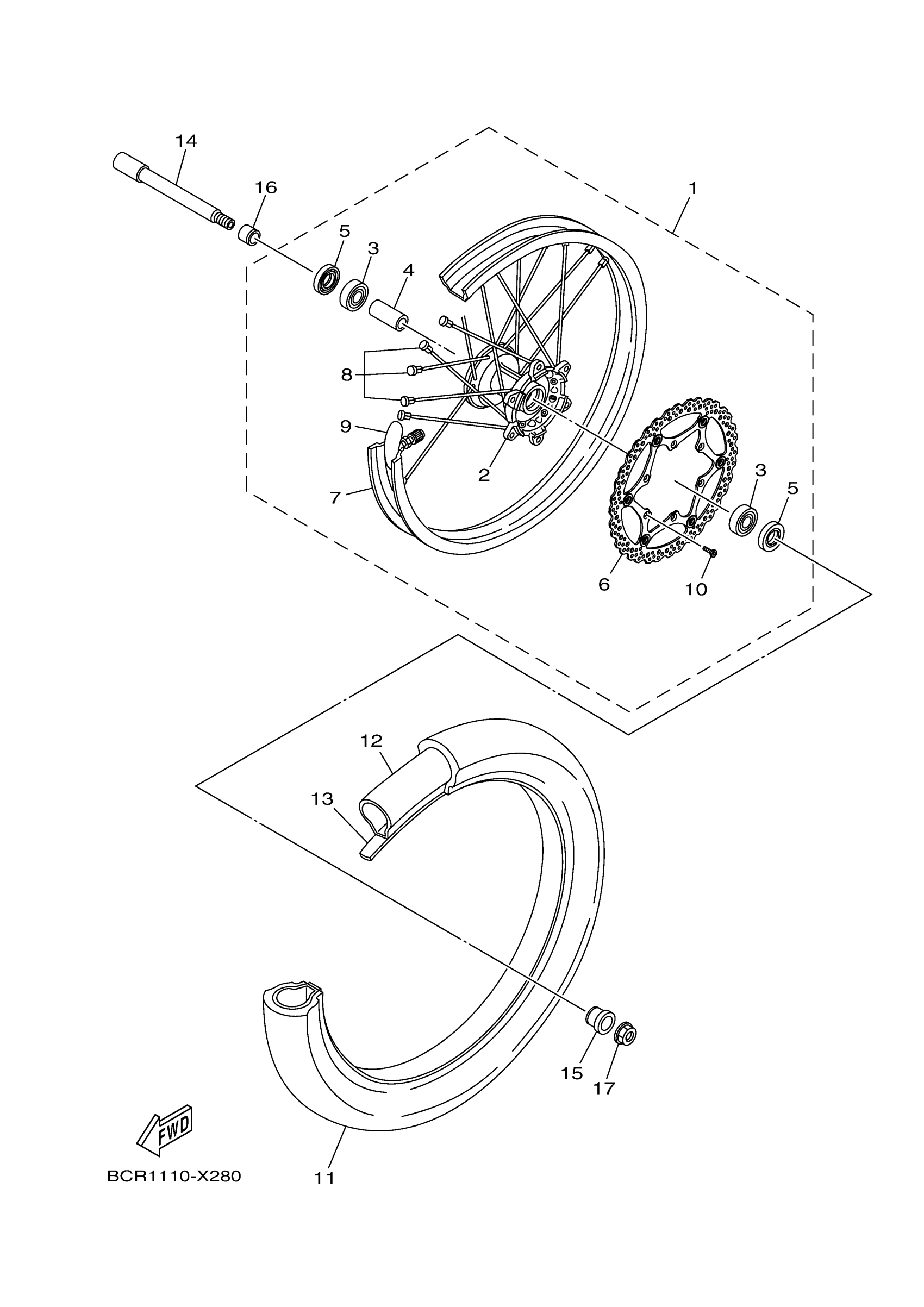

Yamaha YZ125XS (YZ125X) DF32 2025 FRONT WHEEL Diagram

WHEEL RIM ASSY

HUB, FRONT

BEARING(JN2)

SPACER, BEARING

OIL SEAL

DISK BRAKE ASSY

RIM (1.60-21)

SPOKE SET, FRONT

SPACER, BEAD

SCREW, COUNTERSUNK

TIRE (80/100-21 51M MX33F)

TUBE, FRONT (2A6)

BAND, RIM (2A6)

AXLE, WHEEL

COLLAR, WHEEL

COLLAR, WHEEL

NUT
