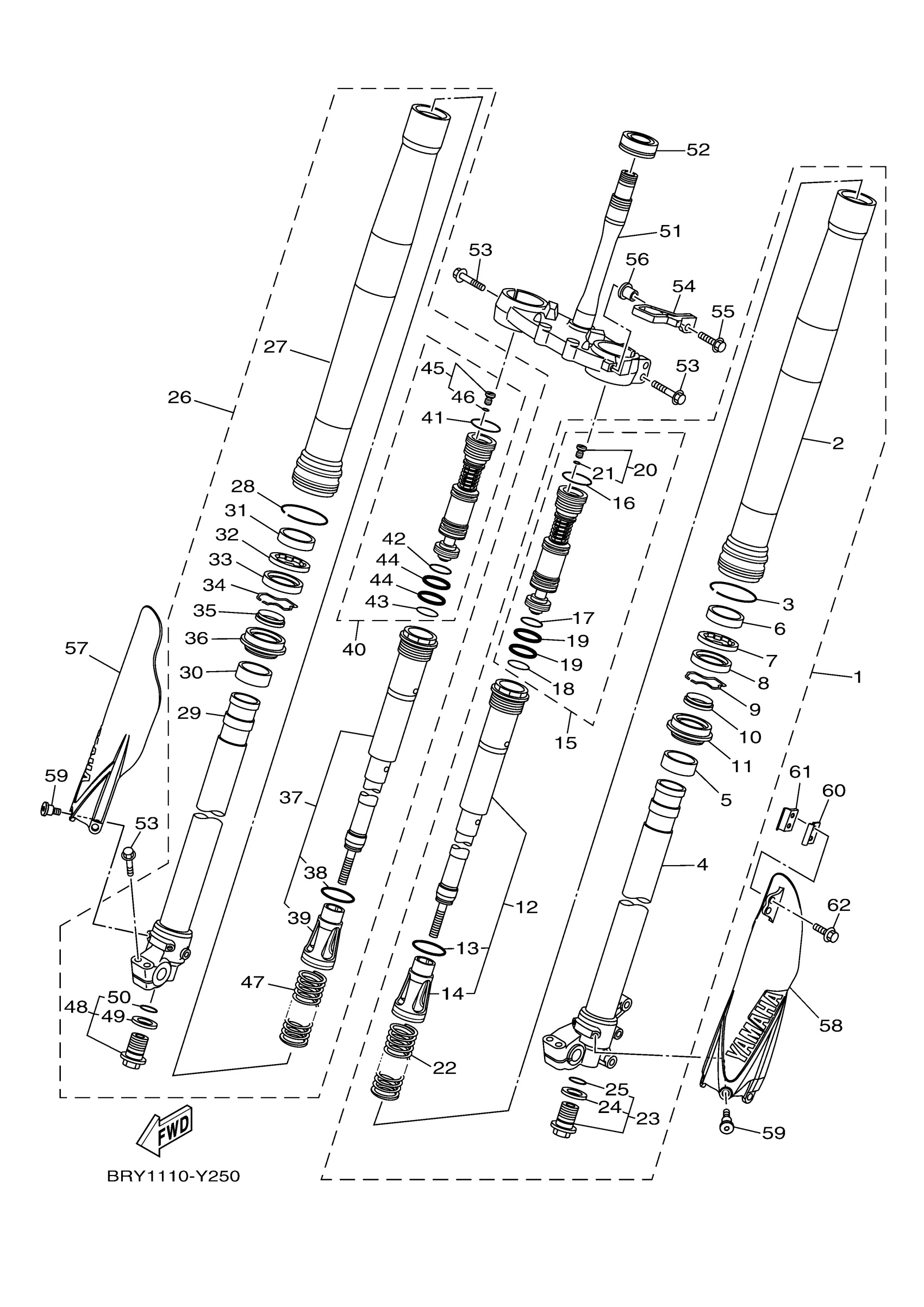

Yamaha YZ125XR (YZ125X) BRX6 2024 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

BRX-23102-10-00

$1,375.99

2

TUBE, OUTER

1SS-23136-00-00

Unavailable

3

RING, SNAP

17D-23153-00-00

$4.63

4

INNER TUBE COMP.2

BCR-23120-00-00

$461.99

5

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

6

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

7

WASHER, OIL SEAL

5XC-23146-10-00

$14.49

8

OIL SEAL

B29-23145-00-00

$22.99

9

RING, SNAP

5XE-23153-L0-00

$7.99

10

SCRAPER

B29-4381D-00-00

$17.99

11

SEAL, DUST

5XE-23144-L0-00

$22.99

12

CYLINDER COMP., FR

BRY-23170-00-00

$854.99

13

O-RING

1C3-23147-L1-00

$3.48

14

SEAT, SPRING UPPER

17D-23142-00-00

$74.99

15

VALVE COMP.

BRX-2316A-10-00

Unavailable

16

O-RING

1C3-23188-L2-00

Unavailable

17

O-RING

1C3-23188-N0-00

Unavailable

18

O-RING

1C3-23188-P0-00

Unavailable

19

O-RING

1AE-23147-01-00

Unavailable

20

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

21

O-RING

1C3-23188-R1-00

Unavailable

22

SPRING, FRONT FORK

B3J-23141-20-00

Unavailable

23

BOLT, CAP

5XC-23111-01-00

Unavailable

24

GASKET

2HH-23158-L0-00

Unavailable

25

GASKET

276-23114-02-00

Unavailable

26

FRONT FORK ASSY (R.H)

BRX-23103-10-00

Unavailable

27

TUBE, OUTER

1SS-23136-00-00

Unavailable

28

RING, SNAP

17D-23153-00-00

$4.63

29

INNER TUBE COMP.1

BCR-23110-00-00

Unavailable

30

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

31

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

32

WASHER, OIL SEAL

5XC-23146-10-00

$14.49

33

OIL SEAL

B29-23145-00-00

$22.99

34

RING, SNAP

5XE-23153-L0-00

$7.99

35

SCRAPER

B29-4381D-00-00

$17.99

36

SEAL, DUST

5XE-23144-L0-00

$22.99

37

CYLINDER COMP., FR

BRY-23170-00-00

$854.99

38

O-RING

1C3-23147-L1-00

$3.48

39

SEAT, SPRING UPPER

17D-23142-00-00

$74.99

40

VALVE COMP.

BRX-2316A-10-00

Unavailable

41

O-RING

1C3-23188-L2-00

Unavailable

42

O-RING

1C3-23188-N0-00

Unavailable

43

O-RING

1C3-23188-P0-00

Unavailable

44

O-RING

1AE-23147-01-00

Unavailable

45

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

46

O-RING

1C3-23188-R1-00

Unavailable

47

SPRING, FRONT FORK

B3J-23141-20-00

Unavailable

48

BOLT, CAP

5XC-23111-01-00

Unavailable

49

GASKET

2HH-23158-L0-00

Unavailable

50

GASKET

276-23114-02-00

Unavailable

51

UNDER BRACKET COMP.

1SR-23340-10-00

Unavailable

52

BEARING(4SR)

93332-00081-00

Unavailable

53

BOLT, FLANGE DEEP RECESS

95E34-08035-00

Unavailable

54

GUIDE, CABLE

BF1-23389-00-00

Unavailable

55

BOLT, FLANGE DEEP RECESS

95E32-06016-00

Unavailable

56

COLLAR

90387-06104-00

Unavailable

57

PROTECTOR 2

17D-2315J-J0-00

Unavailable

58

PROTECTOR 1

17D-2315H-J0-00

Unavailable

59

BOLT

90109-06232-00

Unavailable

60

CLAMP

17D-23466-00-00

Unavailable

61

CLAMP

17D-23467-00-00

Unavailable

62

BOLT, FLANGE

90105-06170-00

Unavailable
