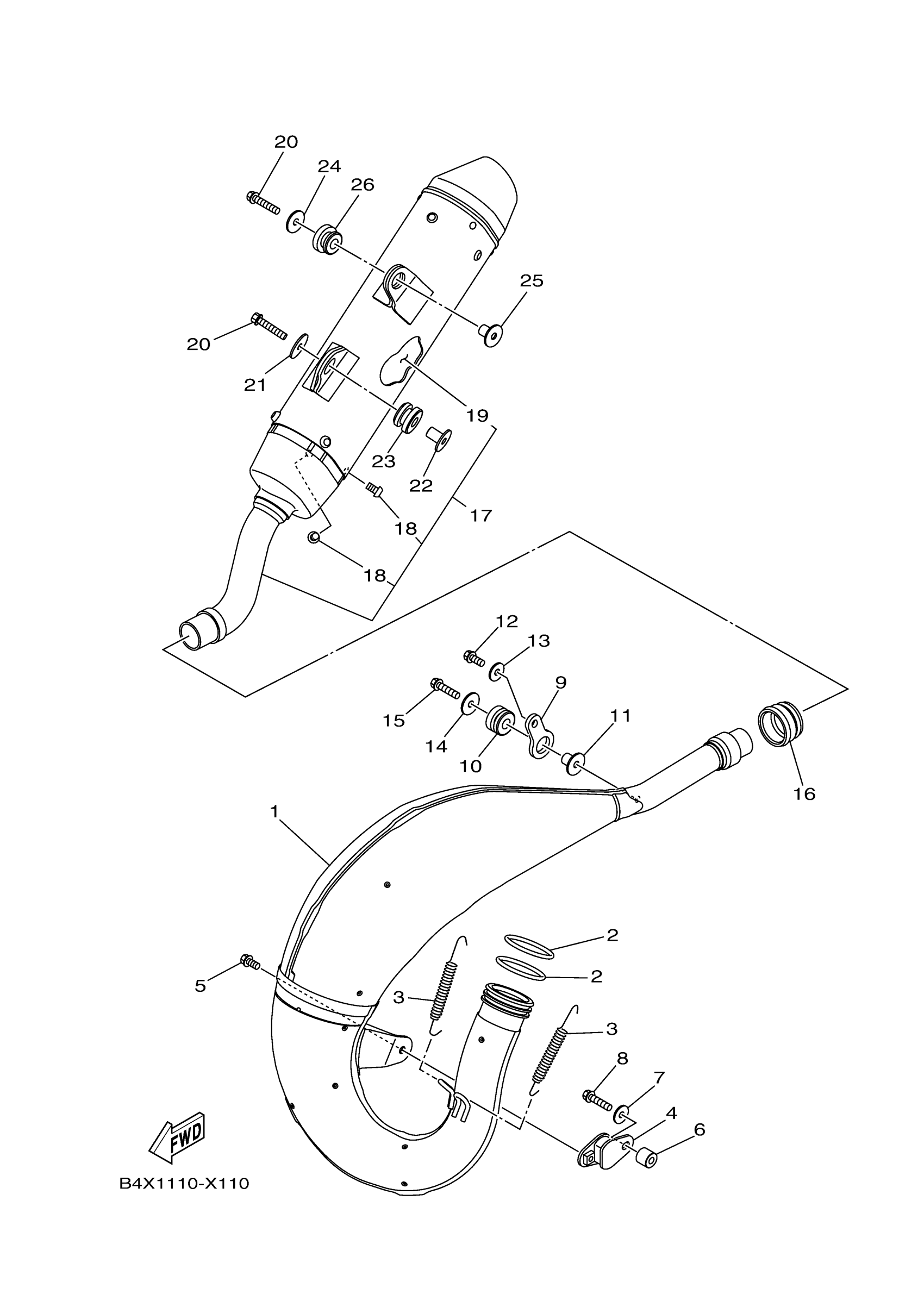

Yamaha YZ125XR (YZ125X) BRX6 2024 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY

B4X-14610-10-00

$336.99

2

O-RING(1LX)

93210-42728-00

$16.99

3

SPRING, TENSION

90506-20018-00

$9.49

4

STAY, MUFFLER 1

565-14771-01-00

$18.49

5

BOLT, FLANGE DEEP RECESS

95E32-06012-00

$0.70

6

SPACER

1C3-14763-00-00

$6.99

7

WASHER, PLATE

90201-06077-00

$5.60

8

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

9

STAY, MUFFLER 1

B4X-14771-10-00

$9.49

10

GROMMET(4EW)

90480-16561-00

$16.99

11

COLLAR(52E)

90387-063G3-00

$8.49

12

BOLT, FLANGE DEEP RECESS

95E32-06014-00

$0.43

13

WASHER, PLATE

90201-06078-00

$5.60

14

WASHER, PLATE

90201-06033-00

$2.97

15

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

16

JOINT, EXHAUST 1

4JY-14615-00-00

Unavailable

17

SILENCER, EXHAUST

B4X-14753-00-00

Unavailable

18

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

19

FIBER

B4X-1469A-00-00

Unavailable

20

BOLT, FLANGE DEEP RECESS

95E32-06030-00

Unavailable

21

WASHER, PLATE

90201-06086-00

Unavailable

22

COLLAR

90387-06363-00

Unavailable

23

GROMMET

90480-17004-00

Unavailable

24

WASHER, PLATE

90201-06033-00

$2.97

25

COLLAR

90387-06039-00

Unavailable

26

GROMMET(36Y)

90480-16404-00

Unavailable
