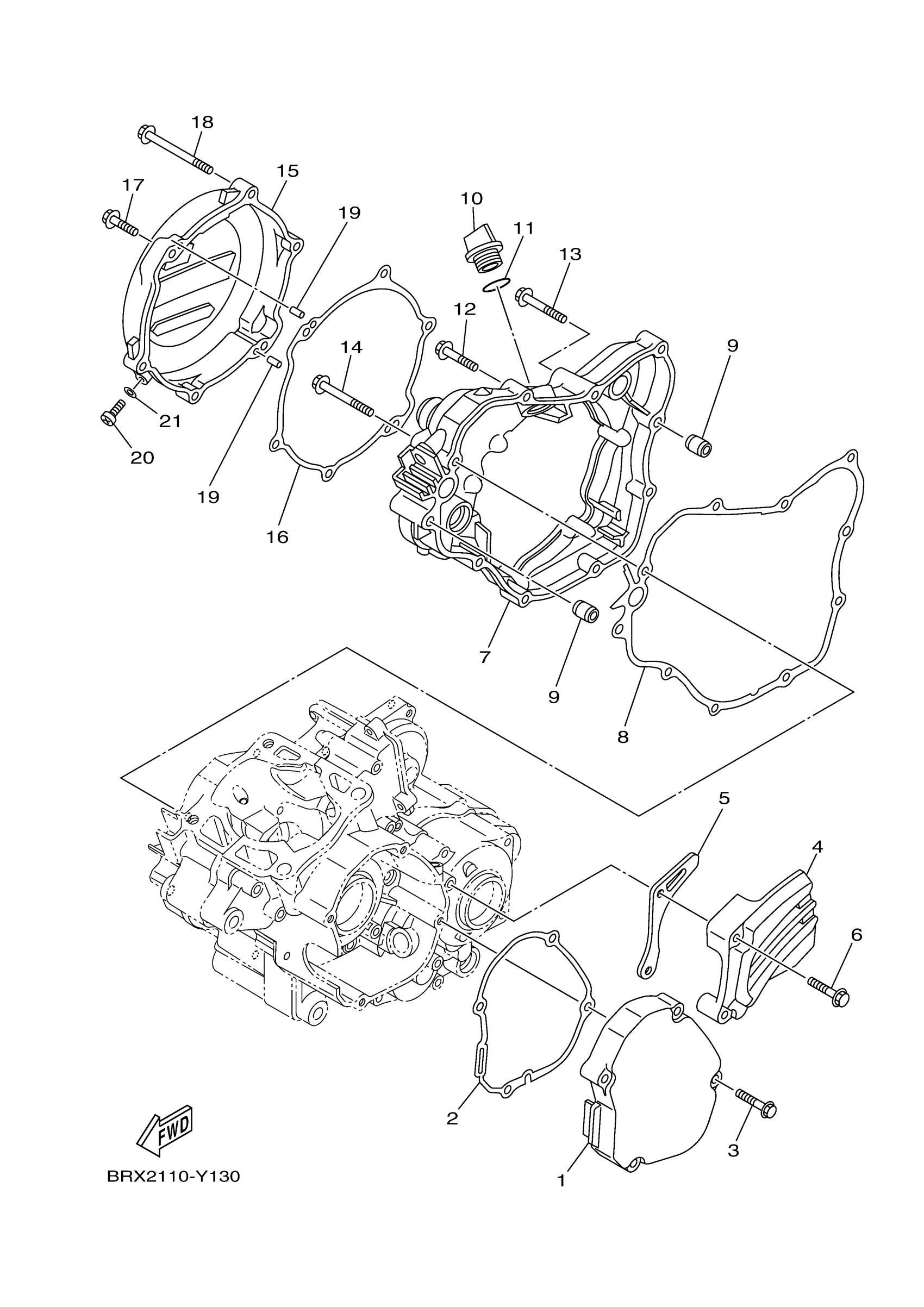

Yamaha YZ125XR (YZ125X) BRX6 2024 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1C3-15411-10-00

$42.99

2

GASKET, CRANKCASE COVER 1

1C3-15451-00-00

$16.49

3

BOLT, FLANGE DEEP RECESS

95E32-06030-00

$0.75

4

COVER, CRANKCASE 2

1C3-15421-10-00

Unavailable

5

GUIDE, CHAIN

1C3-17466-00-00

$14.49

6

BOLT, FLANGE

90105-06233-00

Unavailable

7

COVER, CRANKCASE 3

B4X-15431-00-00

Unavailable

8

GASKET, CRANKCASE COVER 3

1C3-15462-00-00

$17.49

9

PIN, DOWEL(3XW)

91808-16023-00

$8.49

10

PLUG, OIL

3Y1-15363-10-00

$18.49

11

O-RING (646)

93210-19123-00

Unavailable

12

BOLT, FLANGE DEEP RECESS

95E32-06030-00

$0.75

13

BOLT, FLANGE DEEP

95E32-06040-00

$0.86

14

BOLT, FLANGE DEEPRECESS

95E32-06050-00

$0.43

15

COVER, 1

B4X-15415-00-00

Unavailable

16

GASKET, 2

1C3-15463-00-00

Unavailable

17

BOLT, FLANGE DEEP

95E32-06065-00

Unavailable

18

BOLT, FLANGE DEEP RECESS

95E32-06025-00

Unavailable

19

PIN,DOWEL (603)

93604-10011-00

Unavailable

20

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

21

GASKET 256113960000

90430-06014-00

Unavailable
