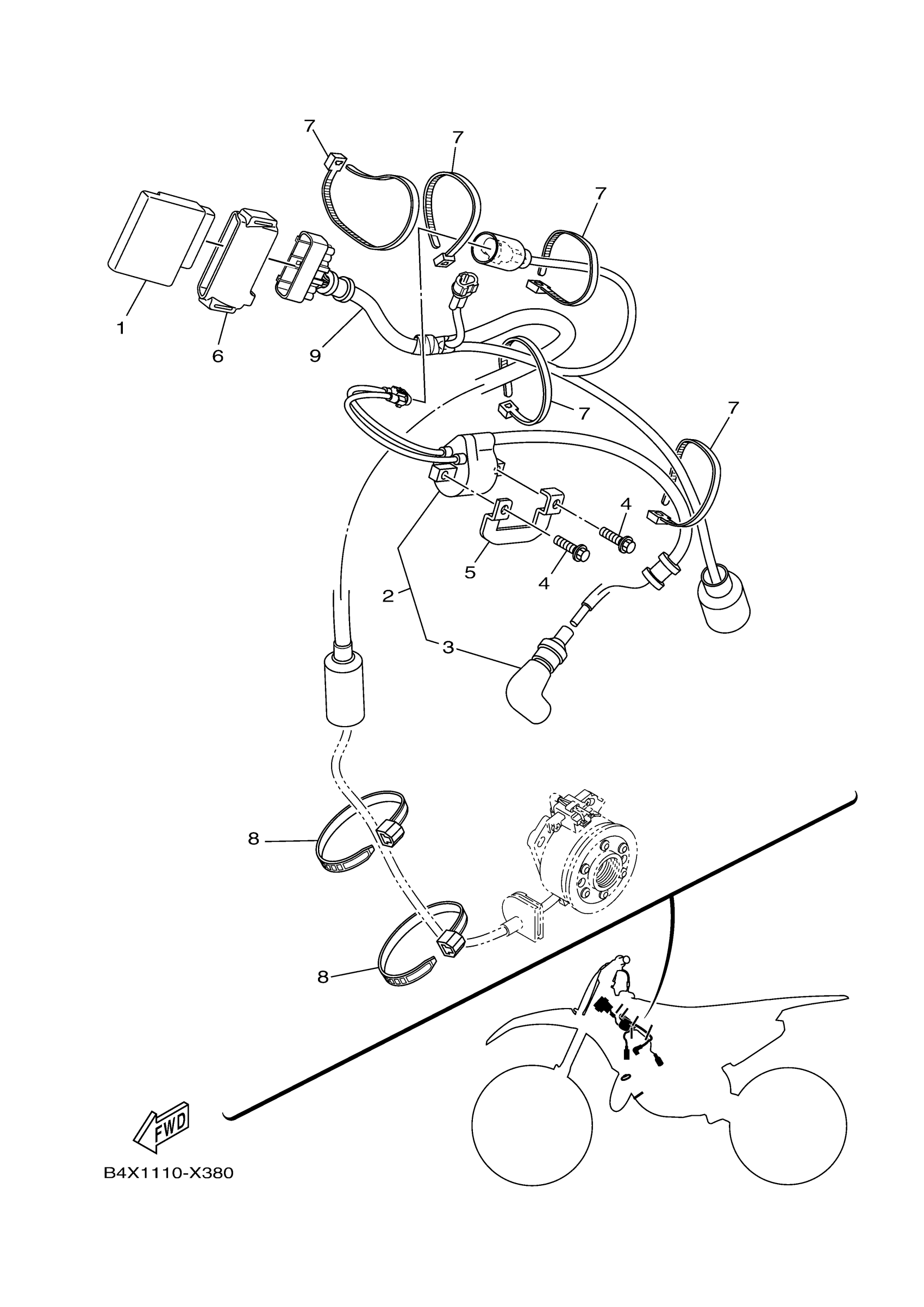

Yamaha YZ125XP (YZ125X) BRX2 2023 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

BRX-85540-00-00

$281.26

2

IGNITION COIL ASSY

B4X-82320-00-00

$165.83

3

PLUG CAP ASSY

8DG-82370-00-00

$41.54

4

BOLT, FLANGE

90105-06060-00

$3.50

5

CORE, SIDE

1C3-8231U-10-00

Unavailable

6

BAND

B4X-85546-00-00

$17.71

7

CLAMP(MF1)

90464-15152-00

$4.07

8

CLAMP(4FM)

90464-15195-00

$2.57

9

WIRE, SUB LEAD

B4X-82509-01-00

$88.56
