Description

Price

1

BEARING(4EW)

93332-00078-00

$64.99

2

COVER, BALL RACE 2

4EW-23416-00-00

$34.99

3

NUT

90179-28013-00

$35.99

4

WASHER, PLATE(1YW)

90201-286K9-00

$7.49

5

CROWN, HANDLE

1SS-23435-10-00

$222.99

6

NUT

90170-24003-00

$25.99

7

WASHER, PLATE

90201-24016-00

$8.49

8

HOLDER, HANDLE UPPER

18P-23441-00-00

$30.99

9

HOLDER, HANDLE LOW

1SS-23442-00-00

$56.99

10

WASHER, PLATE

90201-12028-00

$2.82

11

NUT, SELF-LOCKING

95602-12200-00

$4.46

12

BOLT, FLANGE DEEP RECESS

95E34-08040-00

$1.49

13

BOLT, FLANGE

90105-08134-00

$7.49

14

PLATE, NUMBER

B1B-23485-00-00

$27.99

15

DAMPER 1

BF1-2317J-00-00

$9.49

16

DAMPER 2

BF1-2317K-00-00

Unavailable

17

PLATE, DAMPER 1

BF1-23421-00-00

Unavailable

18

BOLT, FLANGE

90105-06203-00

Unavailable

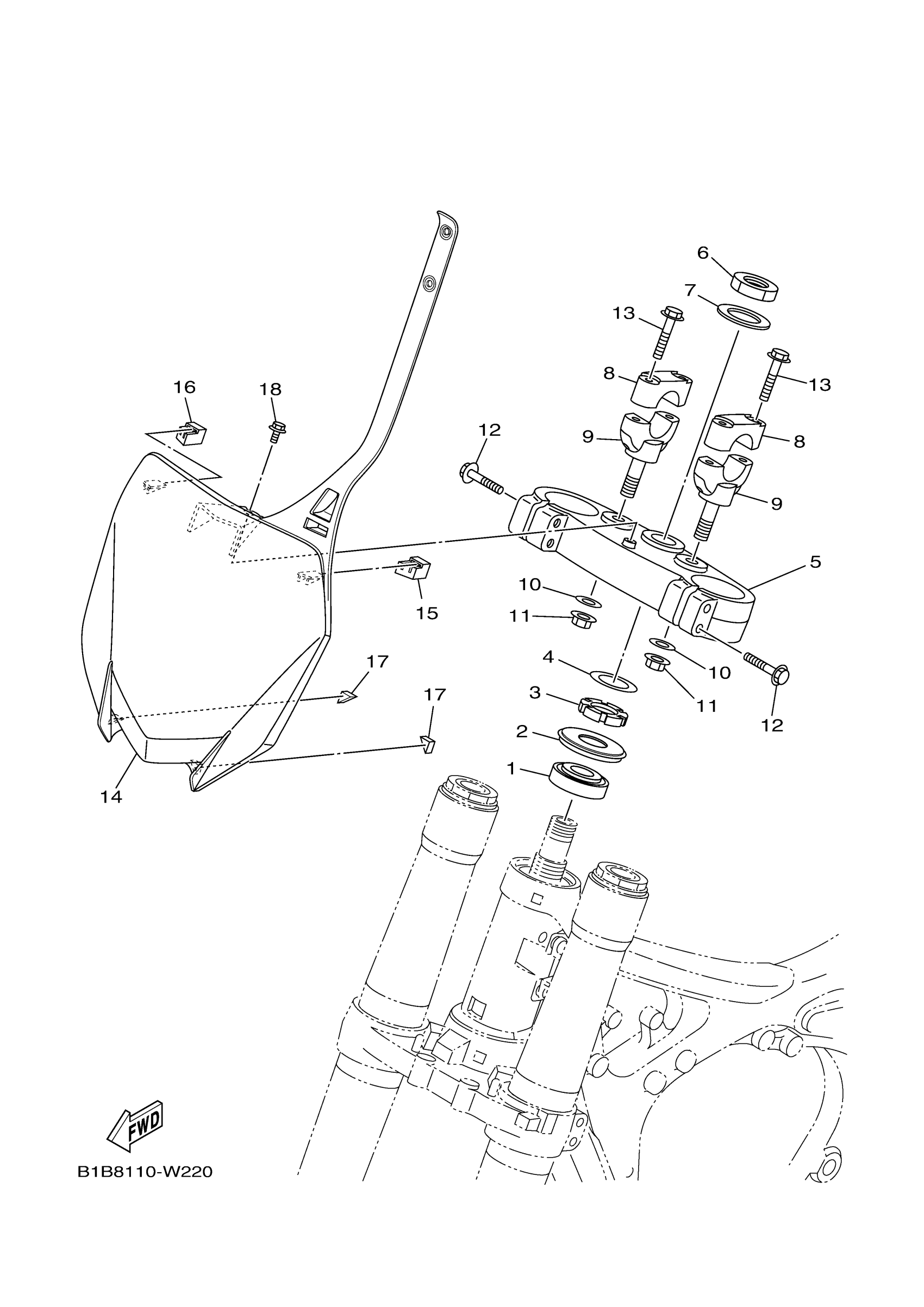

Yamaha YZ125XN (YZ125X) B1BD 2022 STEERING Diagram

BEARING(4EW)

COVER, BALL RACE 2

NUT

WASHER, PLATE(1YW)

CROWN, HANDLE

NUT

WASHER, PLATE

HOLDER, HANDLE UPPER

HOLDER, HANDLE LOW

WASHER, PLATE

NUT, SELF-LOCKING

BOLT, FLANGE DEEP RECESS

BOLT, FLANGE

PLATE, NUMBER

DAMPER 1

DAMPER 2

PLATE, DAMPER 1

BOLT, FLANGE
