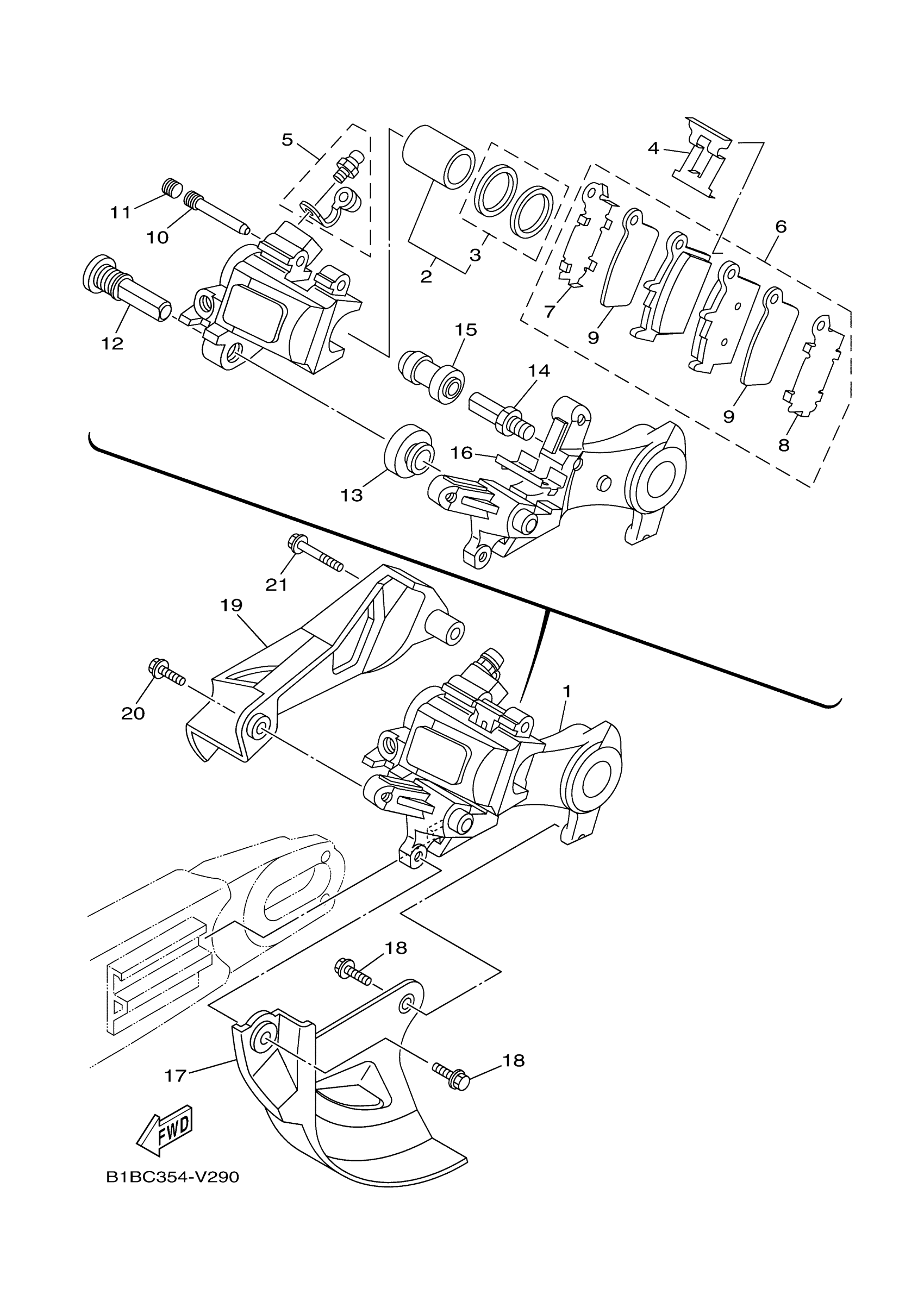

Yamaha YZ125XN (YZ125X) B1BD 2022 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR 2

1C3-2580W-52-00

$375.82

2

PISTON ASSY, CALIPER

5UN-W0057-50-00

$51.26

3

CALIPER SEAL KIT

5UN-W0047-50-00

$13.33

4

SUPPORT, PAD

5DH-25919-50-00

$16.55

5

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

6

BRAKE PAD KIT 2

1C3-W0046-50-00

$55.99

7

.. SHIM, CALIPER

5UN-25828-60-00

$9.79

8

SHIM, CALIPER

5UN-25827-60-00

$12.27

9

INSULATOR, HEAT

5UN-22898-60-00

$15.86

10

PIN, PAD

8CR-25924-00-00

$10.52

11

PLUG

5DH-25916-00-00

$6.94

12

PIN, SLIDE

5DH-25914-50-00

$17.58

13

BOOT, CALIPER

3JD-25917-00-00

$7.03

14

PIN, SLIDE

5UN-25914-00-00

$10.77

15

BOOT 2

1UY-25937-51-00

$11.48

16

RETAINER

5UN-25913-00-00

Unavailable

17

PROTECTOR, DISK BRAKE

17D-25718-50-00

Unavailable

18

BOLT, FLANGE DEEP RECESS

95E32-06012-00

Unavailable

19

PROTECTOR

17D-27491-50-00

Unavailable

20

BOLT, FLANGE

90105-06110-00

Unavailable

21

BOLT, FLANGE

90105-06111-00

Unavailable
