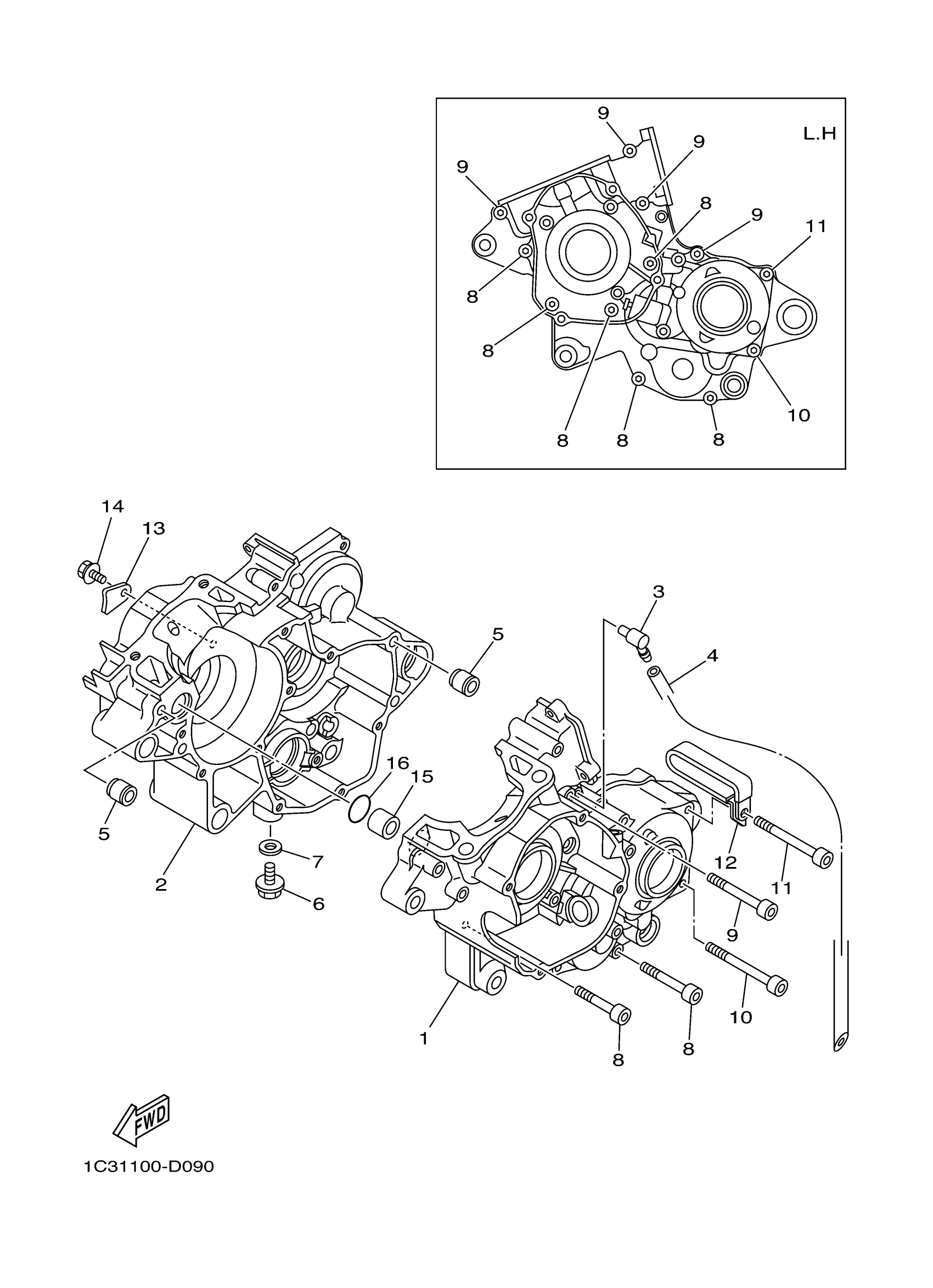

Yamaha YZ125XN (YZ125X) B1BD 2022 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

1C3-15111-02-00

Unavailable

2

CRANKCASE 2

1C3-15121-01-00

$888.61

3

CONNECTOR, SUCTION PIPE

353-13115-01-00

$4.90

4

HOSE (L1500)

90445-084J0-00

$15.31

5

PIN, DOWEL(2VG)

99530-10116-00

$3.14

6

BOLT, FLANGE

95022-10016-00

$5.86

7

GASKET

90430-10188-00

$5.89

8

BOLT

91312-06045-00

$3.14

9

TORNILLO ALLEN

91312-06055-00

$5.24

10

BOLT, SOCKET

91317-06065-00

$3.05

11

BOLT

91312-06075-00

$4.02

12

CLAMP(4NX)

90461-10136-00

$18.80

13

HOLDER

4V4-15118-00-00

$23.70

14

BOLT, FLANGE

95817-06012-00

$1.40

15

PIN, DOWEL

99590-17016-00

$4.90

16

O-RING (1J7)

93210-16314-00

Unavailable
