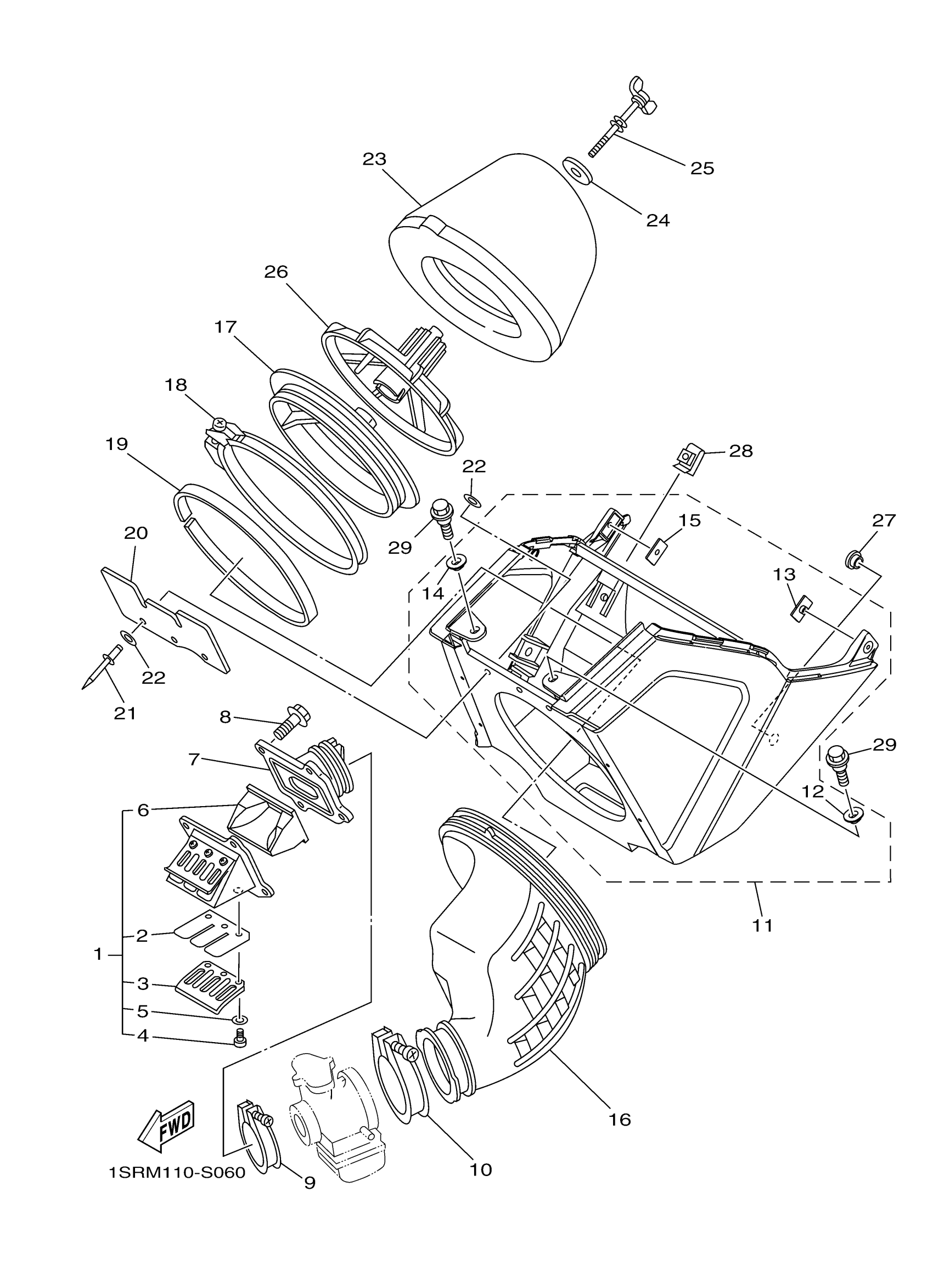

Yamaha YZ125XM (YZ125X) B1B8 2021 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

1C3-13610-20-00

$309.05

2

REED, VALVE

5UN-13613-00-00

$108.03

3

STOPPER, REED VALVE

5MV-13616-10-00

$6.86

4

SCREW, PAN HEAD(78G)

98580-03006-00

Unavailable

5

WASHER, SPRING

92990-03100-00

$5.75

6

SPACER, REED VALVE

1C3-13625-10-00

$42.79

7

JOINT, CARBURETOR

1C3-13565-00-00

$57.79

8

BOLT, FLANGE

95022-06020-00

$3.11

9

HOSE CLAMP ASSY

90450-54007-00

$11.71

10

HOSE CLAMP ASSY

90450-70002-00

$16.91

11

AIR CLEANER CASE A

1SS-14401-00-00

$189.70

12

COLLAR

17D-14449-00-00

$6.29

13

NUT, REAR FENDER

5XE-21635-10-00

$11.84

14

COLLAR

17D-14449-00-00

$6.29

15

NUT, REAR FENDER

5XE-21635-10-00

$11.84

16

JOINT, AIR CLEANER 1

1C3-14453-11-00

Unavailable

17

HOLDER, GUIDE

5NY-14459-00-00

Unavailable

18

BAND

5NY-14455-20-00

Unavailable

19

SPACER

5NY-14442-00-00

Unavailable

20

COVER 1

5NY-14417-01-00

Unavailable

21

RIVET (813)

90267-32070-00

Unavailable

22

WASHER, PLATE 8077743700

90201-03313-00

Unavailable

23

ELEMENT, AIR CLEANER

4XM-14451-01-00

Unavailable

24

WASHER (4H7)

90209-06096-00

Unavailable

25

BOLT, WING

90122-06005-00

Unavailable

26

GUIDE

3JD-14458-01-00

Unavailable

27

GROMMET

90480-10M28-00

$2.80

28

NUT, SPRING (26H)

90183-06023-00

Unavailable

29

BOLT, FLANGE

90105-06170-00

Unavailable
