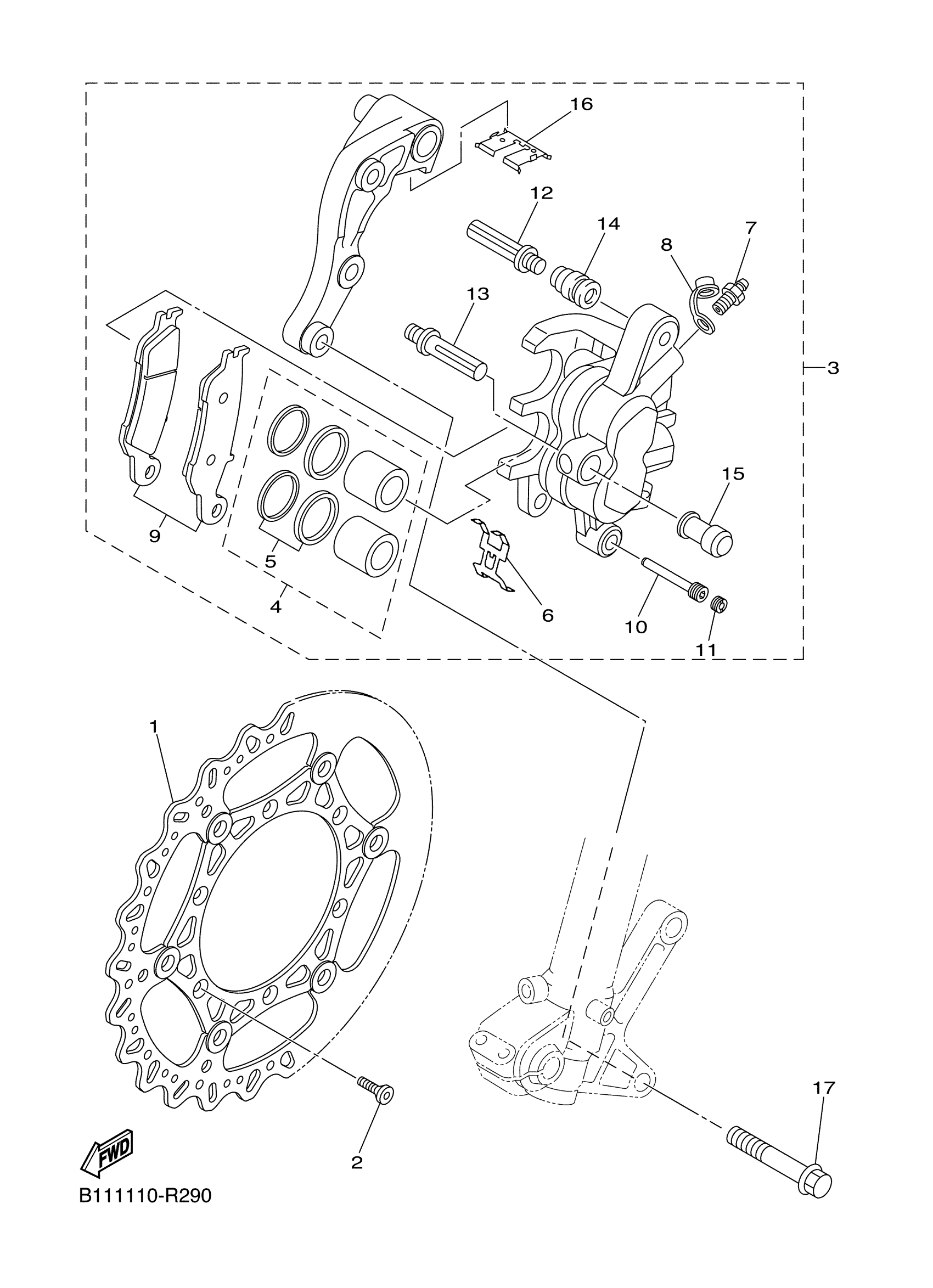

Yamaha YZ125XL (YZ125X) B1B5 2020 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

B11-2581T-00-00

$202.99

2

SCREW, COUNTERSUNK

90151-06079-00

$3.23

3

CALIPER ASSY (LEFT)

B11-2580T-01-00

$384.99

4

PISTON ASSY, CALIP

5XC-25802-00-00

$95.99

5

CALIPER SEAL KIT

5KM-25803-10-00

$20.99

6

SUPPORT, PAD

5DH-25919-00-00

$20.99

7

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

8

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

9

BRAKE PAD KIT

B29-25805-01-00

$42.99

10

PIN, PAD

5DH-25933-00-00

$22.99

11

PLUG

5DH-25916-00-00

$9.99

12

BOLT

3SP-25926-51-00

$13.49

13

BOLT

3SP-25914-51-00

$4.58

14

BOOT, CALIPER

3JD-25917-00-00

$8.99

15

BOOT 2

1UY-25937-51-00

$14.49

16

RETAINER, CALIPER

5XC-25849-G0-00

Unavailable

17

BOLT, FLANGE

90105-08137-00

Unavailable
