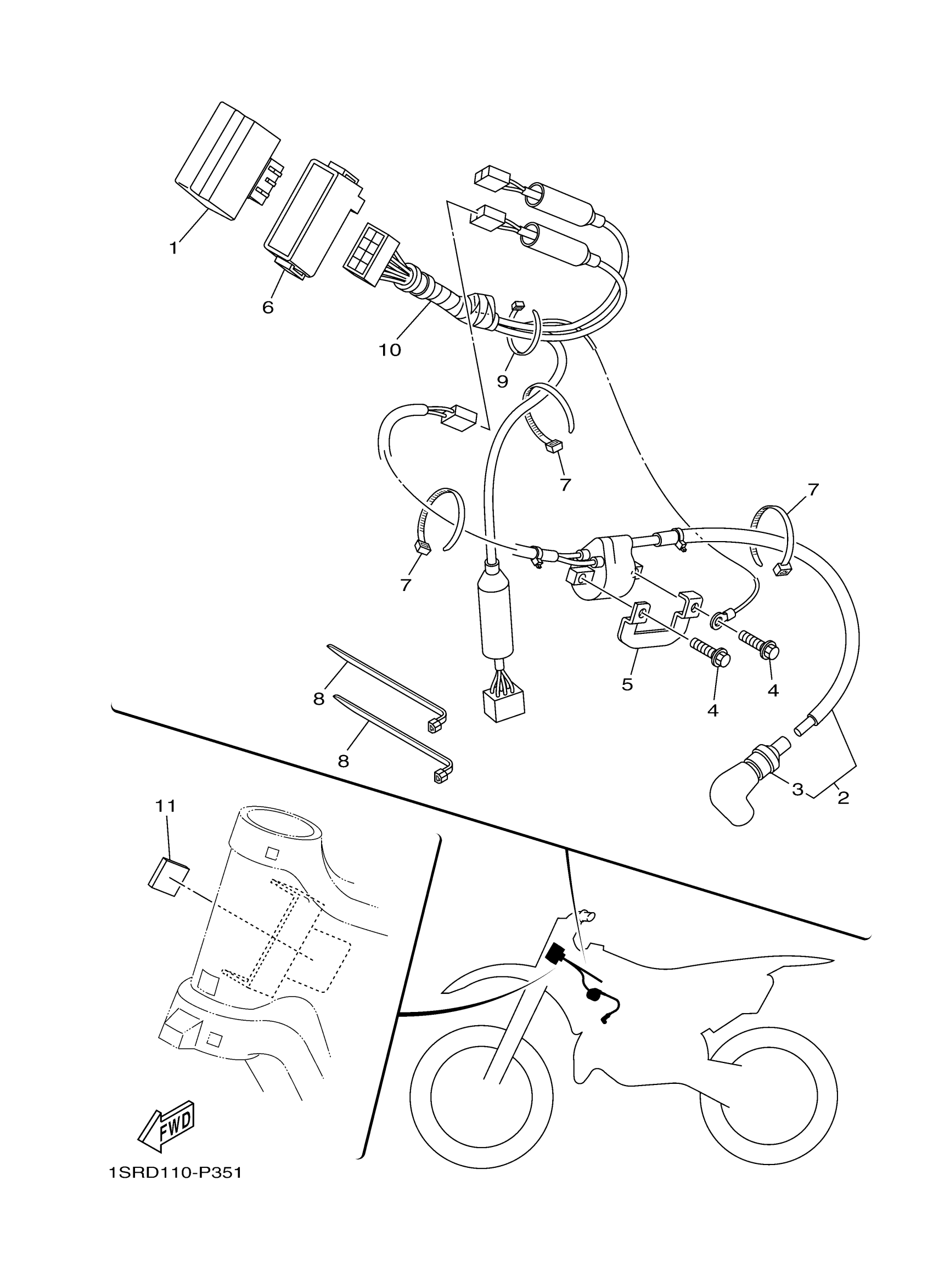

Yamaha YZ125XL (YZ125X) B1B5 2020 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI Unit Assy

B1B-85540-01-00

Unavailable

2

IGNITION COIL ASSY

1C3-82320-04-00

Unavailable

3

PLUG CAP ASSY

8DG-82370-00-00

$41.54

4

BOLT, FLANGE

90105-06060-00

$3.50

5

CORE, SIDE

1C3-8231U-10-00

Unavailable

6

BAND

1C3-85546-00-00

Unavailable

7

CLAMP(MF1)

90464-15152-00

$4.07

8

CLAMP(4FM)

90464-15195-00

$2.57

9

CLAMP

5Y9-12491-00-00

$6.29

10

WIRE, SUB LEAD

1C3-82509-13-00

Unavailable

11

DAMPER

1C3-2139X-00-00

$2.98
