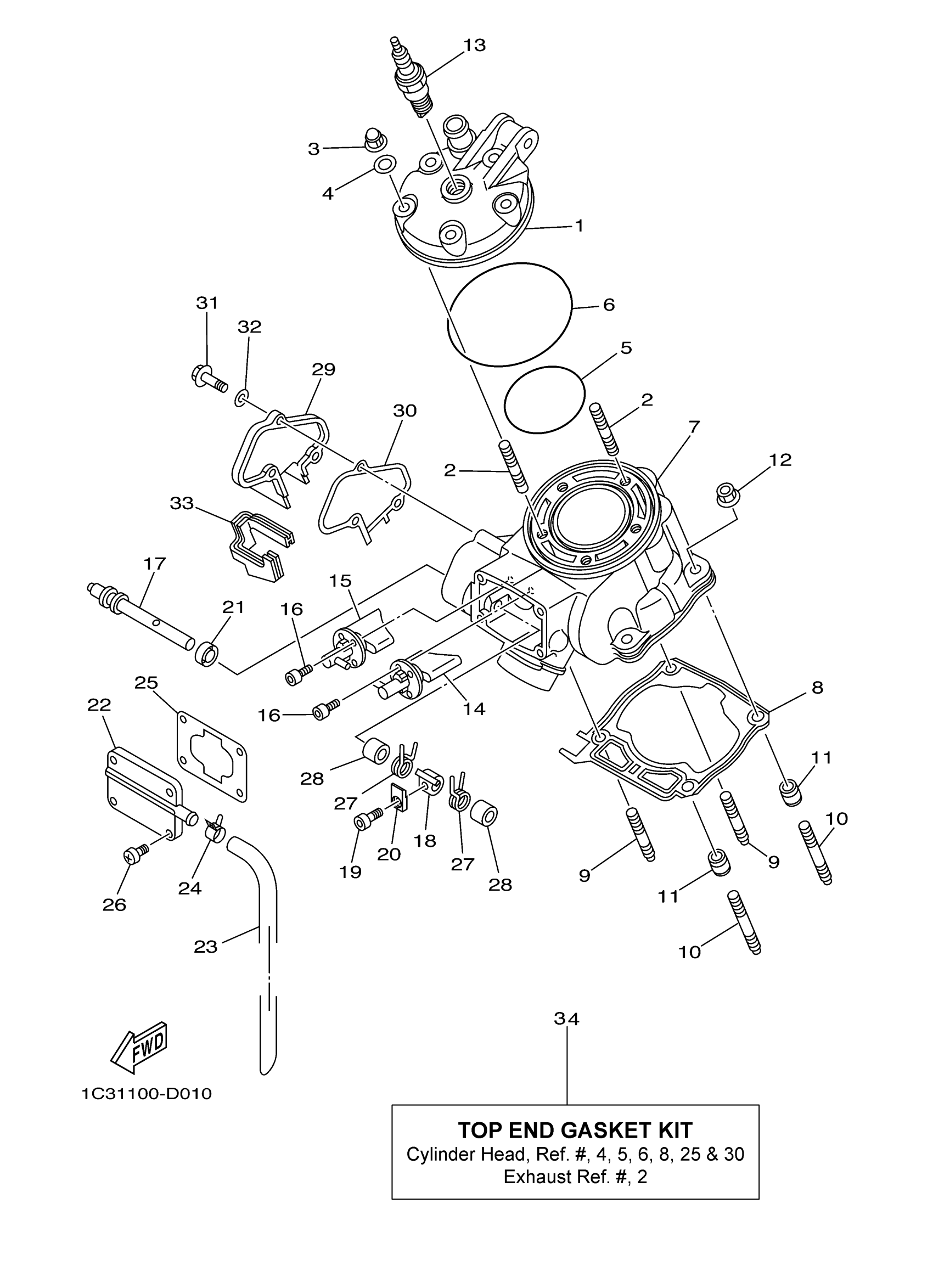

Yamaha YZ125XL (YZ125X) B1B5 2020 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

B1B-11111-00-00

Unavailable

2

BOLT, STUD

90116-08027-00

$9.49

3

NUT, CROWN

90176-08005-00

$2.22

4

WASHER, PLATE

90201-080L8-00

$4.41

5

O-RING (4U8)

93210-63442-00

$7.49

6

O-RING(3LD)

93210-90785-00

$11.49

7

CYLINDER 1

1C3-11311-21-00

$747.99

8

GASKET, CYLINDER

1C3-11351-00-00

$19.99

9

BOLT, STUD

90116-08031-00

$9.49

10

BOLT, STUD

90116-08028-00

$8.49

11

PIN, DOWEL

99590-10114-00

Unavailable

12

NUT

90179-08019-00

$7.49

13

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

Unavailable

14

VALVE ASSY

B1B-1131D-00-00

$132.99

15

VALVE ASSY 2

B1B-1132D-00-00

$132.99

16

BOLT(47X)

91312-05012-00

Unavailable

17

SHAFT 1

5HD-1131V-00-00

Unavailable

18

LEVER, LINK

4SS-11832-00-00

Unavailable

19

BOLT, SOCKET

91317-04010-00

Unavailable

20

HOLDER

5UN-11395-00-00

Unavailable

21

OIL SEAL (8X12X3-371)

93104-08040-00

Unavailable

22

COVER

4SS-1131M-01-00

Unavailable

23

PIPE, BREATHER 1

4JY-11166-00-00

Unavailable

24

CLIP(MG5)

90467-14117-00

Unavailable

25

GASKET

1C3-11354-00-00

Unavailable

26

SCREW, BIND (8K2)

98902-05016-00

Unavailable

27

SPRING, TORSION

90508-16134-00

Unavailable

28

COLLAR (7G5)

90387-08785-00

Unavailable

29

HOUSING 2

1C3-11992-00-00

Unavailable

30

GASKET

1C3-11993-00-00

Unavailable

31

BOLT(6A1)

97095-05016-00

Unavailable

32

WASHER, PLAIN (646)

92990-05600-00

Unavailable

33

SEAL, HOUSING

1C3-11995-00-00

Unavailable

34

TOP END GASKET KIT

1C3-W0001-00-00

Unavailable
