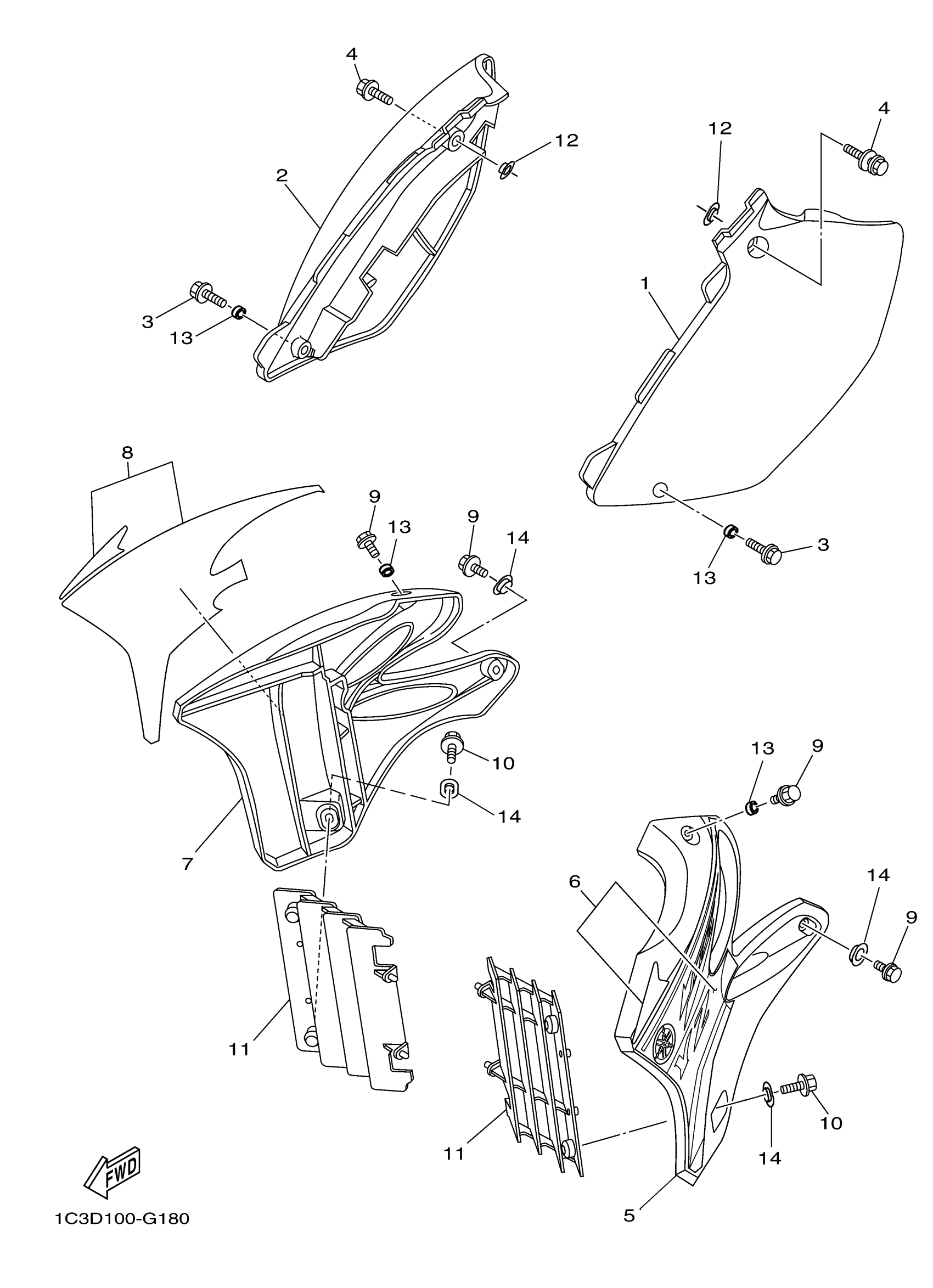

Yamaha YZ125X1 (YZ125) 1C3D 2008 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5NY-21711-00-00

$26.76

2

COVER, SIDE 2

5NY-21721-00-00

$26.70

3

BOLT, FLANGE

90105-06103-00

$4.02

4

BOLT, WITH WASHER

90119-08095-00

$5.81

5

SIDE COVER ASSY 3

5XE-21730-00-00

$32.02

6

GRAPHIC SET 1

1C3-2173L-00-00

Unavailable

7

SIDE COVER ASSY 4

5XE-21740-00-00

$32.89

8

GRAPHIC SET 2

1C3-2174L-00-00

Unavailable

9

BOLT, FLANGE

90105-06064-00

Unavailable

10

SCREW, WITH WASHER

90159-06021-00

$2.41

11

PANEL 1

5NL-2172A-20-00

$17.18

12

COLLAR

5BE-21749-00-00

$4.48

13

COLLAR

90387-06009-00

$7.37

14

COLLAR

5TA-21749-00-00

$9.00
