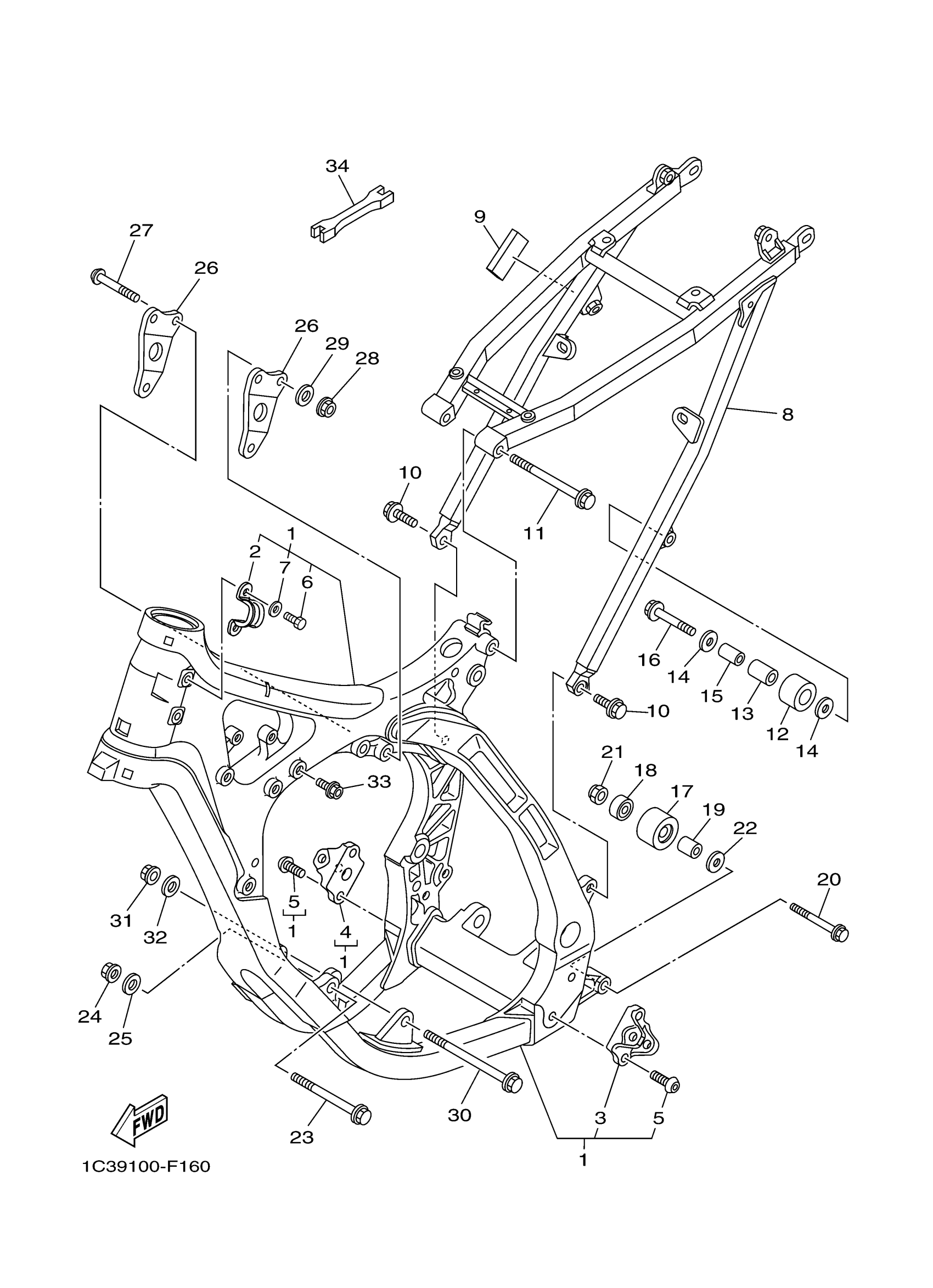

Yamaha YZ125X1 (YZ125) 1C3D 2008 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

1C3-21101-50-00

Unavailable

2

CLAMP, WIRE HARNESS 2

1C3-21336-00-00

$10.99

3

BRACKET, FOOTREST

1C3-21447-10-00

$37.99

4

BRACKET, FOOTREST

1C3-21448-10-00

$37.99

5

SCREW

90149-10033-00

$5.60

6

BOLT(4GV)

97017-05012-00

$8.49

7

WASHER, PLAIN (646)

92990-05600-00

$0.80

8

REAR FRAME COMP.

1C3-21190-90-00

Unavailable

9

DAMPER

5GJ-21717-00-00

$5.49

10

BOLT, FLANGE

90105-08085-00

$7.49

11

BOLT, FLANGE

90105-08132-00

$5.60

12

TENSIONER

30X-22178-00-00

$35.99

13

BUSH

4V4-22184-00-00

$4.47

14

WASHER, PLATE

90201-08045-00

$5.60

15

COLLAR

90387-08041-00

$8.49

16

BOLT, FLANGE(4KG)

95024-08040-00

Unavailable

17

TENSIONER

3JD-22178-20-00

Unavailable

18

BEARING (3X3)

93300-60804-00

Unavailable

19

COLLAR(1NL)

90387-086N4-00

Unavailable

20

BOLT, FLANGE

90105-08133-00

Unavailable

21

NUT, U

95617-08100-00

Unavailable

22

WASHER, PLATE

90201-08043-00

Unavailable

23

BOLT, FLANGE

90105-10175-00

Unavailable

24

NUT(4KG)

90179-10658-00

Unavailable

25

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

26

BRACKET, REAR UPPER 1

1C3-21425-00-00

Unavailable

27

BOLT

90111-08028-00

Unavailable

28

NUT(4KM)

90179-08674-00

Unavailable

29

WASHER, PLATE

90201-08055-00

Unavailable

30

BOLT, FLANGE

90105-10176-00

Unavailable

31

NUT(4KG)

90179-10658-00

Unavailable

32

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

33

NUT

1C3-21244-20-00

Unavailable

34

WRENCH, HEXAGON

5ET-28166-10-00

Unavailable
