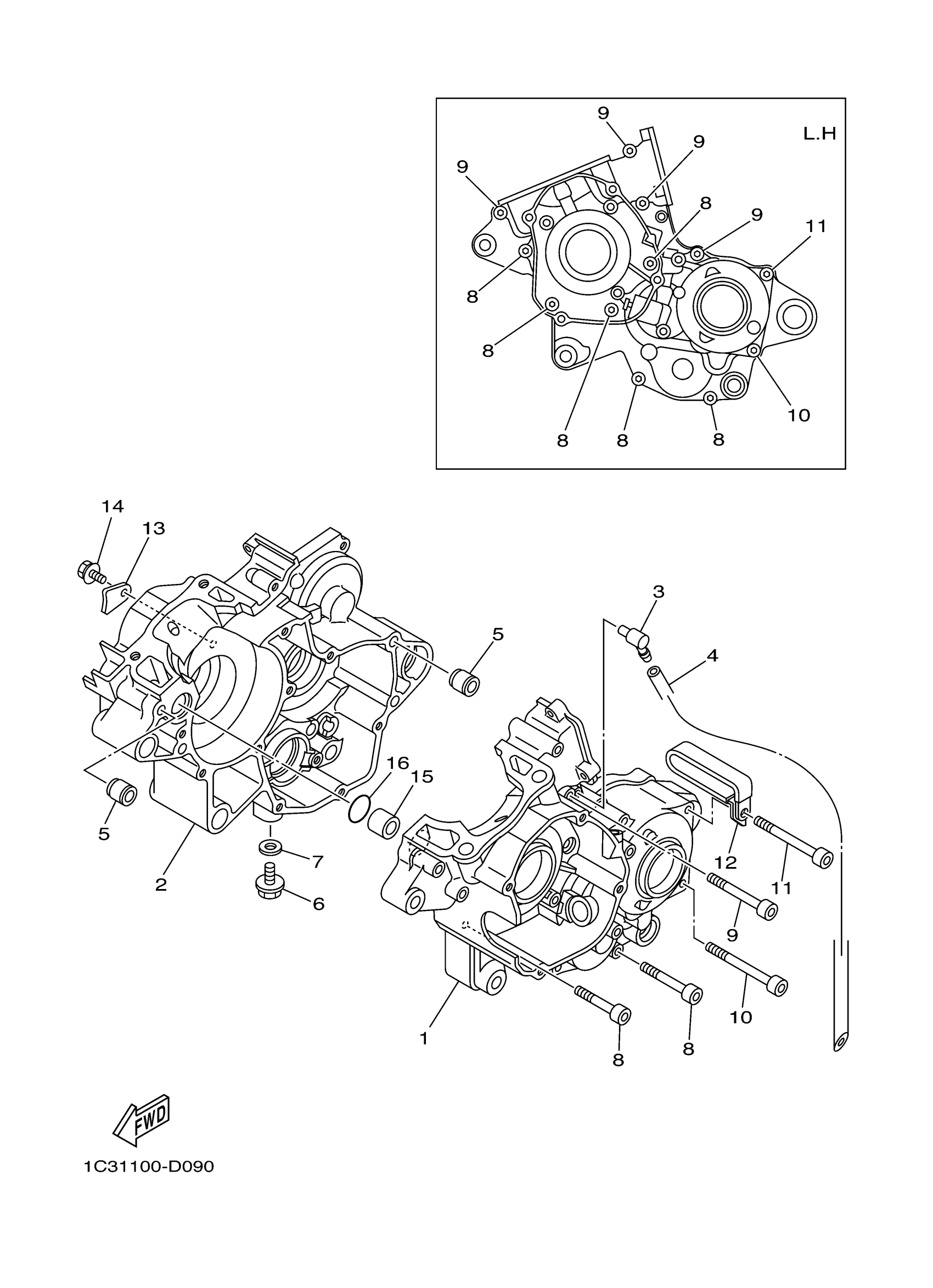

Yamaha YZ125X1 (YZ125) 1C3D 2008 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

1C3-15111-02-00

Unavailable

2

CRANKCASE 2

1C3-15121-01-00

$906.99

3

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

4

HOSE (L1500)

90445-084J0-00

$18.99

5

PIN, DOWEL(2VG)

99530-10116-00

$4.25

6

BOLT, FLANGE

95022-10016-00

$8.49

7

GASKET

90430-10188-00

$6.99

8

BOLT

91312-06045-00

$4.08

9

TORNILLO ALLEN

91312-06055-00

$5.60

10

BOLT, SOCKET

91317-06065-00

$3.76

11

BOLT

91312-06075-00

$4.88

12

CLAMP(4NX)

90461-10136-00

$23.99

13

HOLDER

4V4-15118-00-00

$29.99

14

BOLT, FLANGE

95817-06012-00

$1.43

15

PIN, DOWEL

99590-17016-00

$7.49

16

O-RING (1J7)

93210-16314-00

Unavailable
