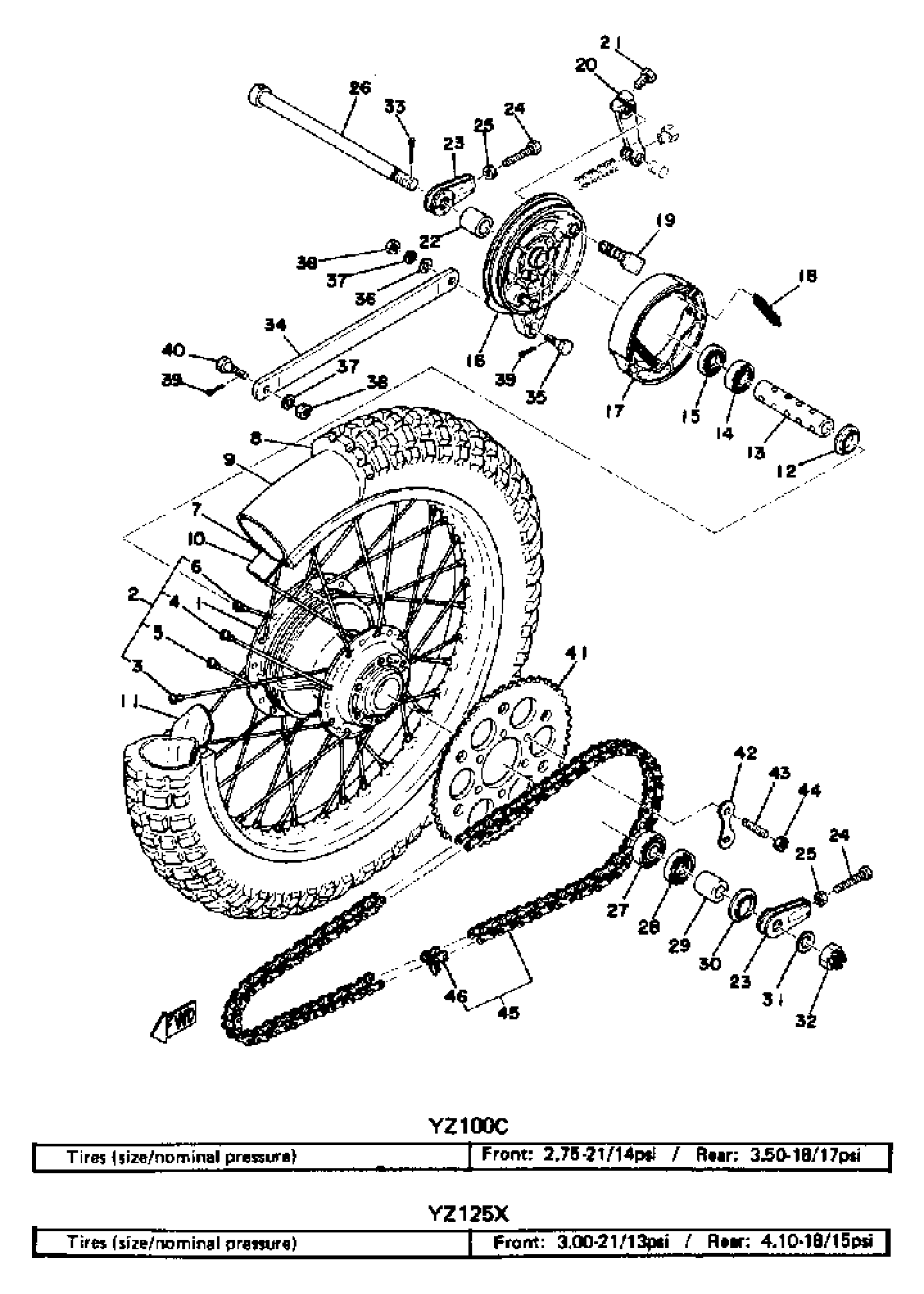

Yamaha YZ125X (YZ125X) 1976 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(1G8-25311-00-98)

Unavailable

2

SPOKE SET, REAR

537-25304-01-00

Unavailable

3

SPOKE SET, INNER 2

(537-25396-90-00)

Unavailable

4

SPOKE SET, OUTER 2

(537-25397-90-00)

Unavailable

5

SPOKE SET, INNER 1

(537-25391-90-00)

Unavailable

6

SPOKE SET, OUTER 1

(537-25392-90-00)

Unavailable

7

RIM 1.85X18

94418-18245-00

Unavailable

8

CS 350X18 C-755-1

(94135-18551-00)

Unavailable

8

410X18 DUN SR SPRT

(94141-18171-00)

Unavailable

9

TUBE (2RH)

94232-18113-00

$29.99

10

BAND, RIM (2J4)

94340-18086-00

$17.99

11

SPACER, BEAD

2X3-25394-00-00

Unavailable

12

FLANGE, SPACER

146-25115-00-00

$6.99

13

SPACER(23A)

90560-15312-00

$38.99

14

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

15

OIL SEAL (22X35X5)

93104-22018-00

Unavailable

16

PLATE, BRAKE SHOE

(248-25321-00-35)

Unavailable

16

BRAKE SHOE PLATE ASSY

437-25026-10-35

Unavailable

17

BRAKE SHOE SET-2PCS

183-W2536-00-00

Unavailable

18

SPRING (5T9)

90506-17328-00

Unavailable

19

CAMSHAFT

26A-25351-00-00

Unavailable

20

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

21

BOLT, HEXAGON

97017-06025-00

Unavailable

22

COLLAR

90387-15524-00

Unavailable

23

PULLER, CHAIN 1

537-25388-00-00

Unavailable

24

BOLT

90101-08060-00

Unavailable

25

. NUT

95380-08700-00

Unavailable

26

AXLE, WHEEL

537-25381-01-00

Unavailable

27

BEARING

93306-30212-00

Unavailable

28

SEAL,OIL

93106-26005-00

Unavailable

29

COLLAR

90387-15523-00

Unavailable

30

COVER, DUST

401-25367-00-00

Unavailable

31

WASHER (525)

90201-15238-00

Unavailable

32

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

33

PIN, COTTER

91490-30030-00

Unavailable

34

BAR, TENSION

(537-25371-00-00)

Unavailable

35

BOLT (537 TENSION BAR)

90109-08406-00

Unavailable

36

WASHER, PLAIN

92990-08200-00

Unavailable

37

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

38

. NUT

95380-08700-00

Unavailable

39

PIN, COTTER

91490-20025-00

Unavailable

40

BOLT 1092537300

90109-08063-00

Unavailable

41

SPROCKET, DRIVEN 44T

(1G8-25444-00-00)

Unavailable

41

SPROCKET, DRIVEN 46T (SPECIAL XX ALUMINUM) (46T)

1G8-25446-01-XX

Unavailable

41

SPROCKET, DRIVEN 46T (SPECIAL XX ALUMINUM) (46T)

1G8-25446-01-XX

Unavailable

41

SPROCKET, DRIVEN 48T (SPECIAL XX ALUMINUM) (48T)

1G8-25448-00-XX

Unavailable

41

SPROCKET, DRIVEN 50T

(1G8-25450-00-XX)

Unavailable

41

SPROCKET, DRIVEN 38T

(1J4-25438-00-00)

Unavailable

41

SPROCKET, DRIVEN 38T

(1J4-25438-00-XX)

Unavailable

41

SPROCKET, DRIVEN 40T

(1J4-25440-01-XX)

Unavailable

41

SPROCKET, DRIVEN 40T

(1J4-25440-01-XX)

Unavailable

41

SPROCKET, DRIVEN 42T

(1J4-25442-00-00)

Unavailable

41

SPROCKET, DRIVEN 42T

(1J4-25442-00-XX)

Unavailable

41

SPROCKET, DRIVEN 49T (1W1-25451-00)

1W1-25449-00-XX

Unavailable

41

SPROCKET, DRIVEN 51T

(1W1-25451-00-XX)

Unavailable

41

SPROCKET, DRIVEN 53T

(1W1-25453-00-XX)

Unavailable

42

WASHER

537-25412-00-00

Unavailable

43

BOLT, STUD (537 HUB)

90116-10221-00

Unavailable

44

NUT (682)

95380-10700-00

Unavailable

45

DRIVE CHAIN 520-90L

(94585-20090-00)

Unavailable

45

520D5-100L DID (94515-20100)

9Y585-20099-00

Unavailable

46

. JOINT CHAIN

94680-11001-00

Unavailable
