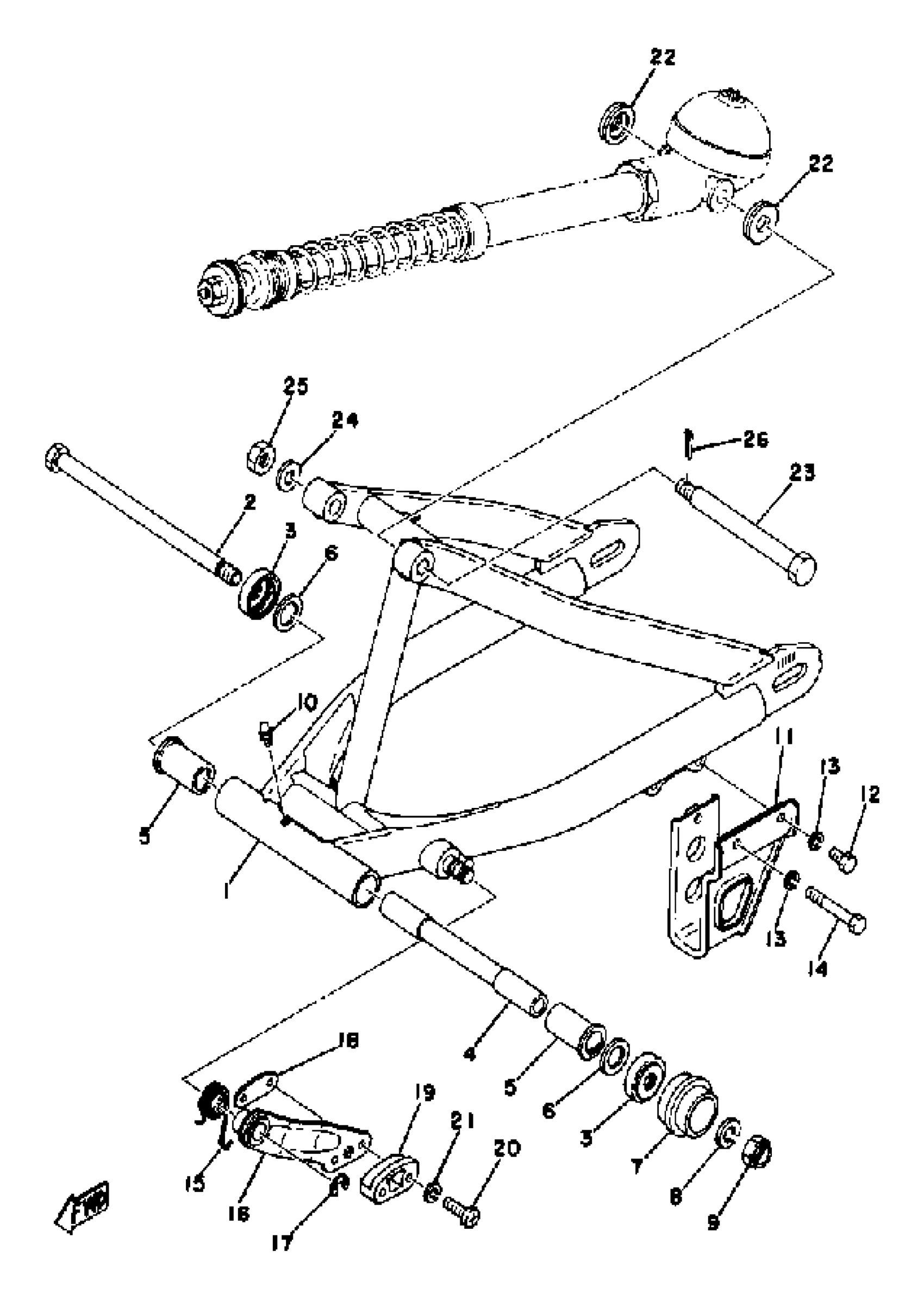

Yamaha YZ125X (YZ125X) 1976 REAR ARM Diagram

#

Description
Price

1

REAR ARM

(1G8-22110-01-33)

Unavailable

1

REAR ARM

(1J4-22110-00-33)

Unavailable

2

SHAFT, PIVOT

537-22141-01-00

Unavailable

3

COVER, THRUST 1

401-22128-01-00

$29.99

4

BUSH 2

18G-22124-00-00

Unavailable

5

BUSHING (401-22123-00)

90386-18028-00

$26.99

6

SHIM

401-22127-00-00

$7.99

7

SEAL, GUARD

537-22151-00-00

Unavailable

8

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

9

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

10

NIPPLE, GREASE

93700-06005-00

$12.49

11

GUARD, CHAIN

2W6-22153-00-00

Unavailable

12

BOLT(8CP)

97017-06014-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable

15

SPRING, TORSION

90508-32140-00

Unavailable

16

ARM, TENSIONER

(1G8-22179-00-00)

Unavailable

17

CIRCLIP (137)

93430-10015-00

Unavailable

18

GUARD, CHAIN

1G8-22153-01-00

Unavailable

19

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

20

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

21

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

22

COVER, THRUST 1

483-22128-00-00

Unavailable

23

BOLT

90109-08300-00

Unavailable

24

WASHER, PLATE (8L8)

90201-087A9-00

Unavailable

25

NUT(6L2)

95333-08600-00

Unavailable

26

PIN, COTTER

91490-20025-00

Unavailable
