FRONT FORK YZ125X

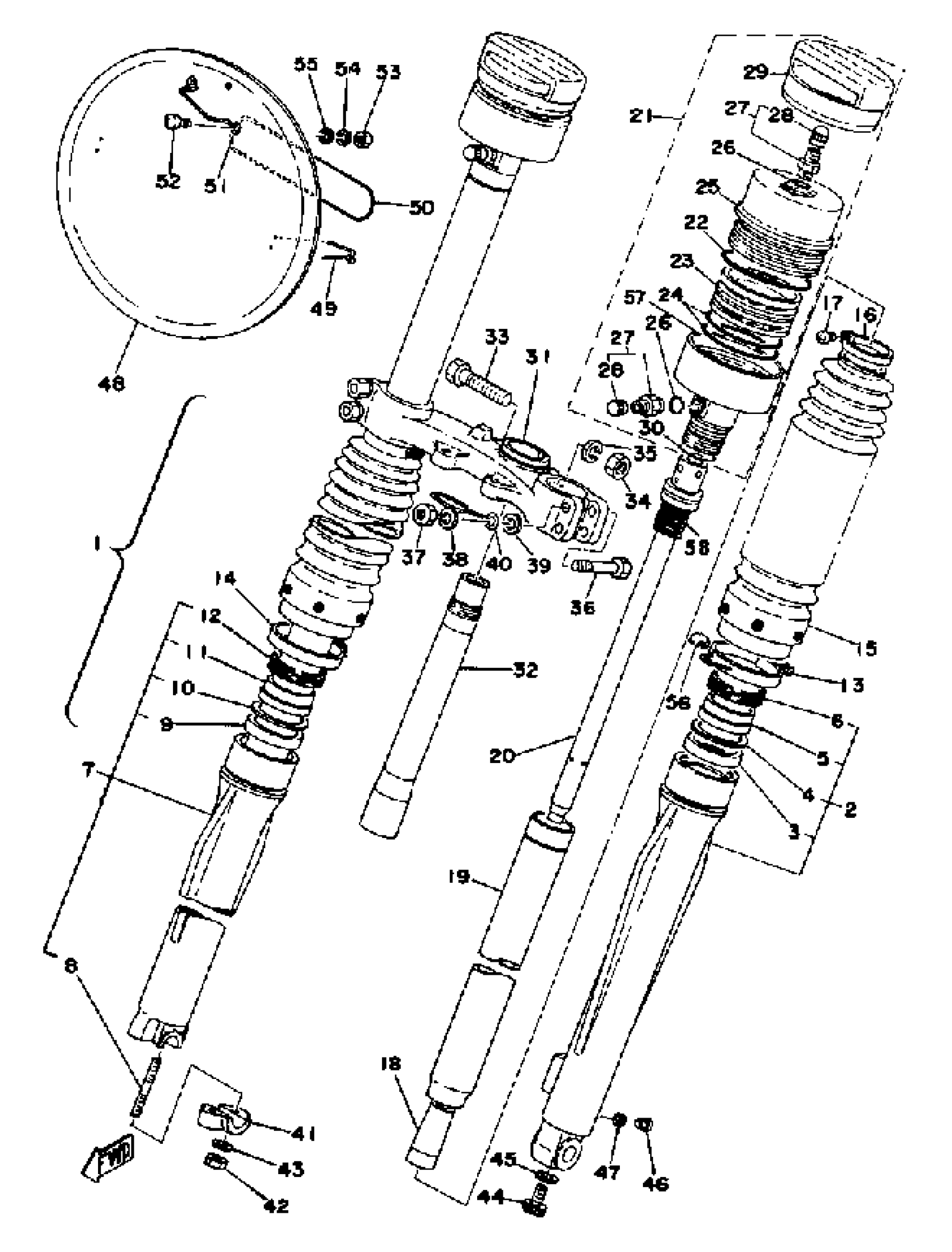

Yamaha YZ125X (YZ125X) 1976 FRONT FORK YZ125X Diagram
#
1
FRONT FORK ASSEMBLY
(1G8-23101-L1-00)
Unavailable
2
TUBE, OUTER 1
(1G8-23126-L1-00)
Unavailable
3
.. OIL SEAL
509-23145-L0-00
Unavailable
4
WASHER, OIL SEAL
(509-23146-L0-00)
Unavailable
5
SEAL, DUST
(1G8-23144-L0-00)
Unavailable
6
COVER, DUST SEAL
(1G8-23148-L0-00)
Unavailable
7
TUBE, OUTER 2
(1G8-23136-L1-00)
Unavailable
9
.. OIL SEAL
509-23145-L0-00
Unavailable
10
WASHER, OIL SEAL
(509-23146-L0-00)
Unavailable
11
SEAL, DUST
(1G8-23144-L0-00)
Unavailable
12
COVER, DUST SEAL
(1G8-23148-L0-00)
Unavailable
13
HOLDER, CABLE 1
(583-23318-00-00)
Unavailable
14
BAND
509-23489-L0-00
Unavailable
15
BOOT, FRONT FORK
(1G8-23191-L0-00)
Unavailable
16
BAND, BOOT
341-92090-60-00
Unavailable
17
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
18
SPINDLE, TAPER
(509-23173-L0-00)
Unavailable
19
INNER TUBE 1
(1G8-23110-L0-00)
Unavailable
20
CYLINDER, FRONT FORK
(1G8-23170-L0-00)
Unavailable
21
CHAMBER ASSEMBLY
(509-23180-L1-00)
Unavailable
22
O-RING
(509-23188-L0-00)
Unavailable
23
FREE-PISTON, FRONT FORK
(509-23189-L0-00)
Unavailable
24
O-RING
(509-23147-L0-00)
Unavailable
25
CAP, CHAMBER
(509-23187-L0-00)
Unavailable
26
. O-RING
509-23163-L0-00
Unavailable
27
. AIR VALVE
509-23190-L0-00
Unavailable
28
CAP, AIR VALVE
509-23184-L0-00
Unavailable
29
COVER, VALVE
(509-23185-L1-00)
Unavailable
30
GASKET
240-23114-00-00
Unavailable
31
BRACKET, LOWER
(1G8-23345-L0-98)
Unavailable
32
SHAFT, STEERING
(1E6-23341-00-00)
Unavailable
33
BOLT 2
(322-23356-00-00)
Unavailable
34
NUT
(322-23357-00-00)
Unavailable
35
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
36
BOLT (1E6)
90101-08340-00
Unavailable
37
NUT, HEXAGON
(90170-08180-00)
Unavailable
38
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
39
.. WASHER, PLATE
92990-08600-00
Unavailable
40
HOLDER, CABLE 2
(509-23319-00-00)
Unavailable
41
. HOLDER, AXLE (291-23167-60)
291-23167-61-00
Unavailable
42
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
43
.. WASHER, PLATE
92990-08600-00
Unavailable
44
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
45
GASKET
509-23158-L0-00
Unavailable
46
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
47
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
48
PLATE, NUMBER
(1G8-23485-00-00)
Unavailable
49
STAY, PLATE
431-23486-02-00
Unavailable
50
O-RING (802)
93210-99103-00
Unavailable
51
HOLDER, CABLE 2
(1G8-23319-00-00)
Unavailable
52
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
53
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
54
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
55
. WASHER, PLAIN
92990-05200-00
Unavailable
56
HOLDER
(509-26393-00-00)
Unavailable
57
CASE, CHAMBER
(509-23186-L1-00)
Unavailable
58
SPRING, REBOUND
(1G8-23151-L0-00)
Unavailable
