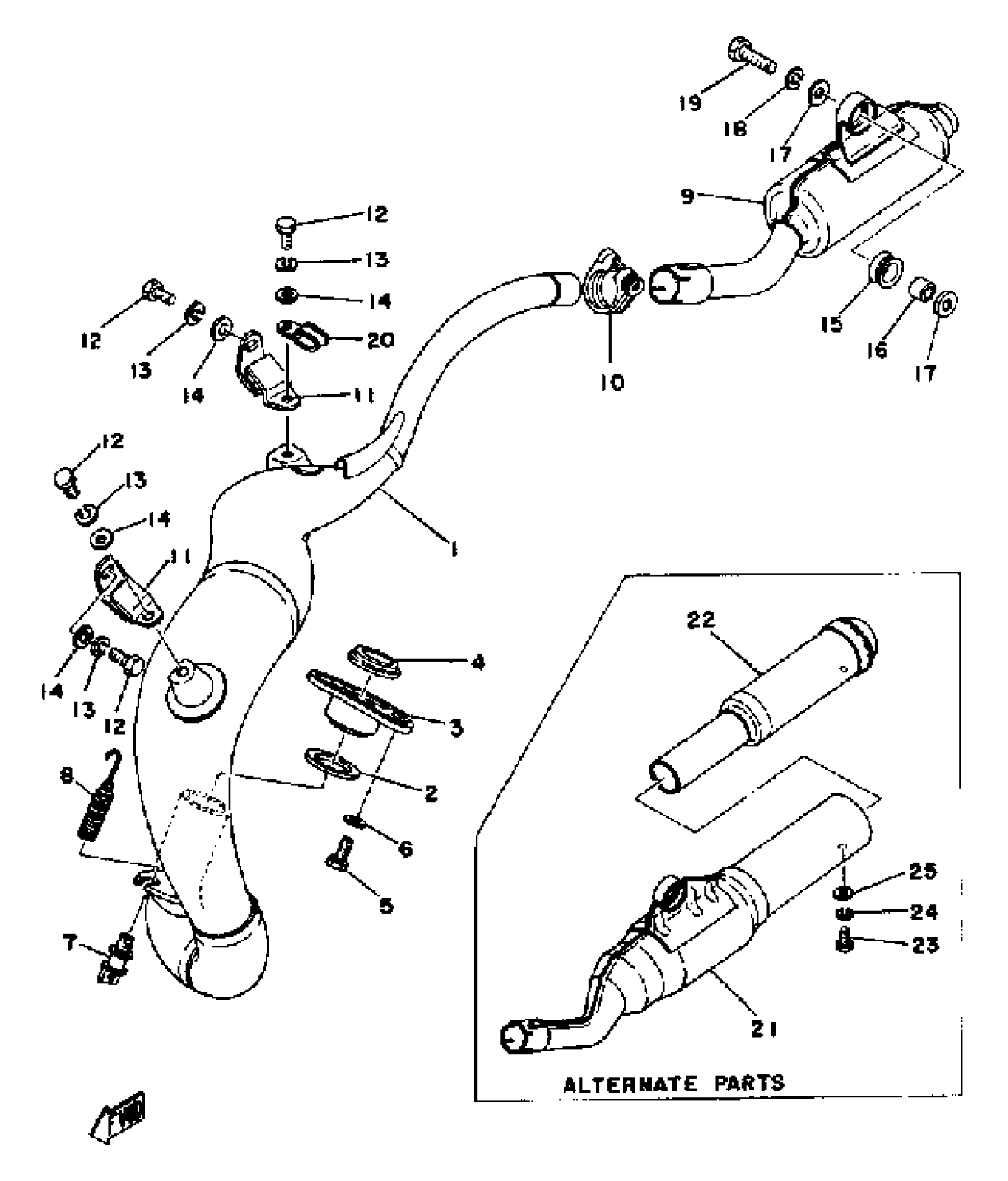

Yamaha YZ125X (YZ125X) 1976 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSEMBLY L
(1G8-14610-00-00)
Unavailable
1
EXHAUST PIPE ASSEMBLY L
(1J4-14610-00-00)
Unavailable
3
NUT, RING
2K5-14612-00-00
Unavailable
6
WASHER, SPRING
92995-06100-00
Unavailable
7
BOLT, HOOK
409-14684-00-00
Unavailable
8
SPRING,TENSION
90507-20012-00
Unavailable
9
SILENCER, EXHAUST (1G8-14753-00)
1G8-14753-01-00
Unavailable
10
BAND, SILENCER
537-14788-00-00
Unavailable
11
STAY, MUFFLER 1
537-14771-01-00
Unavailable
13
WASHER, SPRING
92995-06100-00
Unavailable
15
DAMPER
565-14747-00-00
Unavailable
16
COLLAR (437)
90387-08258-00
Unavailable
17
WASHER, PLATE(8AT)
90201-081R9-00
Unavailable
18
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
19
BOLT, HEXAGON
97013-08030-00
Unavailable
20
CLAMP (6A4)
90461-06M01-00
Unavailable
21
SILENCER, EXHAUST
(1G8-14753-10-00)
Unavailable
22
PIPE, OUTLET
(1G8-14752-10-00)
Unavailable
23
BOLT (661)
97013-06012-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
