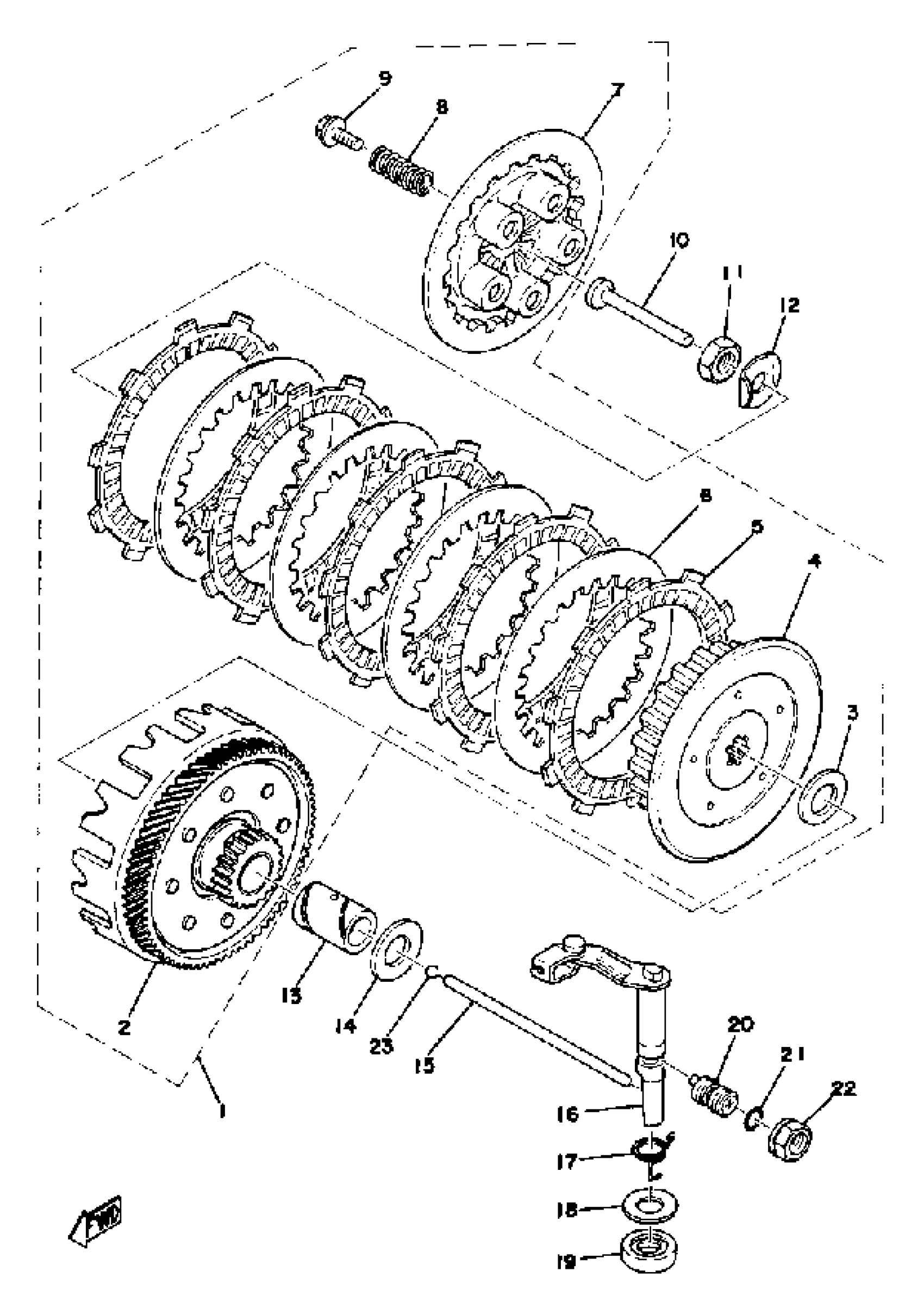

Yamaha YZ125X (YZ125X) 1976 CLUTCH Diagram
#
Description
Price
1
CLUTCH ASSEMBLY
(1G8-16301-00-00)
Unavailable
1
CLUTCH ASSEMBLY
(1J4-16301-00-00)
Unavailable
2
PRI DRIVEN GEAR
(1G8-16150-00-00)
Unavailable
2
. PRI DRIVEN GEAR (74T)
525-16150-00-00
Unavailable
4
. BOSS, CLUTCH
1G8-16371-00-00
Unavailable
4
. BOSS, CLUTCH
1J4-16371-00-00
Unavailable
7
. PLATE, PRESSURE 1
525-16351-00-00
Unavailable
7
. PLATE, PRESSURE 1 000
(537-16351-00-00)
Unavailable
10
ROD,PUSH (1)
137-16356-00-00
Unavailable
11
NUT, HEXAGON
90170-14171-00
Unavailable
12
WASHER, LOCK (2K6)
90215-14204-00
Unavailable
13
SPACER (525)
90560-17147-00
Unavailable
14
WASHER, PLATE(2YY)
90201-180P2-00
Unavailable
15
ROD, PUSH 2
1W1-16357-00-00
Unavailable
15
PUSH ROD ASSEMBLY
99999-00910-00
Unavailable
16
PUSH LEVER ASSEMBLY
525-16380-00-00
Unavailable
17
SPRING, TORSION
90508-14132-00
Unavailable
18
WASHER PLATE 150251530000
90201-14217-00
Unavailable
19
OIL SEAL (14X25X5-2H7)
93104-14059-00
Unavailable
20
SCREW
90149-12097-00
Unavailable
21
O-RING (611)
93210-10096-00
Unavailable
22
NUT
90179-12197-00
Unavailable
23
BALL
93503-16003-00
Unavailable
