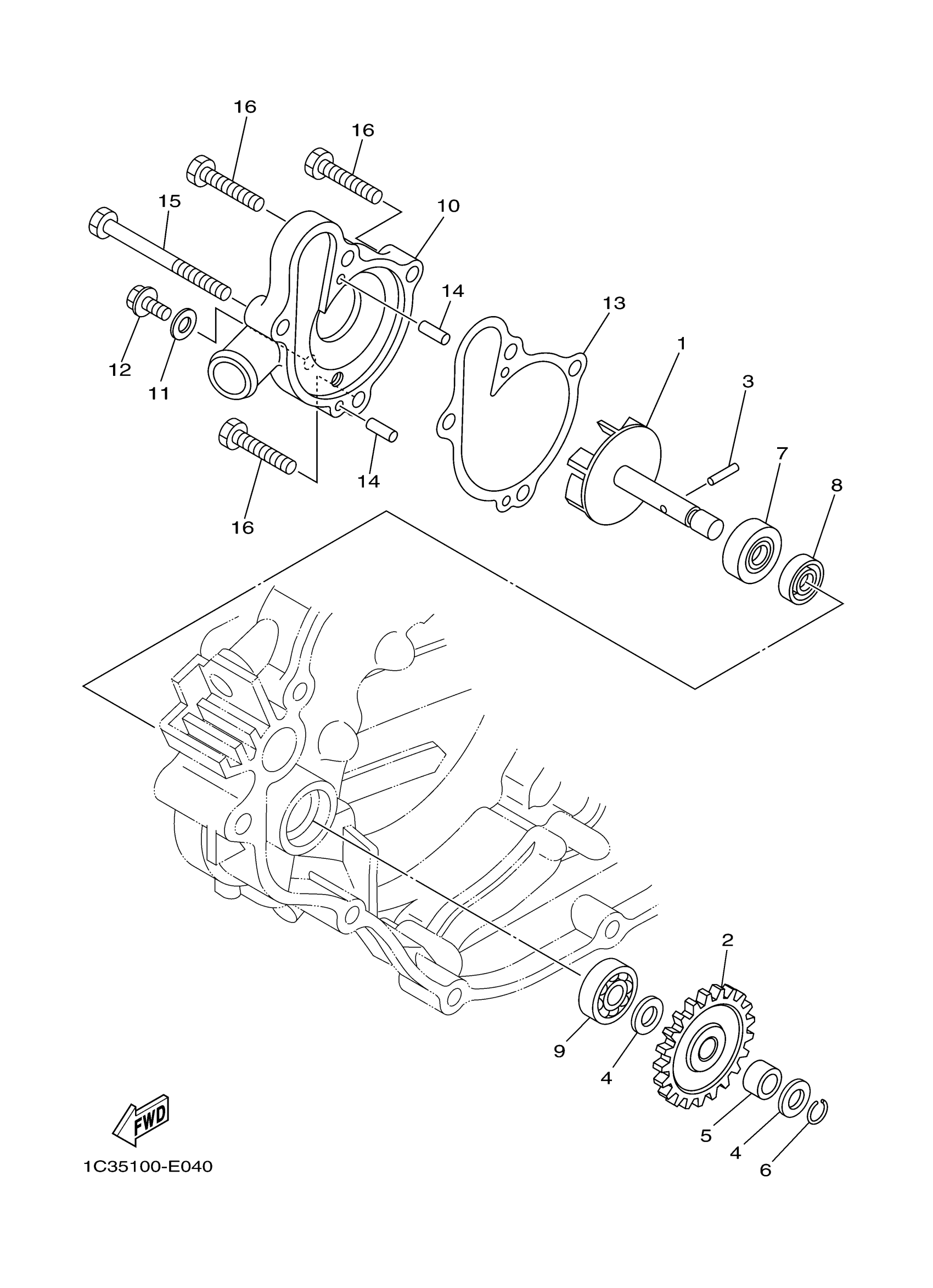

Yamaha YZ125W1 (YZ125) 1C39 2007 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASSY

1C3-12450-01-00

$76.99

2

GEAR

1C3-12453-10-00

Unavailable

3

PIN,DOWEL (603)

93603-12007-00

$2.55

4

WASHER, PLATE (5F7)

90201-08512-00

$8.49

5

COLLAR

90387-08032-00

$8.49

6

CIRCLIP

93440-07182-00

$3.78

7

OIL SEAL

93102-08004-00

$9.49

8

OIL SEAL (30X)

93102-08307-00

$7.49

9

BEARING

93300-60801-00

$21.99

9

BEARING

93300-60801-00

$21.99

10

COVER, HOUSING

1C3-12422-00-00

$58.99

11

GASKET 256113960000

90430-06014-00

Unavailable

12

BOLT, FLANGE

95022-06010-00

$5.60

13

GASKET, HOUSING COVER 2

1C3-12428-00-00

$7.99

14

PIN,DOWEL (603)

93604-10011-00

$8.49

15

BOLT, FLANGE

95022-06065-00

Unavailable

16

BOLT, FLANGE

95022-06025-00

Unavailable
