Description

Price

1

GEAR, KICK IDLE

1C3-15651-00-00

$92.99

2

WASHER, PLATE (15A)

90201-175F6-00

$10.49

3

CIRCLIP(1EY)

99009-17400-00

$4.73

4

KICK AXLE ASSY

1C3-15660-00-00

$98.99

5

GEAR, KICK

1C3-15641-00-00

$60.99

6

CLIP 315156870000

90468-26048-00

$8.49

7

SPRING, TORSION (4F2)

90508-26450-00

$11.49

8

WASHER, PLATE (25G)

90201-171G4-00

$9.49

9

SPACER

1C3-15666-00-00

$7.99

10

OIL SEAL (15A)

93102-17263-00

$10.49

11

KICK CRANK ASSY

4DB-15620-10-00

$217.99

12

BOSS, KICK CRANK

4DB-15621-03-00

Unavailable

13

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

14

BALL (12R)

93507-32031-00

$4.73

15

O-RING (341)

93210-15171-00

$7.49

16

SCREW, COUNTERSUNK

90151-06045-00

Unavailable

17

BOLT, HEXAGON

97017-06012-00

Unavailable

18

WASHER, PLATE

90201-06020-00

Unavailable

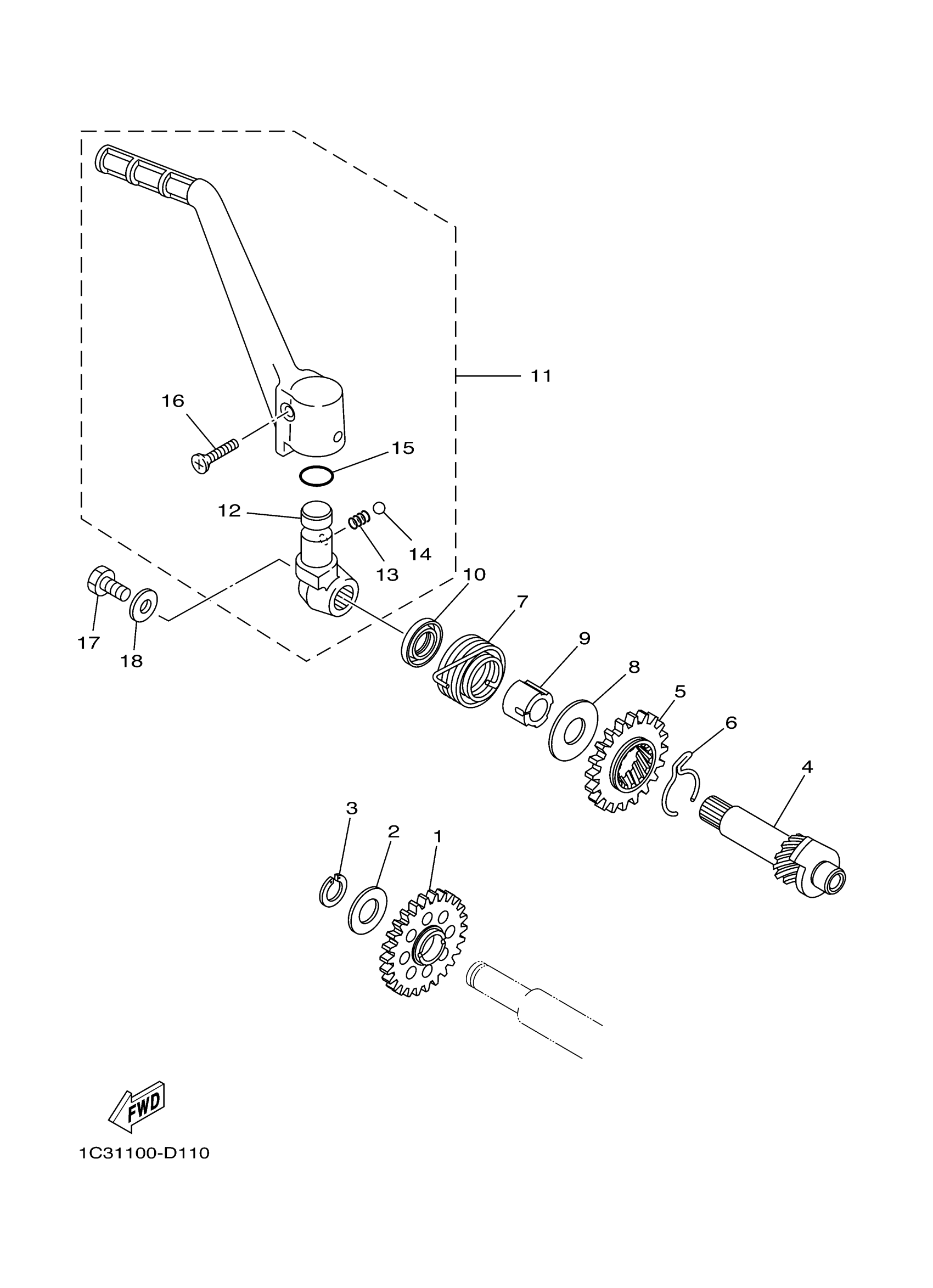

Yamaha YZ125W1 (YZ125) 1C39 2007 STARTER Diagram

GEAR, KICK IDLE

WASHER, PLATE (15A)

CIRCLIP(1EY)

KICK AXLE ASSY

GEAR, KICK

CLIP 315156870000

SPRING, TORSION (4F2)

WASHER, PLATE (25G)

SPACER

OIL SEAL (15A)

KICK CRANK ASSY

BOSS, KICK CRANK

SPRING COMPRESSION278156220000

BALL (12R)

O-RING (341)

SCREW, COUNTERSUNK

BOLT, HEXAGON

WASHER, PLATE
