FRONT FORK

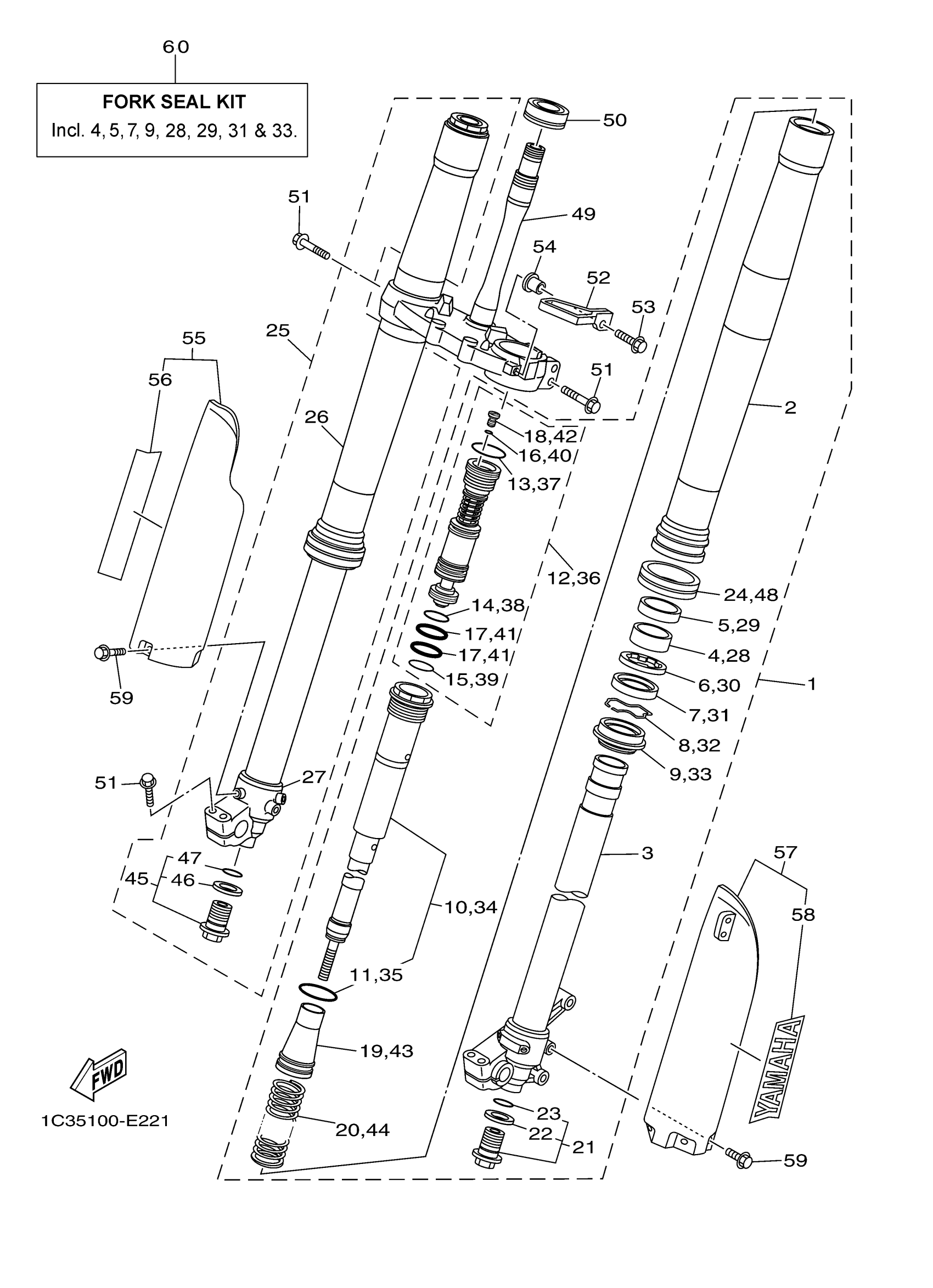

Yamaha YZ125W1 (YZ125) 1C39 2007 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
1C3-23102-A0-00
Unavailable
2
. TUBE, OUTER (RIGHT)
1C3-23136-N0-00
Unavailable
6
WASHER, OIL SEAL
5XE-23146-L0-00
Unavailable
10
. CYLINDER COMP, FRONT FORK
1C3-23170-R0-00
Unavailable
12
. VALVE COMP
1C3-2316A-N0-00
Unavailable
16
O-RING
1C3-23188-R1-00
Unavailable
17
O-RING
1W4-23114-L0-00
Unavailable
18
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
19
SEAT, SPRING UPPER
1C3-23142-L0-00
Unavailable
20
SPRING, FRONT FORK
1C3-23141-N1-00
Unavailable
21
BOLT, CAP
1C3-23111-L1-00
Unavailable
22
GASKET
2HH-23158-L0-00
Unavailable
23
GASKET
276-23114-01-00
Unavailable
24
PROTECTER GUIDE COMP., 1
1C3-2314F-M0-00
Unavailable
25
FRONT FORK ASSY (R.H)
1C3-23103-A0-00
Unavailable
26
. TUBE, OUTER (RIGHT)
1C3-23136-N0-00
Unavailable
27
.. INNER TUBE COMP 1
5XC-23110-L0-00
Unavailable
30
WASHER, OIL SEAL
5XE-23146-L0-00
Unavailable
34
. CYLINDER COMP, FRONT FORK
1C3-23170-R0-00
Unavailable
36
. VALVE COMP
1C3-2316A-N0-00
Unavailable
40
O-RING
1C3-23188-R1-00
Unavailable
41
O-RING
1W4-23114-L0-00
Unavailable
42
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
43
SEAT, SPRING UPPER
1C3-23142-L0-00
Unavailable
44
SPRING, FRONT FORK
1C3-23141-N1-00
Unavailable
45
BOLT, CAP
1C3-23111-L1-00
Unavailable
46
GASKET
2HH-23158-L0-00
Unavailable
47
GASKET
276-23114-01-00
Unavailable
48
PROTECTER GUIDE COMP., 1
1C3-2314F-M0-00
Unavailable
49
UNDER BRACKET COMP.
1C3-23340-M0-00
Unavailable
50
BEARING(4SR)
93332-00081-00
Unavailable
51
BOLT, FLANGE
90105-08134-00
Unavailable
52
GUIDE, CABLE
5XE-23389-00-00
Unavailable
53
BOLT, FLANGE
90105-06107-00
Unavailable
54
COLLAR
90387-06104-00
Unavailable
55
PROTECTER COMP., 2
1C3-2314J-10-00
Unavailable
56
EMBLEM, YAMAHA
4XL-2153A-11-00
Unavailable
57
Protecter Comp. 1
1C3-2314H-11-00
Unavailable
58
EMBLEM, YAMAHA
4XL-2153A-11-00
Unavailable
59
BOLT 2
3SP-23356-L0-00
Unavailable
60
FORK SEAL KIT (TWO FORKS)
1C3-W003B-00-00
Unavailable
