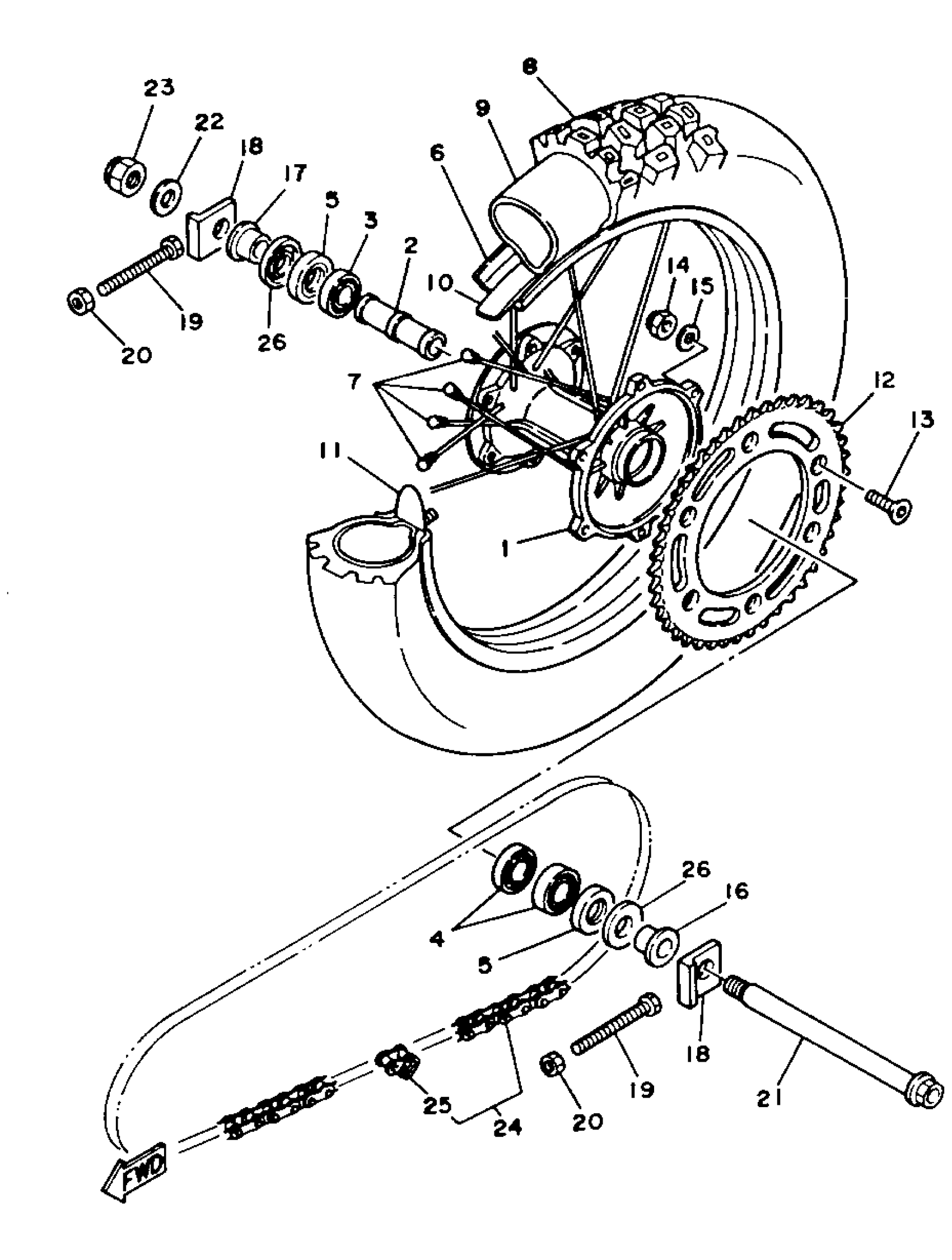

Yamaha YZ125W (YZ125W) 1989 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

2VN-25311-00-98

Unavailable

2

SPACER, BEARING

3JD-25317-01-00

Unavailable

3

BEARING(8AB)

93306-00444-00

$41.99

4

BEARING(3BN)

93306-00438-00

$37.99

5

OIL SEAL(39X)

93106-28023-00

$12.49

6

RIM (1.85-19)

94418-19485-00

Unavailable

7

SPOKE SET, REAR

3JD-25304-00-00

Unavailable

8

TIRE (057M 100/90-19 M52)

94110-190U8-00

Unavailable

9

TUBE(42X)

94210-19222-00

$49.99

10

BAND, RIM

94327-19111-00

$14.99

10

BAND, RIM

94327-19111-00

$14.99

11

SPACER, BEAD

2X3-25394-00-00

Unavailable

12

SPROCKET, driven (44T)

[39-W2544-40-00

Unavailable

12

SPROCKET, driven (45T)

[39-W2544-50-00

Unavailable

12

SPROCKET, driven (46T)

[39-W2544-60-00

Unavailable

12

SPROCKET, driven (48T)

[3R-42544-80-1X

Unavailable

12

SPROCKET, DRIVEN (49T) (2HH-25449-00-00)

3R4-25449-01-XX

Unavailable

12

SPROCKET, driven (50T)

[3R-42545-00-1X

Unavailable

12

SPROCKET, DRIVEN (51T)

3R4-25451-01-XX

Unavailable

12

SPROCKET, driven (52T)

[3R-42545-20-1X

Unavailable

13

BOLT(3RB)

90109-081G1-00

Unavailable

14

NUT, U

95617-08100-00

Unavailable

15

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

16

COLLAR

90387-2000B-00

Unavailable

17

COLLAR

90387-202V9-00

Unavailable

18

PULLER, CHAIN 1

3SP-25388-00-00

Unavailable

19

BOLT

90101-08060-00

Unavailable

20

. NUT

95380-08700-00

Unavailable

21

AXLE, WHEEL

3JD-25381-01-00

Unavailable

22

WASHER(64J)

92995-18600-00

Unavailable

23

NUT, SELF-LOCKING

90185-18009-00

Unavailable

24

CHAIN

9Y581-92113-00

Unavailable

25

JOINT, CHAIN

94681-68001-00

Unavailable

26

COVER, HUB DUST

4V4-25367-00-00

Unavailable
