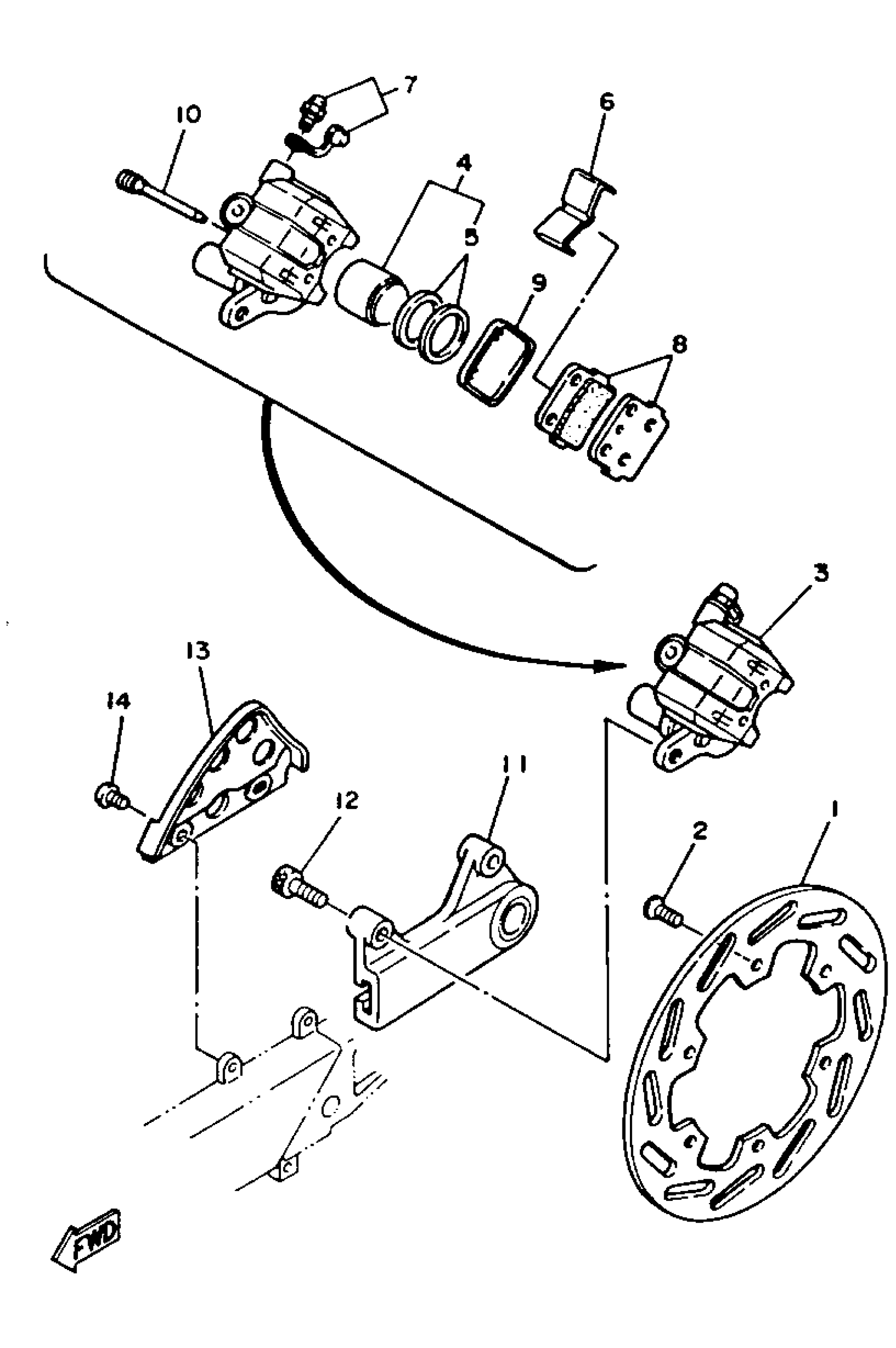

Yamaha YZ125W (YZ125W) 1989 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

4MX-2582W-00-00

Unavailable

SCREW, COUNTERSUNK

90151-06080-00

$2.18

CALIPER ASSEMBLY REAR (3JD-2580W-00)

3JD-2580W-01-00

Unavailable

. PISTON ASSEMBLY, CALIPR

3JD-W0057-50-00

Unavailable

CALIPER SEAL KIT

3JD-25803-50-00

$16.49

SUPPORT, PAD

1UY-25919-51-00

$22.99

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

BRAKE PAD KIT,REAR

3JD-W0046-01-00

Unavailable

SHIM, CALIPER

3GD-25827-00-00

Unavailable

PIN, PAD

3GD-25933-00-00

$28.99

SUPPORT BRKT.ASSEMBLYASSEMBLY

3JD-25920-00-00

Unavailable

BOLT,SOCKET

91314-08020-00

$8.49

PROTECTOR

3JD-27491-00-00

Unavailable

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28
