Description

Price

1

HUB, FRONT

2HH-25111-00-98

Unavailable

2

BEARING

93306-20205-00

$38.99

3

SPACER (34L)

90560-15240-00

Unavailable

4

OIL SEAL (23X)

93102-20281-00

$14.99

5

RIM (1.60-21)

94416-21453-00

Unavailable

6

SPOKE SET, FRONT

1LX-25104-00-00

Unavailable

7

TIRE (051M 80/100-21 M51)

94110-210U0-00

Unavailable

8

TUBE 90190-21

94209-21229-00

Unavailable

8

TUBE, FRONT (2A6)

94227-21123-00

$47.99

9

BAND, RIM (2A6)

94330-21084-00

$16.99

9

BAND, RIM (2A6)

94330-21084-00

$16.99

10

SPACER, BEAD

5X2-25394-00-00

$39.99

11

AXLE, WHEEL

4GY-25181-00-00

Unavailable

12

COLLAR

90387-152V1-00

Unavailable

13

COVER, HUB DUST

322-25118-00-00

$17.49

14

COLLAR

90387-156R7-00

Unavailable

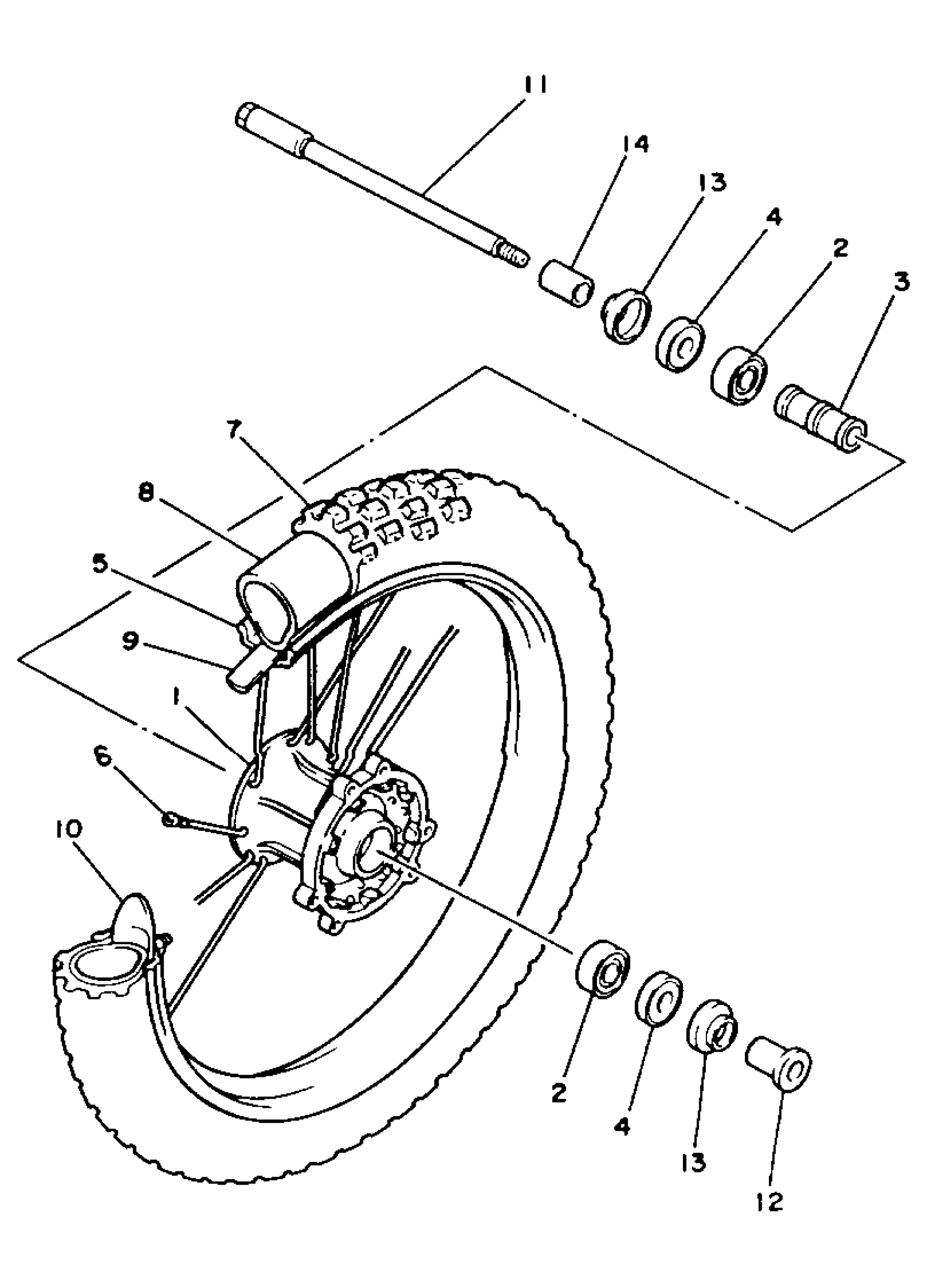

Yamaha YZ125W (YZ125W) 1989 FRONT WHEEL Diagram

HUB, FRONT

BEARING

SPACER (34L)

OIL SEAL (23X)

RIM (1.60-21)

SPOKE SET, FRONT

TIRE (051M 80/100-21 M51)

TUBE 90190-21

TUBE, FRONT (2A6)

BAND, RIM (2A6)

BAND, RIM (2A6)

SPACER, BEAD

AXLE, WHEEL

COLLAR

COVER, HUB DUST

COLLAR
