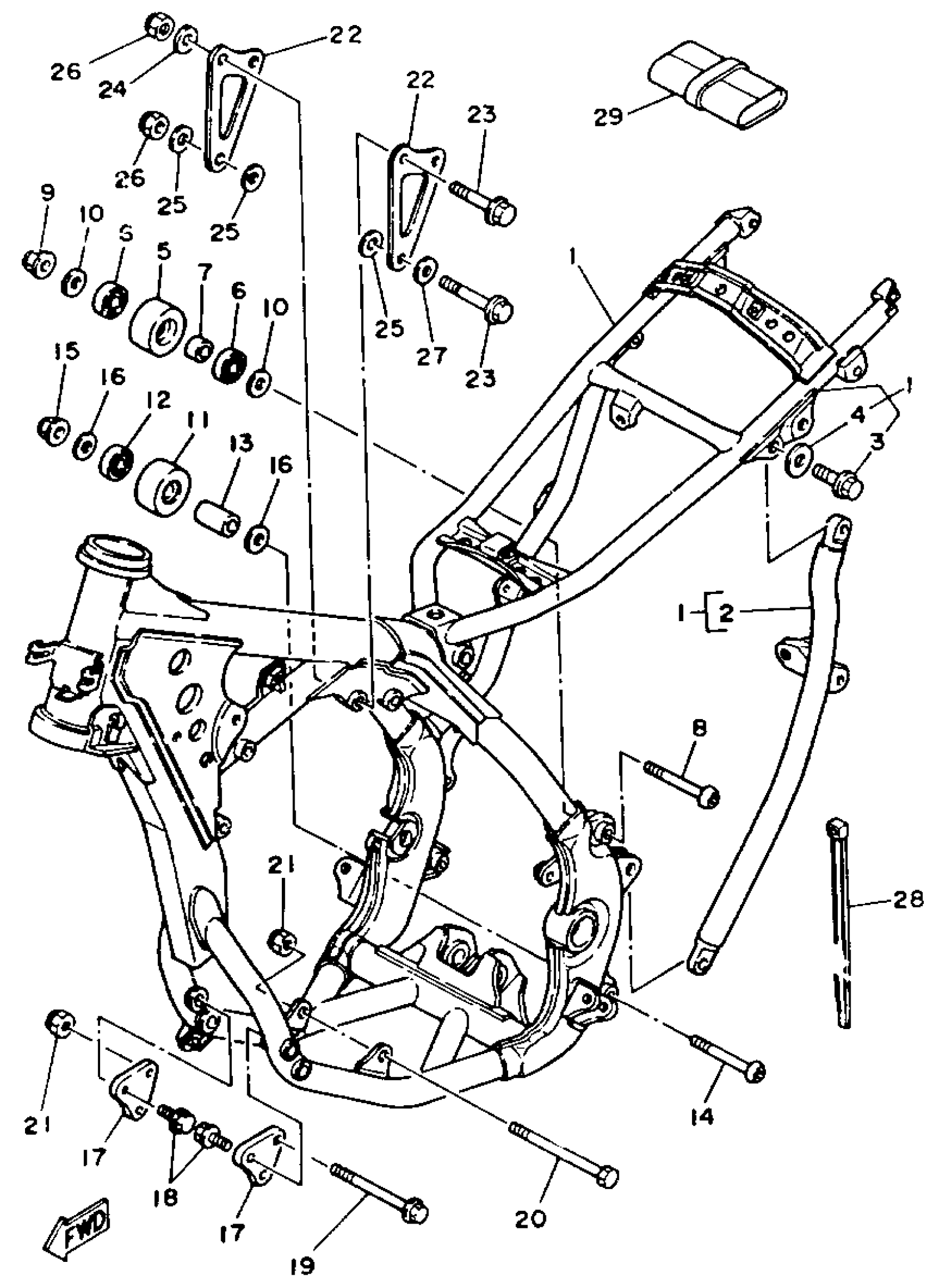

Yamaha YZ125W (YZ125W) 1989 FRAME Diagram

#

Description
Price

1

FRAME COMP

3JD-21110-00-UJ

Unavailable

2

. BACK, STAY (LH)

3JD-21123-01-UJ

Unavailable

3

BOLT, HEXAGON (3L6)

90101-08461-00

$5.60

4

WASHER, PLATE (7R4)

90201-080E2-00

$4.73

5

TENSIONER

3JD-22178-00-00

Unavailable

6

BEARING (3X3)

93300-60804-00

$12.49

7

COLLAR(1HX)

90387-087K5-00

$10.49

8

BOLT, BUTTON

92017-08070-00

$7.49

9

NUT, SELF-LOCKING

90185-08169-00

$8.49

10

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

11

TENSIONER

3JD-22178-20-00

$43.99

12

BEARING (3X3)

93300-60804-00

$12.49

13

COLLAR(1NL)

90387-086N4-00

$9.49

14

BOLT, BUTTON

92017-08070-00

$7.49

15

NUT, SELF-LOCKING

90185-08169-00

$8.49

16

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

17

BRACKET, ENGINE 2

1LX-21419-01-00

Unavailable

18

BOLT, FLANGE

95817-08040-00

Unavailable

19

BOLT, FLANGE(8BT)

95817-08095-00

Unavailable

20

BOLT

90109-08386-00

Unavailable

21

NUT, SELF-LOCKING

90185-08169-00

$8.49

22

BRACKET, REAR UPR 1

1LX-21425-00-00

Unavailable

23

BOLT, FLANGE

95817-08055-00

Unavailable

24

WASHER 6464313202

90202-08022-00

Unavailable

25

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

26

NUT, SELF-LOCKING

90185-08169-00

$8.49

27

WASHER, PLATE(J42)

90201-084K3-00

Unavailable

28

BAND

1UA-82591-00-00

Unavailable

29

TOOL KIT (1LU-28100-00)

1LX-28100-00-00

Unavailable
