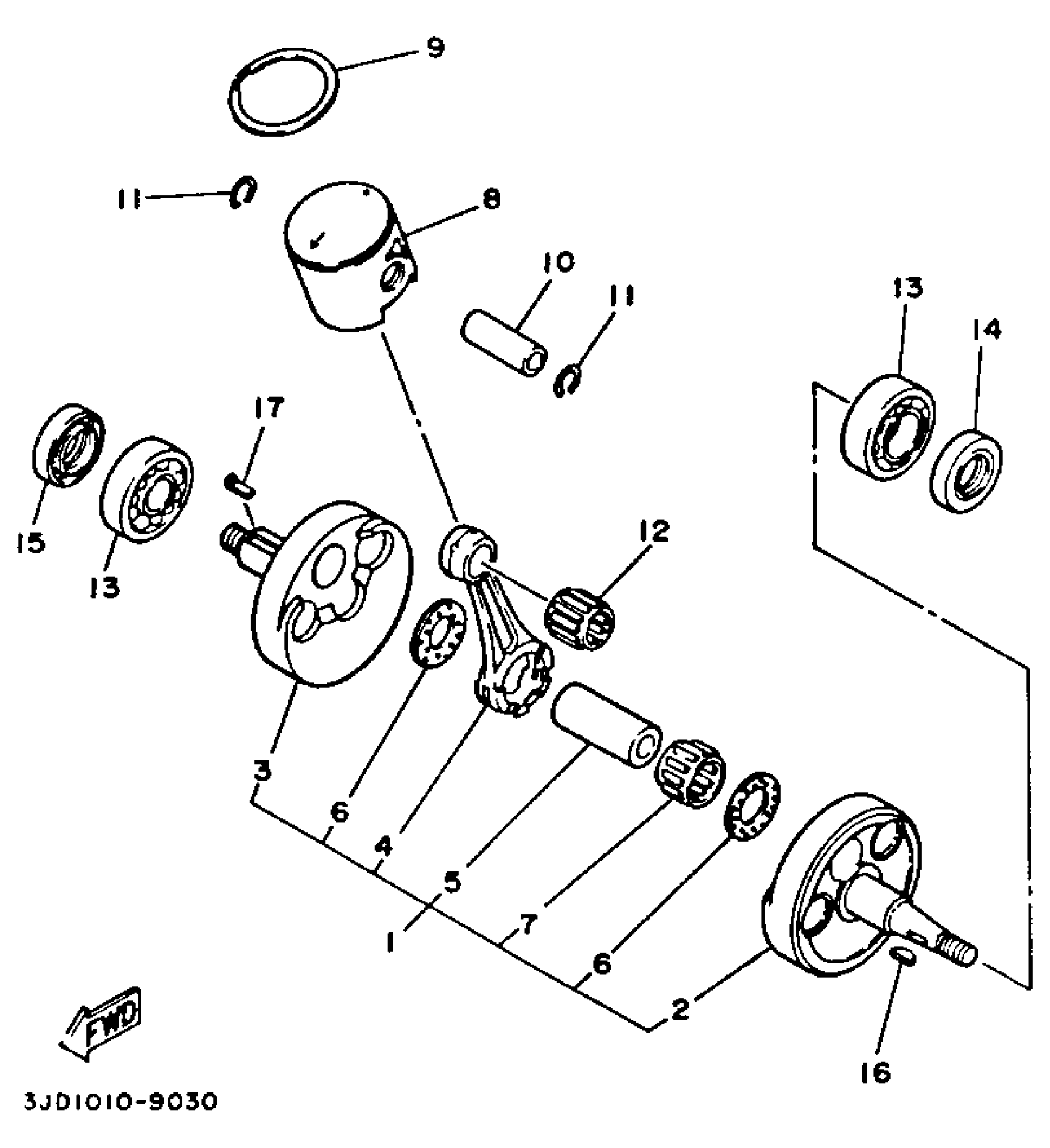

Yamaha YZ125W (YZ125W) 1989 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASS''Y

3JD-11400-00-00

Unavailable

2

. CRANK 1

3JD-11412-00-00

Unavailable

3

. CRANK 2

3JD-11422-00-00

Unavailable

4

ROD, CONNECTING

4PE-11651-02-00

Unavailable

5

PIN, CRANK 1

3JD-11681-10-00

$68.99

6

WASHER(47X)

90209-22257-00

Unavailable

7

BEARING

93310-52238-00

$74.99

8

. PISTON (STD)

3JD-11631-00-94

Unavailable

8

. PISTON (STD)

3JD-11631-00-94

Unavailable

9

RING, PISTON

5X4-11611-02-00

$34.99

10

PIN, PISTON

137-11633-10-00

$27.99

11

CIRCLIP(1AR)

93450-17129-00

$4.14

12

BEARING, NEEDLE (24X)

93310-216L2-00

$33.99

13

BEARING(1LX)

93306-37204-00

$47.99

14

OIL SEAL(1LX)

93102-22363-00

$11.49

15

OIL SEAL(3KX)

93103-32171-00

Unavailable

16

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

17

PIN, PISTON

137-11633-10-00

$27.99

17

ROD, CONNECTING

4PE-11651-02-00

Unavailable

17

PISTON ASS''Y (STD)

3JD-11630-00-00

Unavailable

17

. PISTON (STD)

3JD-11631-00-94

Unavailable

17

CONNECTING ROD ASSEMBLY

3JD-11650-00-00

Unavailable

17

PIN, CRANK 1

3JD-11681-10-00

$68.99

17

RING, PISTON

5X4-11611-02-00

$34.99

17

WASHER(47X)

90209-22257-00

Unavailable

17

KEY, STRAIGHT

90282-05038-00

Unavailable

17

BEARING, NEEDLE (24X)

93310-216L2-00

$33.99

17

BEARING

93310-52238-00

$74.99

17

CIRCLIP(1AR)

93450-17129-00

$4.14
