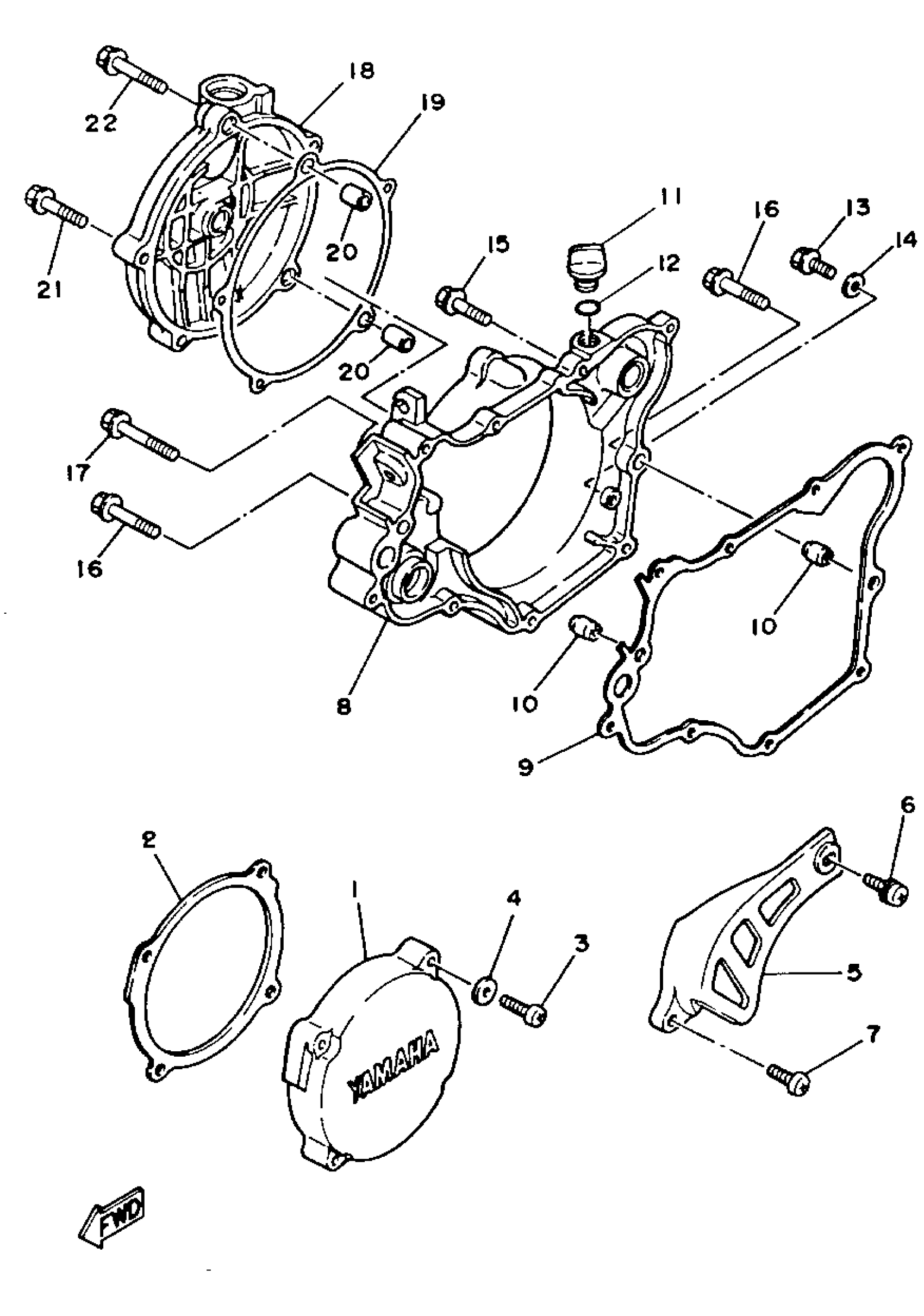

Yamaha YZ125W (YZ125W) 1989 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2VN-15411-00-00

Unavailable

2

GASKET,CRCS COVER

1LX-15451-11-00

Unavailable

3

SCREW, PAN

98507-06035-00

$8.49

4

WASHER(6TA)

92907-06600-00

$2.72

5

COVER, CRANKCASE 2 (2VN-15421-01-00)

2VN-15421-01-00

Unavailable

6

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

$9.49

7

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

8

COVER, CRANKCASE 3

3JD-15431-00-00

Unavailable

9

GASKET, CRANKCASE COVER 3

1LX-15462-10-00

$25.99

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

12

O-RING (26H)

93210-14579-00

$7.49

13

BOLT, SMALL FLANGE

95027-06008-00

$7.99

14

GASKET 838153840000

90430-06016-00

$8.49

15

BOLT, SMALL FLANGE

95027-06025-00

$4.16

16

BOLT, SMALL FLANGE

95027-06035-00

Unavailable

17

BOLT, SMALL FLANGE

95027-06045-00

Unavailable

18

COVER, generator (3JD-15415-01-00)

3XD-15415-00-00

Unavailable

19

GASKET, CARBURETOR COVER

3JD-15463-10-00

Unavailable

20

PIN, DOWEL(3VD)

99530-10114-00

$2.55

21

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

22

BOLT, SMALL FLANGE

95027-06040-00

Unavailable
