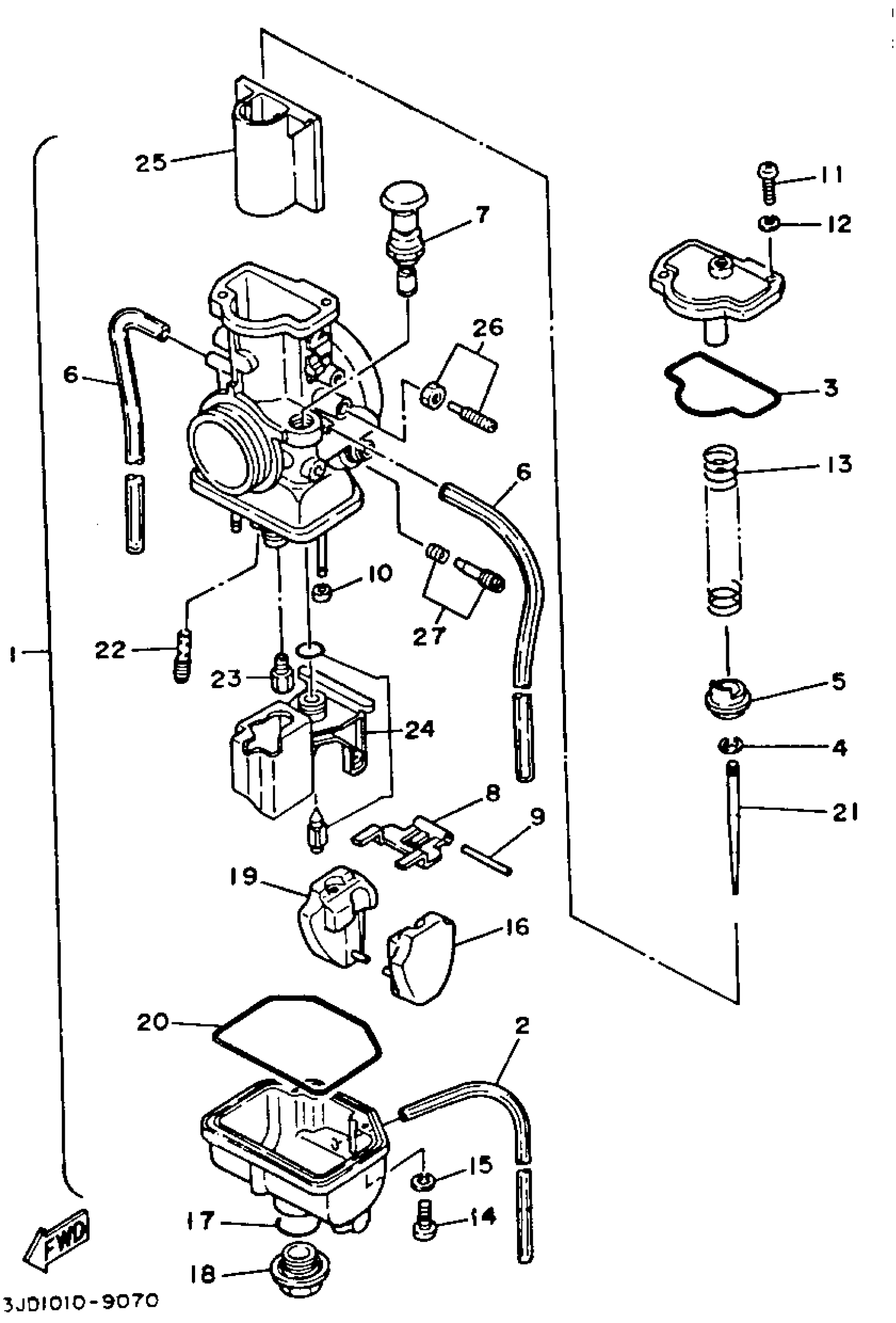

Yamaha YZ125W (YZ125W) 1989 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASS''Y 1

3JD-14101-00-00

Unavailable

2

PIPE 1

3XV-14348-20-00

$20.99

3

O-RING

3JD-14147-00-00

$11.99

4

CLIP

256-14919-00-00

$6.99

5

. RING

3JD-14194-00-00

Unavailable

6

PIPE, OVER FLOW

2J2-14196-00-00

$35.99

7

PLUNGER, STARTER

3JE-14171-00-00

$72.99

8

. ARM, FLOAT

363-14187-00-00

Unavailable

9

PIN, FLOAT

353-14186-00-00

$7.99

10

CAP

214-14118-00-00

Unavailable

11

SCREW, PAN HEAD

98511-04012-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

. SPRING, THROTTLE VALVE

3JD-14131-00-00

Unavailable

14

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

15

WASHER, SPRING

92990-03100-00

$8.49

16

. FLOAT

3JD-14185-00-00

Unavailable

17

O-RING

3JE-14561-00-00

Unavailable

18

PLUG,SCREW

4DP-14115-00-00

Unavailable

19

. FLOAT

3JE-14185-00-00

Unavailable

20

O-RING

3JE-14147-00-00

Unavailable

21

. NEEDLE (J8-6EN15-55)

3JD-14116-A1-00

Unavailable

21

. NEEDLE, J8-6EN15-53 (J8-6EN15-53)

3JD-14116-A2-00

Unavailable

21

. NEEDLE (J8-6EN15-54)

3JD-14116-A3-00

Unavailable

21

. NEEDLE (J8-6EN15-56)

3JD-14116-A4-00

Unavailable

21

. NEEDLE (J8-6EN15-57)

3JD-14116-A5-00

Unavailable

22

JET, PILOT (# 17.5)

193-14142-17-00

Unavailable

22

JET, PILOT (# 20)

193-14142-20-00

Unavailable

22

JET, PILOT (# 25)

193-14142-25-A0

Unavailable

22

JET, PIL0T (# 30)

193-14142-30-A0

Unavailable

23

JET, MAIN #260

137-14143-52-00

Unavailable

23

JET, MAIN #270

137-14143-54-A1

Unavailable

23

JET, MAIN #280

137-14143-56-A0

Unavailable

23

JET, MAIN #290

137-14143-58-A1

Unavailable

23

JET, MAIN #300

137-14143-60-A0

Unavailable

24

NEEDLE VALVE SET

3JD-14107-35-00

Unavailable

25

. VALVE, THROTTLE (CA 50)

3JD-14112-50-00

Unavailable

25

. VALVE, THROTTLE (CA 55)

3JD-14112-55-00

Unavailable

25

. VALVE, THROTTLE (CA 60)

3JD-14112-60-00

Unavailable

26

THROTTLE SCREW SET

3JD-14103-00-00

Unavailable

27

AIR SCREW SET

4GL-14104-00-00

Unavailable
