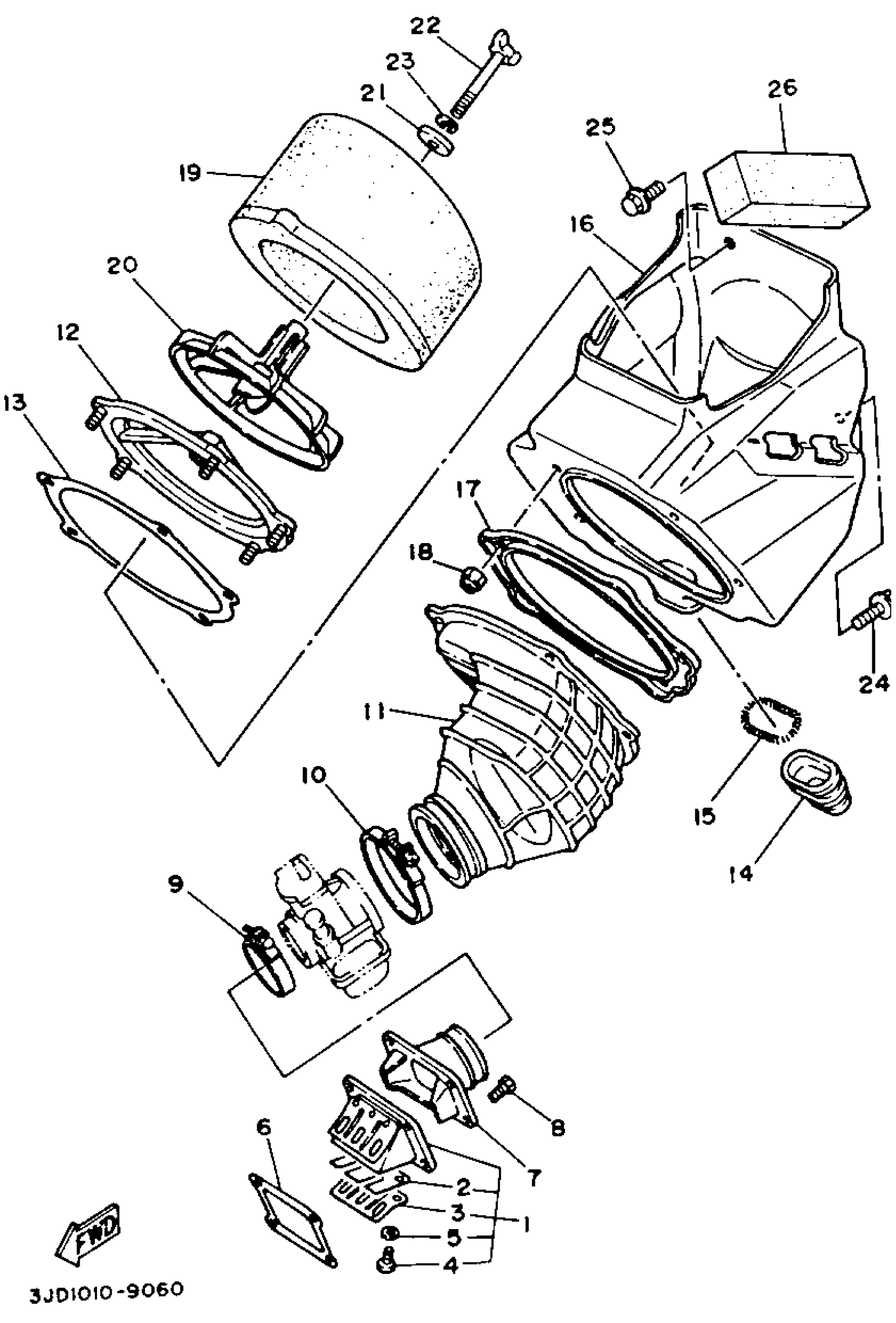

Yamaha YZ125W (YZ125W) 1989 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

2VN-13610-00-00

Unavailable

2

. REED, VALVE

1RX-13613-00-00

Unavailable

3

STOPPER, REED VALVE

2VN-13616-00-00

$30.99

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

80L-13621-01-00

$10.99

7

JOINT, carburetor

3JD-13565-00-00

Unavailable

8

. BOLT, FLANGE

95027-06020-00

Unavailable

9

CLAMP, HOSE

90460-51109-00

Unavailable

10

CLAMP, HOSE (29L)

90460-68230-00

$16.99

11

JOINT, AIR CLNR 1

3JD-14453-00-00

Unavailable

12

HOLDER,GUIDE

3JD-14459-01-00

Unavailable

13

SEAL

3JD-14462-00-00

$35.99

14

SEAL

39K-14457-00-00

Unavailable

15

SPRING, COMPRESSION

90504-03033-00

Unavailable

16

AIR CLEANER CASE COMP

3JD-W1441-00-00

Unavailable

17

PLATE

5MV-14477-00-00

Unavailable

18

NUT, U

95617-05100-00

Unavailable

19

ELEMENT, AIR CLEANER

3JD-14451-01-00

Unavailable

20

GUIDE

3JD-14458-01-00

Unavailable

21

WASHER (4H7)

90209-06096-00

Unavailable

22

BOLT, WING

90122-06005-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

25

BOLT, WITH WASHER(3JD)

90119-06185-00

Unavailable

26

ELEMENT, AIR CLEANER

3JD-14451-01-00

Unavailable
