Description

Price

1

IMPELLER SHAFT ASSY

1C3-12450-01-00

$76.99

2

GEAR

1C3-12453-10-00

Unavailable

3

PIN,DOWEL (603)

93603-12007-00

$2.55

4

WASHER, PLATE (5F7)

90201-08512-00

$8.49

5

COLLAR

90387-08032-00

$8.49

6

CIRCLIP

93440-07182-00

$3.78

7

OIL SEAL

93102-08004-00

$9.49

8

OIL SEAL (30X)

93102-08307-00

$7.49

9

BEARING

93300-60801-00

$21.99

9

BEARING

93300-60801-00

$21.99

10

COVER, HOUSING

1C3-12422-00-00

$58.99

11

GASKET 256113960000

90430-06014-00

Unavailable

12

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

13

GASKET, HOUSING COVER 2

1C3-12428-00-00

$7.99

14

PIN,DOWEL (603)

93604-10011-00

$8.49

15

BOLT, SMALL FLANGE

95027-06065-00

Unavailable

16

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

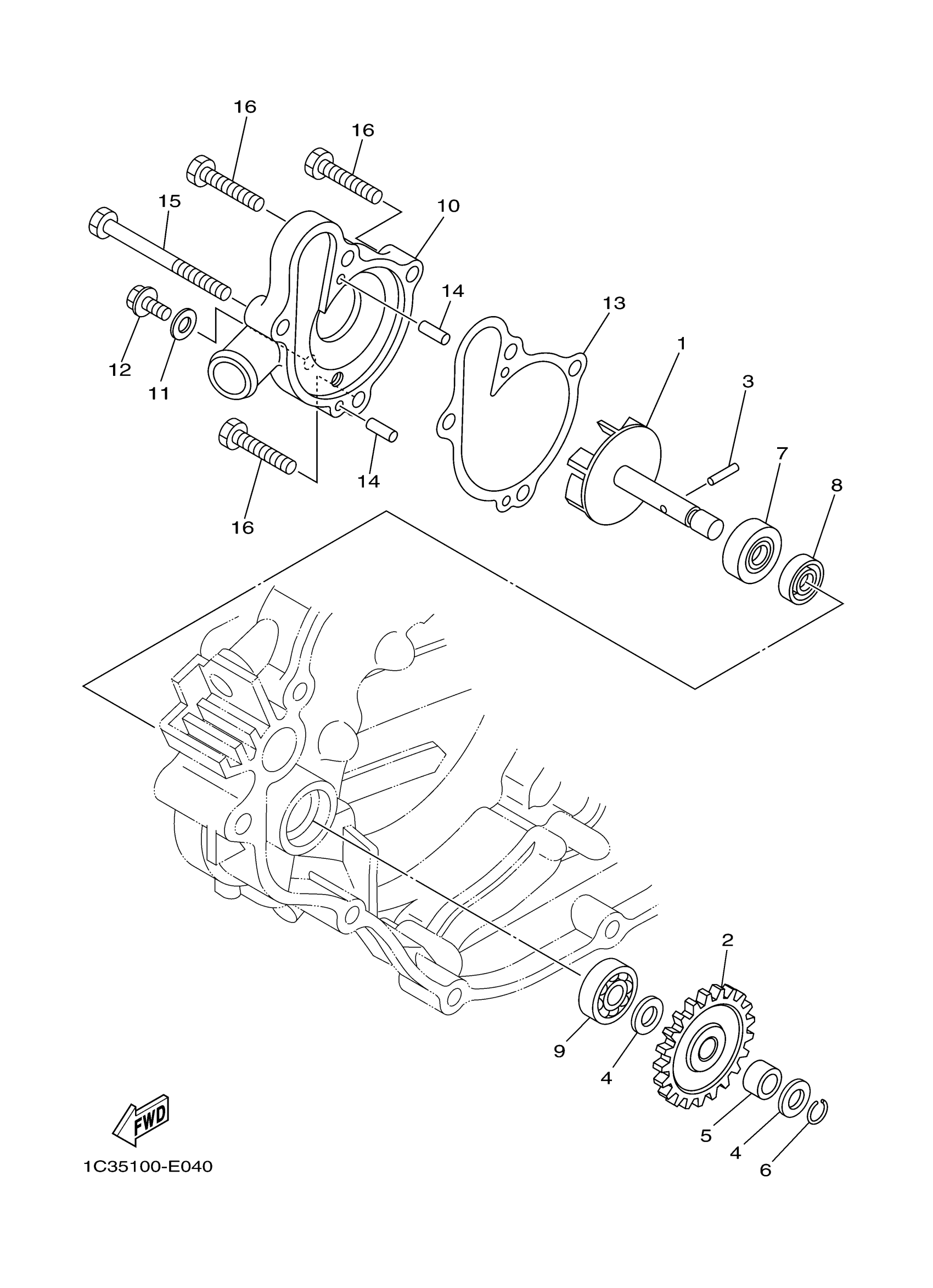

Yamaha YZ125V (YZ125) 1C35 2006 WATER PUMP Diagram

IMPELLER SHAFT ASSY

GEAR

PIN,DOWEL (603)

WASHER, PLATE (5F7)

COLLAR

CIRCLIP

OIL SEAL

OIL SEAL (30X)

BEARING

BEARING

COVER, HOUSING

GASKET 256113960000

BOLT, FLANGE(4MY)

GASKET, HOUSING COVER 2

PIN,DOWEL (603)

BOLT, SMALL FLANGE

BOLT, SMALL FLANGE
