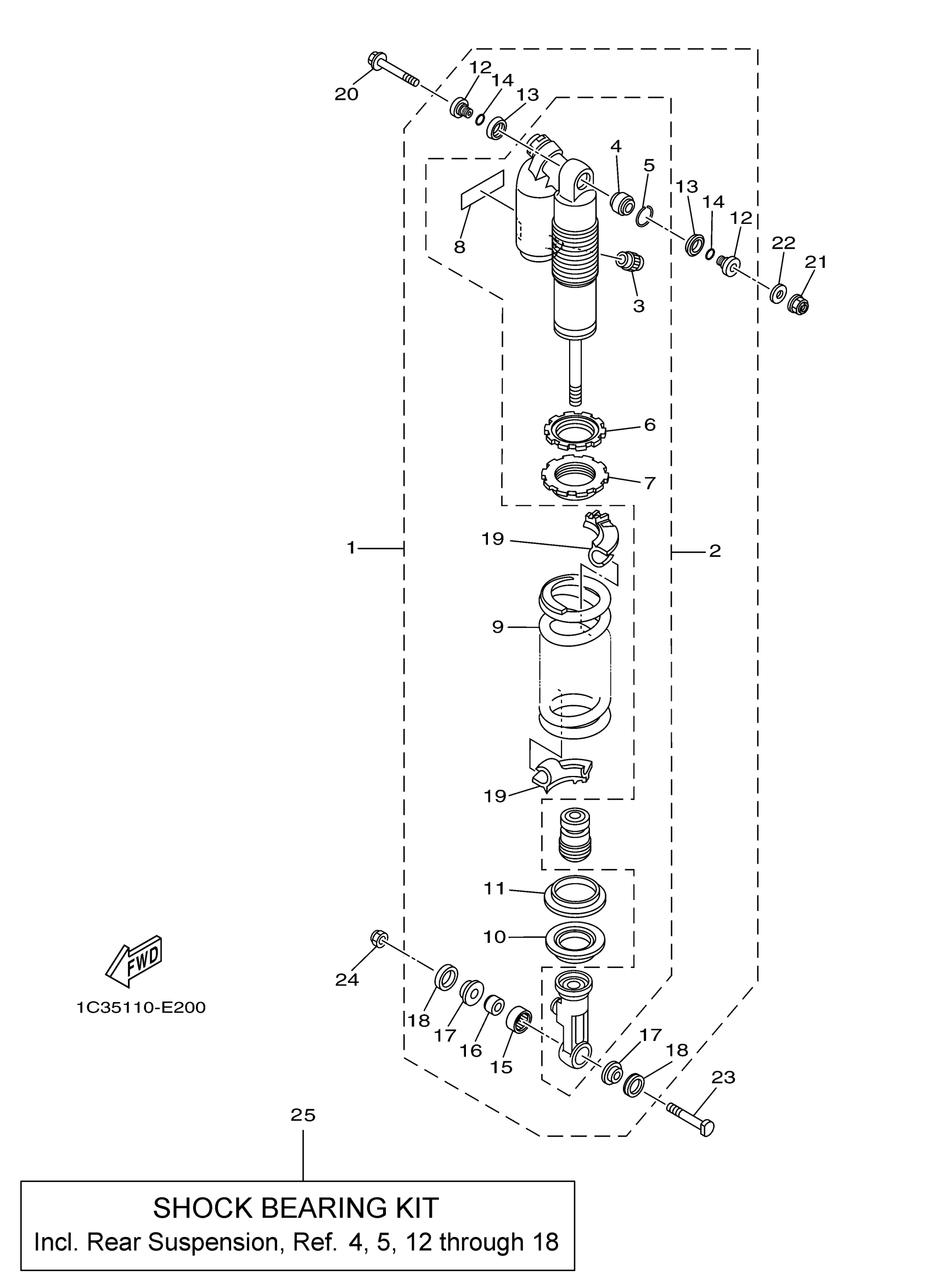

Yamaha YZ125V (YZ125) 1C35 2006 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

1C3-22200-50-00

Unavailable

2

. DAMPER SUB ASSY

1C3-22201-50-00

Unavailable

3

CAP, AIR VALVE

509-23184-L0-00

$6.99

4

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

5

CIRCLIP

5DH-23183-00-00

$5.49

6

GUIDE, SPRING 3

3SP-22234-00-00

$43.99

7

SEAT, SPRING UPPER

3SP-22213-00-00

$46.99

8

LABEL, WARNING

4AA-22259-80-00

$13.49

9

SPRING

5UN-22212-20-00

$238.99

10

GUIDE, SPRING 1

1C3-22214-50-00

$38.99

11

GUIDE, SPRING 2

5MV-22224-00-00

$24.99

12

COLLAR, DISTANCE

1C3-22253-50-00

$45.99

13

SEAL, DUST

3JE-22475-00-00

$13.49

14

SEAL, RING

4EW-22474-00-00

$6.99

15

BEARING

5UN-22176-00-00

$32.99

16

BUSH

5MV-22184-00-00

Unavailable

17

COLLAR, DISTANCE

5MV-22253-00-00

Unavailable

18

SEAL, DUST

5NY-22475-00-00

Unavailable

19

SPRING SEAT

1C3-22565-00-00

Unavailable

20

BOLT 2

5XE-22242-01-00

Unavailable

21

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

22

WASHER, PLAIN(3BM)

92907-10200-00

Unavailable

23

BOLT 1

5NY-22241-00-00

Unavailable

24

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

25

SWING ARM PIVOT BEARING KIT

1C3-W002G-00-00

Unavailable
