Description

Price

1

RADIATOR ASSY

1C3-1240A-00-00

$203.99

2

DAMPER, RADIATOR

1C3-12465-00-00

$6.99

3

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

4

CLIP

90467-090A2-00

$4.41

5

RADIATOR COMP

1C3-12461-00-00

$203.99

6

CAP, RADIATOR

4FL-12462-00-00

$62.99

7

DAMPER, RADIATOR

1C3-12465-00-00

$6.99

8

PIPE 1

1C3-12481-00-00

$17.49

9

PIPE 2

1C3-12482-00-00

$7.99

10

PIPE 3

1C3-12483-00-00

$6.99

11

PIPE 4

1C3-12484-00-00

$20.99

12

HOSE CLAMP ASSY

90450-28001-00

$14.99

13

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

14

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

15

GROMMET(3RB)

90480-15528-00

$8.49

16

COLLAR

90387-06065-00

Unavailable

17

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

18

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

19

BOLT, FLANGE

95812-06010-00

Unavailable

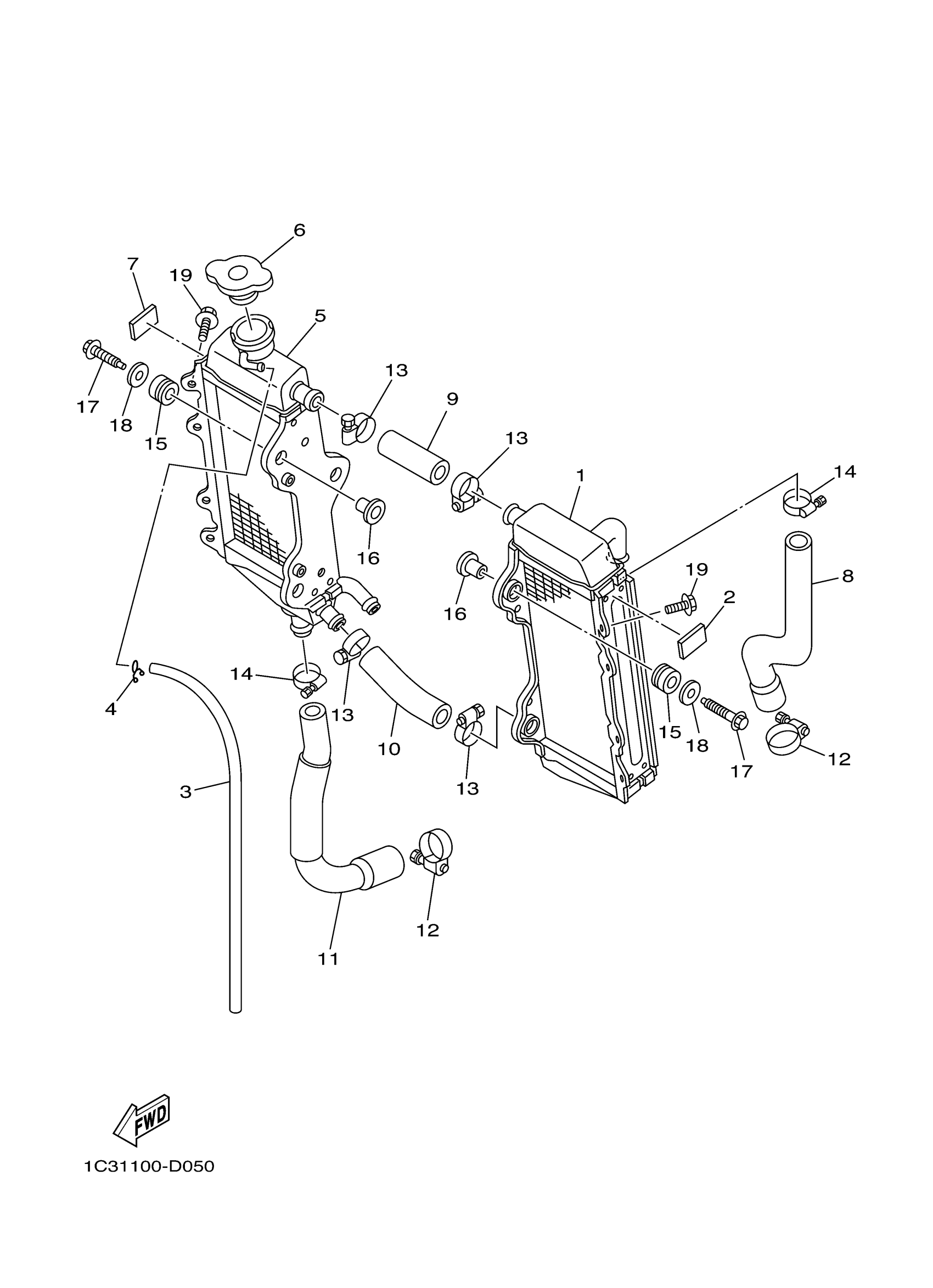

Yamaha YZ125V (YZ125) 1C35 2006 RADIATOR HOSE Diagram

RADIATOR ASSY

DAMPER, RADIATOR

TUBE, FLEXIBLE VINYL(8AK)

CLIP

RADIATOR COMP

CAP, RADIATOR

DAMPER, RADIATOR

PIPE 1

PIPE 2

PIPE 3

PIPE 4

HOSE CLAMP ASSY

HOSE CLAMP ASSY

HOSE CLAMP ASSY(64X)

GROMMET(3RB)

COLLAR

BOLT, SMALL FLANGE

WASHER, PLATE (583 REAR FENDER

BOLT, FLANGE
