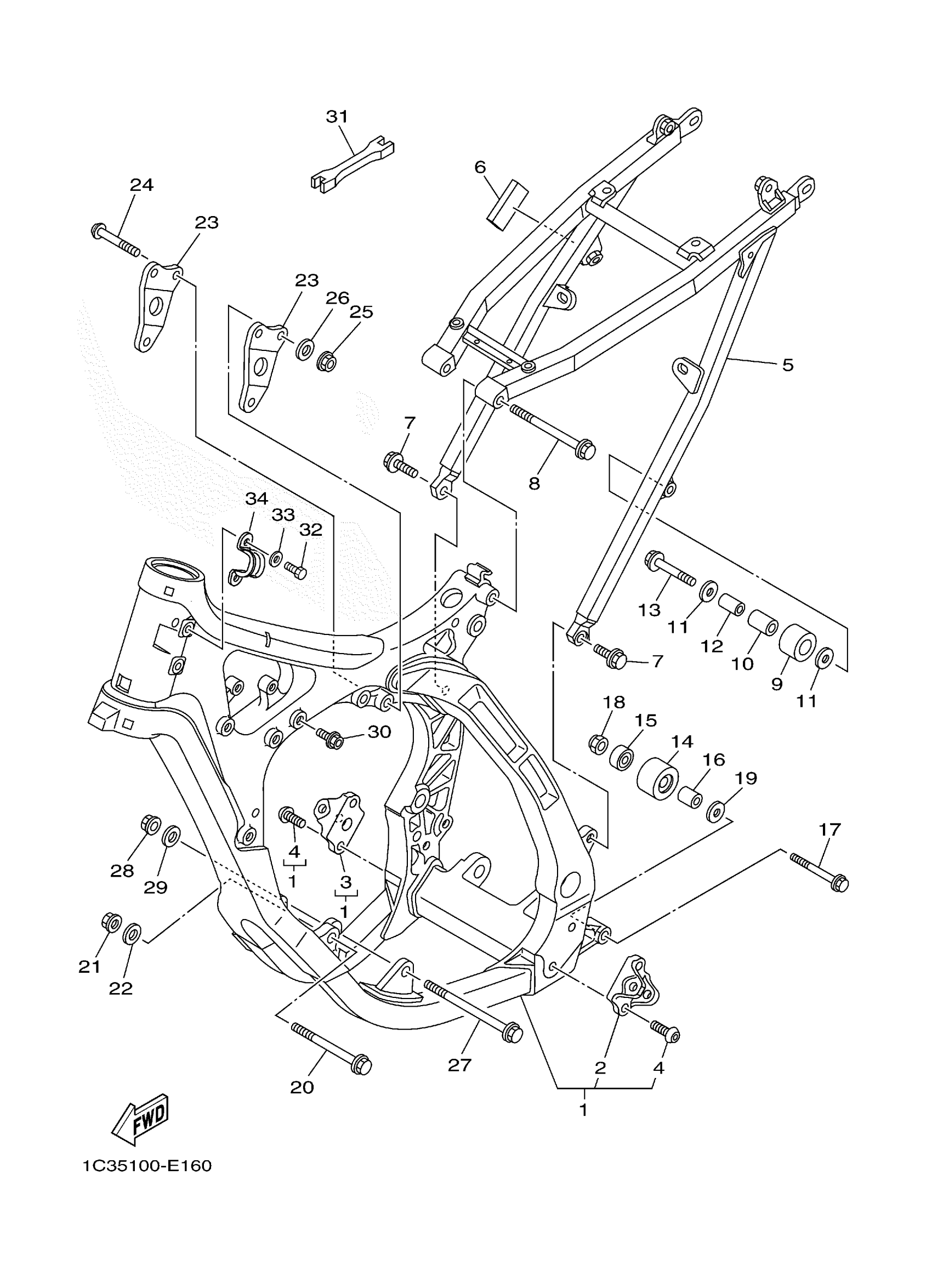

Yamaha YZ125V (YZ125) 1C35 2006 FRAME Diagram
#
Description
Price
1
FRONT FRAME COMP.
1C3-21101-50-00
Unavailable
5
REAR FRAME COMP.
1C3-21190-90-00
Unavailable
16
COLLAR(1NL)
90387-086N4-00
Unavailable
17
BOLT, FLANGE(3EB)
95024-08055-00
Unavailable
18
NUT, U
95617-08100-00
Unavailable
19
WASHER, PLATE
90201-08043-00
Unavailable
20
BOLT, FLANGE
90105-10080-00
Unavailable
21
NUT(4KG)
90179-10658-00
Unavailable
22
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
23
BRACKET, REAR UPPER 1
1C3-21425-00-00
Unavailable
24
BOLT
90111-08028-00
Unavailable
25
NUT(4KM)
90179-08674-00
Unavailable
26
WASHER, PLATE
90201-08055-00
Unavailable
27
BOLT, FLANGE
90105-10072-00
Unavailable
28
NUT(4KG)
90179-10658-00
Unavailable
29
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
30
NUT
1C3-21244-20-00
Unavailable
31
WRENCH, HEXAGON
5ET-28166-10-00
Unavailable
32
BOLT(4GV)
97017-05012-00
Unavailable
33
WASHER, PLAIN (646)
92990-05600-00
Unavailable
34
CLAMP, WIRE HARNESS 2
1C3-21336-00-00
Unavailable
